Channels (mono + stereo)
|
5 + 3
|
|
Microphone inputs
|
5 x XLR/Jack socket
|
|
Auxiliaries (FX, AUX)
|
1 Post, 1 Pre
|
|
Max. single channel output
power, dynamic headroom, IHF-A |
|
|
• into 4 Ω
|
640 W
|
|
• into 8 Ω
|
350 W
|
|
Max. dual channel output
power, dynamic headroom, IHF-A |
|
|
• into 4 Ω
|
2 x 600 W
|
|
• into 8 Ω
|
2 x 340 W
|
|
Max. single channel output
power, continuous, 1 kHz, THD = 1% |
|
|
• into 4 Ω
|
500 W
|
|
• into 8 Ω
|
280 W
|
|
Max. midband output
power, 1 kHz, THD = 1%, dual channel |
|
|
• into 4 Ω
|
2 x 450 W
|
|
• into 8 Ω
|
2 x 270 W
|
|
Rated output power, 20-20000
Hz, THD < 0.5%, one channel loaded |
|
|
• into 4 Ω
|
400 W
|
|
• into 8 Ω
|
240 W
|
|
Max. output power, Direct Drive mode
(bridge configuration), continuous, 1 kHz, THD = 1% |
|
|
• into 12 Ω
|
680 W
|
|
Max. output voltage, power amplifier, 1 kHz, no load
|
|
|
• Dual channel mode
|
52 Vrms
|
|
• Direct Drive mode
|
100 Vrms
|
|
THD, at 1 kHz, MBW = 22 kHz
|
|
|
• MIC input to master A L/R outputs, +10 dBu, typical
|
< 0.015%
|
|
• MIC input to speaker output
|
< 0.15%
|
|
DIM 30, MIC input to speaker output, 3.15 kHz, 15 kHz
|
< 0.05%
|
|
IMD-SMPTE, MIC input to speaker outputs, 60 Hz, 7 kHz
|
< 0.15%
|
|
Frequency response, -3 dB, ref. 1 kHz
|
|
|
• Any input to any Mixer output
|
15–22000 Hz
|
|
• Any input to Speaker output
|
20–22000 Hz
|
|
Crosstalk, 1 kHz
|
|
|
• Amplifier Ch1/Ch2
|
< -85 dB
|
|
• Channel to channel
|
< -78 dB
|
|
Microphone mute switch attenuation
|
> 100 dB
|
|
Channel VOL and FX/AUX send attenuation
|
> 85 dB
|
|
CMRR, MIC input, 1 kHz
|
> 80 dB
|
|
Input sensitivity, all level controls in max. position
|
|
|
• MIC
|
-65 dBu (435 μV)
|
|
• LINE (mono)
|
-45 dBu (4.35 mV)
|
|
• LINE (stereo)
|
HI: -27 dBu (34.6 mV), LO: -11 dBu (218 mV)
|
|
• CD (stereo)
|
-27 dBu (34.6 mV)
|
|
Max. level, mixing desk, input VOL down, output VOL up
|
|
Dynacord PM-502
WhatsApp For Pricing

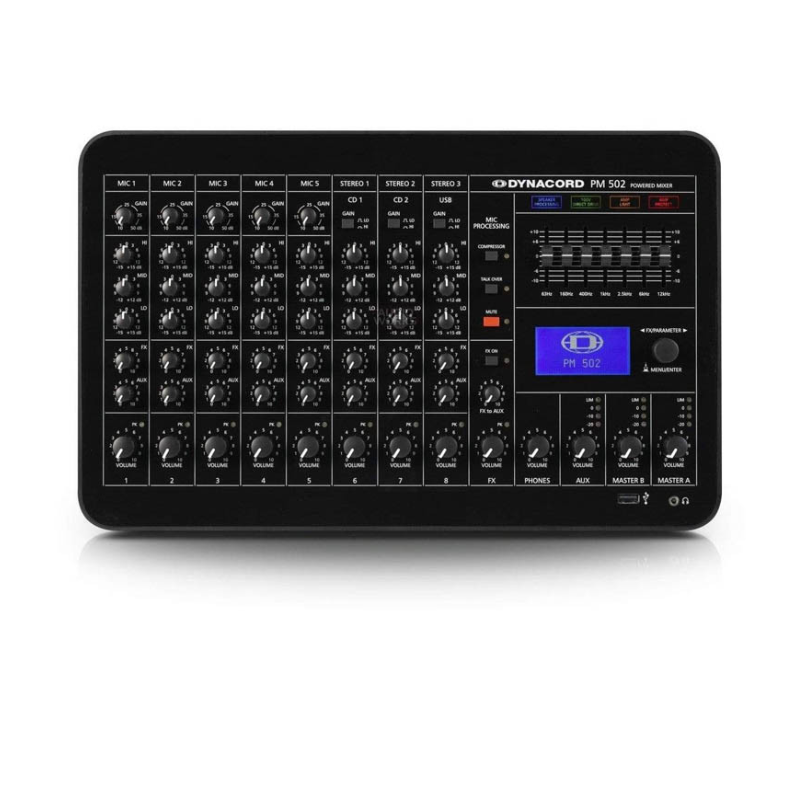

Dynacord PM-502 Powered Mixer
The PM 502’s compact design ensures portability, making it an excellent choice for musicians, DJs, and mobile recording setups. Take your audio control on the go with this mixer. With multiple input channels and connectivity options, the PM 502 accommodates various audio sources, from instruments to microphones, providing users with the flexibility to adapt to different sound setups. The user-friendly interface and intuitive controls make the PM 502 accessible to both beginners and seasoned professionals. Easily adjust levels, tones, and effects to achieve the desired sound with precision.
Built with durability in mind, the PM 502 can withstand the demands of regular use. Its robust construction ensures longevity, making it a reliable choice for those who require equipment that stands the test of time.The PM 502 delivers exceptional audio control without breaking the bank, making it a cost-effective solution for users looking to enhance their sound setup without compromising on quality.
▪ Powered Mixer with 5 Mic/Line and 3 Stereo
channels
▪ 2 x 450 W RMS at 4 Ω
▪ 32 editable HQ effect presets
▪ Onboard MP3 audio player
▪ 100V Direct Drive option
