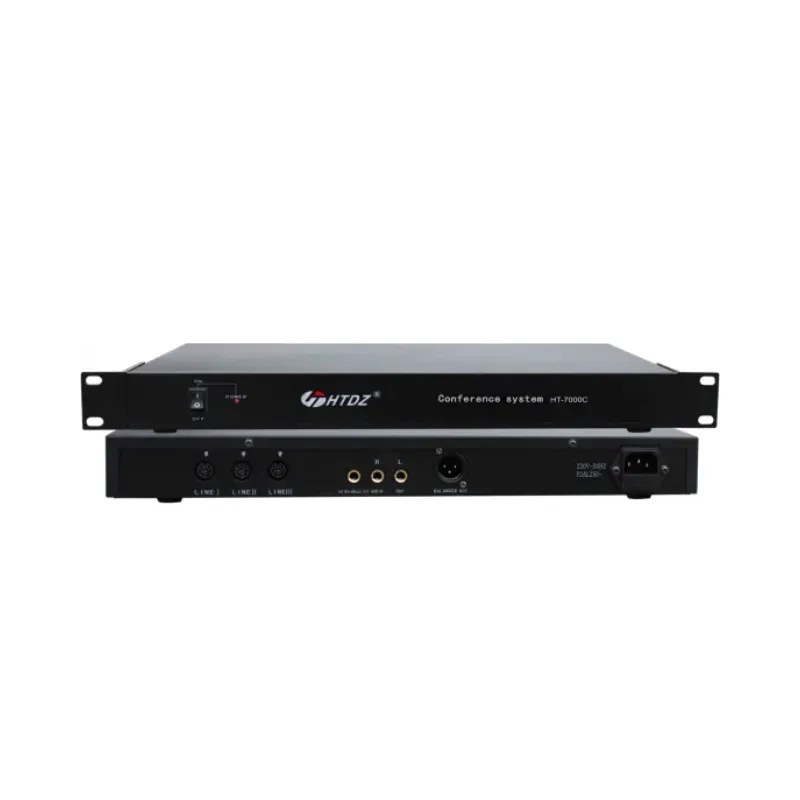

HTDZ HT-7000C Conference System Main Unit

The HB Series HT-7000C conference main unit is designed to support 70 delegate with chairman unit and it can also
be extended to support 200 microphone with use of extension power supply. It is equipped with three groups of 8PDIN plugs for system connection and up to 25 units can be connected on each circuit. The main unit is also
equipped with balanced and unbalanced circuit output socket, and both sides circuit output socket for connecting
other kinds of equipment. HT-7000C is designed in accordance to ISO and IEC914.

Share it:
Features
Related Products

Features

HTDZ HT-7000C Conference System Main Unit

Audio Output: RCA×2, XLR×1, Φ6.3×1

Dimension: 483 x 240 x 44 mm , 1U for 19” rack

Net Weight: 3.3 Kg

System Output: 8P-DIN x 3 groups

Frequency response: 100Hz-18KHz

Power supply: 230V AC 50/60Hz, 50 Watt
