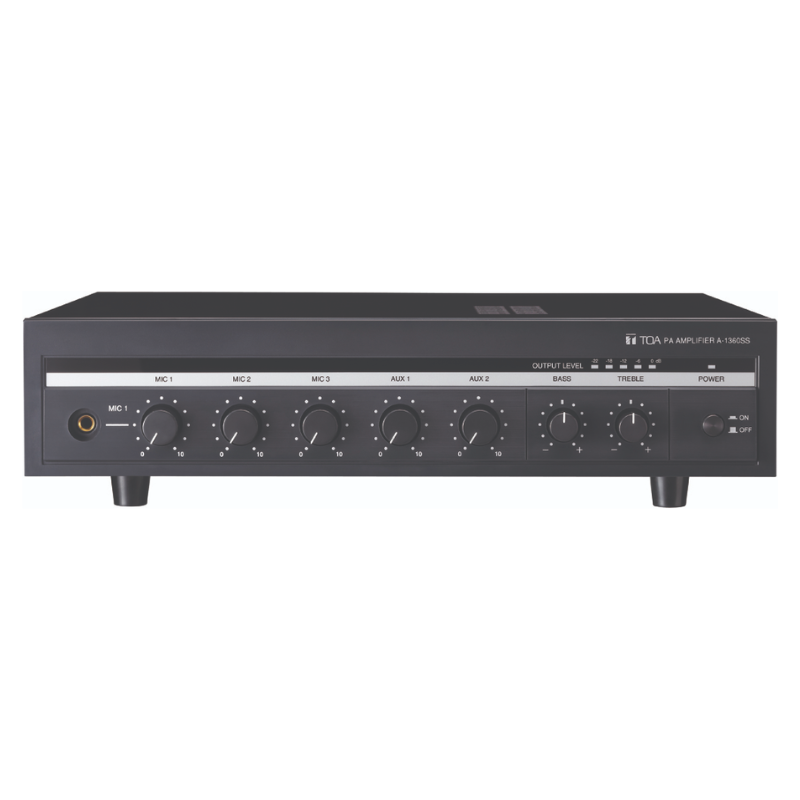

TOA A-1360SS PA Amplifier

WhatsApp For Pricing

TOA A-1360SS PA Amplifier

TOA A-1360SS is a high-performance mixer power amplifier with a 5-zone speaker selector that is suitable for public address broad where to buy valium in bali casting or background music usage. An all call button allows broad casting to be made to all 5 zones. They also come without put short circuit protection, and thermal protection circuitry to prevent failure due to over heat.

Share it:

Features

TOA A-1360SS PA Amplifier

Power Source			230 V AC, 50/60 Hz
Rated Output			360 W
Power Consumption			350 W (IEC60065)
Frequency Response			50 Hz – 18,000 Hz (±3 dB)
Distortion			Less than 0.3 % at 1 kHz, 1/3 rated power
Input	MIC 1		-52 dBV (2.5 mV), 600 Ω, unbalanced, Equivalent to phone jack
	MIC 2		-52 dBV (2.5 mV), 600 Ω, unbalanced, Equivalent to phone jack
	MIC 3		-52 dBV (2.5 mV), 600 Ω, unbalanced, Equivalent to phone jack
	AUX 1		-10 dB* (316 mV), 10 kΩ, unbalanced, RCA pin jack
	AUX 2		-10 dB* (316 mV), 10 kΩ, unbalanced, RCA pin jack
Output	Speaker Out		Speaker Outputs plug in screw connector
	Direct Line	100V	28 Ω
	Direct Line	4-16 Ω	4-16 Ω
	Speaker Selector		5-zone selector (all zones simultaneously selectable), plug in screw
	Speaker Selector		1 all call
	Pre Out		0 dBV (1.0 V), 600 Ω, unbalanced, RCA pin jack
S/N Ratio			Over 65 dB (MIC 1 – MIC 3)
S/N Ratio			Over 75 dB (AUX 1 – AUX 2)
Tone Controls			Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz
Muting			MIC 1 overrides other input signals with 0 – 40 dB attenuation by voice switch of MIC 1 input level
Indicators			Power LED, Signal LED
Finish			Front Panel: ABS resin, Color Black Case: Steel plate, Painting Black
Dimensions			420 (W) × 110 (H) × 384 (D) mm
Weight			14.6 kg
Accessory			AC Power cord (1 pc)
