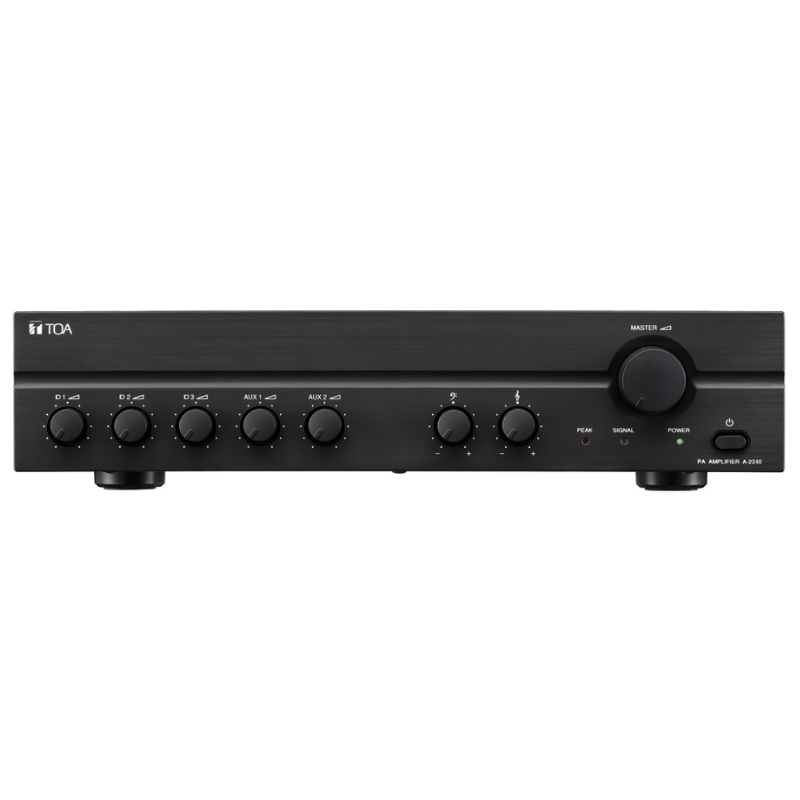

Toa A-2240 Mixer Amplifier

WhatsApp For Pricing

TOA A-2240 Amplifier

• 240 W rated output

• User-friendly front panel allows easy operation
• Excellent frequency response
• 3 electronically balanced microphone inputs, 2 AUX inputs and recording output
• Phantom power is provided to MIC 1, for supplying power to a condenser microphone
• Wide tone-control adjustment range of ±10dB for both bass and treble
• 100 V / 70 V line or 4 Ω speaker outputs
• Recording output
• 3 MIC inputs, 2 AUX inputs for tuner, cassette player or other BGM sources
• 2-unit size

Share it:
Features
Related Products

Features

Power Source 220 – 240 V AC
Rated Output 240 W
Power Consumption 238 W (EN60065)
15 A (DC operation at rated output)
Frequency Response 50 Hz – 20 kHz (±3 dB)
Distortion Under 1% at 1 kHz
Input MIC 1 – 3: -60 dB*
AUX 1
Output Speaker out: Balanced (floating)
High impedance: 42 Ω (100 V)
Low impedance: 4 Ω (31 V)
Rec out: 0 dB*
Phantom Power DC +21 V (MIC 1)
S/N Ratio Over 60 dB
Tone Control Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Muting MIC 1: Mutes other input signals by 0 – 30 dB attenuation
Indicator Power
Finish Panel: ABS resin
Case: Steel plate
Dimensions 420 (W) × 100.9 (H) × 360.3 (D) mm (16.54 × 3.97″ × 14.19)
Weight 13.2 kg (29.1 lb)
