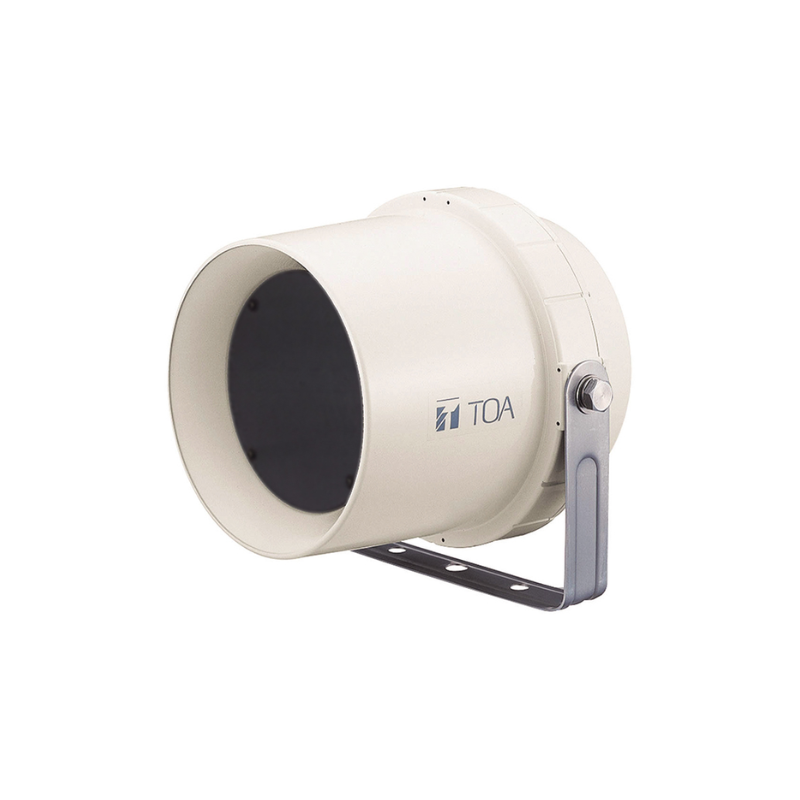

TOA CS-64 Projection Speaker

The CS-64 outdoor speaker features stainless steel hardware for all-weather durability. It is designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers. The CS-64 employs the rotary switch that facilitates impedance changes.

• Round wide-range speaker for paging, background music and tone-signaling distribution
• Exponential horn improves directivity characteristics and ensures uniform and clear sound dispersion
• Wide temperature range: -20 to +55 °C
• Stainless steel hardware protects the speaker from corrosion

Features
Related Products

Features

CS-64
Frequency response 130 Hz – 13 kHz
Sensitivity (1 W, 1 m) 96 dB 330 Hz – 3,3 kHz, pink noise
Speaker component 12 cm cone-type
Rated input (high impedance) 6 W
Tappings 100 V : 1.7 kΩ (6 W) / 3.3 kΩ (3 W) / 10 kΩ (1 W)

70 V : 830 Ω (6 W) / 1.7 kΩ (3 W) / 3.3 kΩ (1.5 W) / 10 kΩ (0.5 W)

Operating temperature. -20 °C to +55 °C
Dimensions. 233 x 224 x 208 mm (W x H x D)
Finish. ABS resin, paint, off-white, Bracket: Stainless steel
