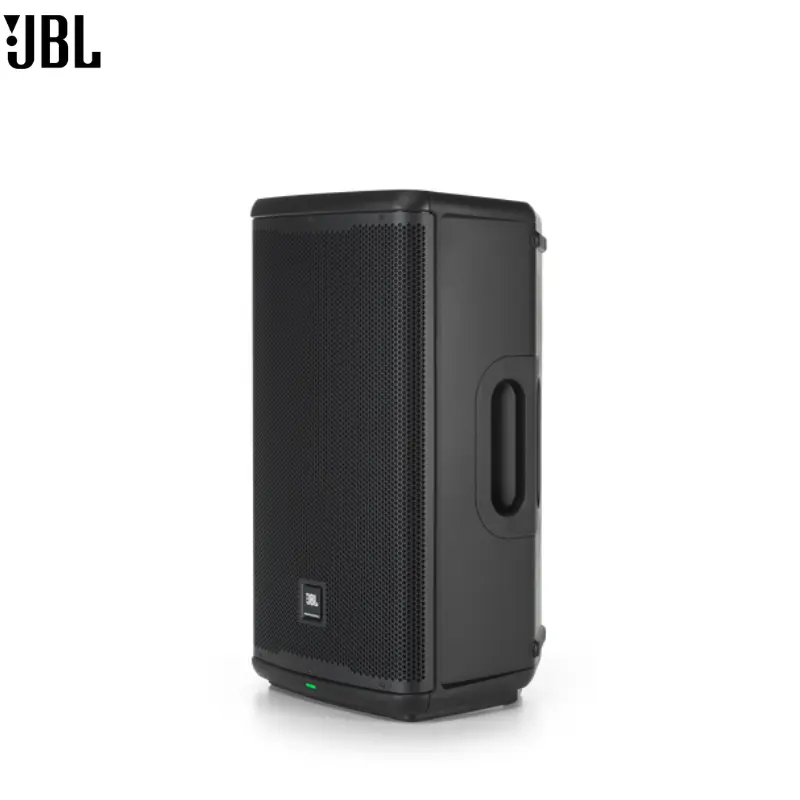

SP-2 12-inch 650 Watt Speaker JBL EON 712
The JBL EON 712 is a powerful 12-inch active PA speaker designed for professional performance and easy portability. Delivering 1,300W of peak power, Bluetooth streaming, built-in DSP, and app control, it’s a perfect choice for live sound, events, DJs, schools, and venues. AB Audio Visual Pakistan offers JBL speakers based on your needs and email us today for a free quote.
| Specifications | Details |
|---|---|
| System Type | 12″ Powered Loudspeaker |
| Woofer Model | 712G |
| Woofer Size | 12″ |
| Woofer Magnet | Ferrite |
| Woofer Voice Coil | 2″ |
| Tweeter Model | 2414H Compression Driver |
| Tweeter Size | 1″ |
| Tweeter Magnet | Neodymium |
| Transducer Impedance | LF 4Ω rated, HF 8Ω rated |
| Max SPL | 127 dB @1m/4Pi |
| Frequency Range (-10dB) | 50 Hz – 20 kHz |
| Frequency Range (-3dB) | 60 Hz – 20 kHz |
| Horizontal Dispersion | 100° |
| Vertical Dispersion | 60° |
| Power Rating | 1300W Peak / 650W RMS |
| AC Power Input | 100V-120V or 220V-240V |
| Cooling | Passive |
| LED Indicators | Power, Limit, Front, Signal LEDs |
| Input Impedance | 50kΩ unbalanced / 100kΩ balanced |
| Input Gain | -∞ to +36 dB |
| Crossover Frequency | 2 kHz |
| I/O | 2 XLR Combo Jacks / Bluetooth, 1 XLR Thru |
| Cabinet | Polypropylene + 10% Talc |
| Grille | 16GA perforated steel with cloth backing |
| Suspension / Mounting | 4 M10 points, 36 mm pole socket, yoke bracket holes |
| Handles | 2 handles, cable channel on bottom |
| Net Weight | 14.6 kg (32.19 lbs) |
| Gross Weight | 18.4 kg (40.57 lbs) |
| Product Dimensions (H × W × D) | 670 × 381 × 328 mm (26.38 × 15.0 × 12.91 in) |
| Shipping Dimensions (H × W × D) | 684 × 490 × 430 mm (26.93 × 19.29 × 16.93 in) |
