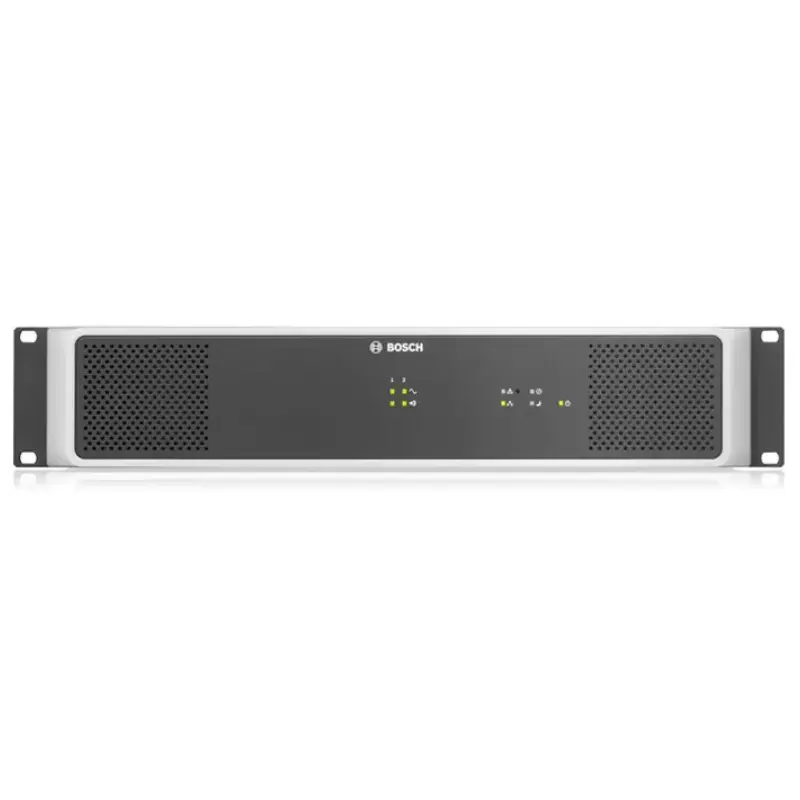

Bosch PVA-2P500 Power Amplifier Price in Pakistan
The Bosch PVA-2P500 is a 2 x 500W Class-D power amplifier designed for high-performance voice alarm and public address systems. With 70V/100V outputs, low standby power consumption, and EN 54‑16 certification, it ensures superior sound quality, high signal-to-noise ratio, and reliable safety compliance for mission-critical applications like mosques, commercial buildings, and emergency communication systems. AB Audio Visual Pakistan is your trusted dealer of original Bosch amplifiers in Pakistan.
| Category | Details |
|---|---|
| Rated Output Power | 2 × 500 W (1 kHz, THD ≤ 1%) |
| Output Voltage | 100V (20 Ω) / 70V (10 Ω) |
| Input Voltage (Rated/Max) | +6 dBu / +18 dBu (9.75 Vrms) |
| Frequency Response | 50 Hz – 25 kHz (-3 dB) |
| Signal-to-Noise Ratio | > 104 dB (A-weighted) |
| Output Noise | < -62 dBu (A-weighted) |
| Voltage Gain | 70V: 33.2 dB / 100V: 36.2 dB |
| Input Impedance | 20 kΩ (active balanced) |
| Crosstalk | < -85 dB |
| Output Topology | Class-D, transformer isolated, floating |
| Power Supply | 115–240 VAC ±10% / 21–32 VDC |
| Power Consumption | Idle: 16–21W / Standby: 1.5–1.9W / Max: 700–745W |
| Cooling | Front-to-rear, temperature-controlled fans |
| Operating Temp. | -5°C to +45°C |
| Storage Temp. | -40°C to +70°C |
| Humidity | 5% to 90% (non-condensing) |
| Altitude | Up to 2000 m |
| Dimensions (H × W × D) | 88 × 483 × 375 mm (2RU) |
| Weight (Net) | 16.5 kg |
| Mounting | 19-inch rack / standalone |
| Color | Black with silver finish |
| Protection Features | Audio input limiter, RMS limiter, short circuit, DC, thermal |
| Control Interface | 2 × RJ-45 CAN BUS ports (10 to 500 kbit/s) |
