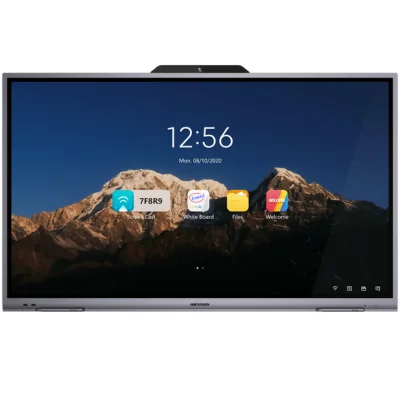

75 Inch Digital Board

WhatsApp For Pricing

75 inch Digital Board

  • 75 inch Digital Board with Ultra HD display with up to 3840 × 2160 resolution of input
    signal available.
  • 20px ultra-fine writing and 2 mm diameter are recognizable with a precision of 1 mm.
  • Built-in Wi-Fi is miraculous without any cable connection.
  • Built-in 75-inch Digital Board system allows annotating and sharing by QR code.
  • Looping-out display available.
  • Various audio and video interfaces for device access.
  • Built-in network switch chip saves a network switch.
  • Built-in Android system provides kinds of applications.
  • Compatible with OPS/OPS-C devices, realizing smooth switch between built-in systems.
  • Ultra-thin design with aluminum profile frame
Share it:
Features
Related Products

Features

75 Inch Digital Board

Looking for a cutting-edge 75 Inch Digital Board in Pakistan? AB Audiovisual offers the perfect solution for your office, classroom, or conference room. Our Digital Board integrates various functions, such as computers, projectors, Digital Board, sound systems, and more. It also includes optional features like cameras, Bluetooth remote control, and HDTV capabilities, making it an all-in-one device for modern presentations.

This 75-inch Digital Board, 4K display quality, infrared touch technology, and human-machine interaction, ensure a smooth, responsive experience. Whether you need it for remote video conferences, training sessions, or multimedia classrooms, its key features include writing, annotating, multi-screen sharing, pen detection, and the option for remote video calls.

Ideal for businesses and educational institutions, this 75 inch Digital Board can transform meeting rooms, exhibition halls, and classrooms with enhanced interactivity and collaboration. Its versatility makes it suitable for various applications, including medical consultations, training programs, and virtual meetings. Please check the specifications in detail and contact us for any clarification:

Model DS-D5B75RB/D
Screen Size 75-inch LED Backlight
Backlight DLED
Pixel Pitch 0.143 (H) × 0.430 (V) mm
Resolution 3840 x 2160@60 Hz
Brightness 350 cd/m*
Color Depth 10 bit
Contrast Ratio 1200 : l  (Typ.)
Response time 6 ms
Color Gamut 90% NTSC (CIE1931) (Typ.)
Refresh Rate 60 Hz
Viewing Angle 178° (H) / 178° (V)
Built-in System Android 11
Processor A72*2 + A53*4, 1.8 GHz
Memory 4 GB
Built-in Storage 64 GB
NIC Built-in 1000 Mbps NIC, supporting routing; IEEE 802.11 a/b/g/n/ac with 2 x 2 MIMO, supporting both 2.4 GHz and 5GHz bands
Touch Type Infrared Touch screen
Touch Glass AG Smooth glass
Touch Points Max 45 point multi-touch
Touch Response time less than 10 ms
Touch precision ± 1 mm (≥ 90% touchin
Loud speaker Built-in 2 x 16 W loudspeaker
Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version
Video and Audio Input HDMI IN x 2, MAX 4K @30 Hz, LINE IN x 1
Video and Audio Output HDMI OUT     HDMI 2.0      x 1, MAX 4K @60 Hz, LINE OUT x 1
Control Interface RS-232 x 1, Touch-USB x 1
Network Interface RJ45 (1000 Mbps port) x 2
Data Transmission Interface USB-C    1, USB-A x 2 on front panel, USB-A x 2 on rear panel
Power Consumption ≤ 370 W (full load)
Standby Consumption 0.5 W
Working temperature 0 °C to 40 °C ( 32 °F  to 104 °F)
Working humidity 10% to 90% RH
Power 100 to 240 V, AC, 50/60 Hz
Product dimension 1718 × 1046 × 87.5 mm
Package dimension (W × H × D) 1927 × 1212 x 254 mm
Net Weight 52.25 Kg
Gross Weight 68.86 Kg
Life Span 50000 hours
Camera Pixel 8MP
Camera Function Smart switch between Android system and OPS
Field Angle 120°(diagonal), 110°(horizontal), 66°(vertical)
Distortion  <6%
Camera Resolution Ratio Up to 4K
Microphone type Omni-directional 6-array layout
Microphone function Echo reduction and smart noise-cancellation
Microphone Voice Distance 8 m
Sampling Rate 32 K
Microphone Sampling Ration 16 bit

Choose AB Audiovisual to bring the best Digital Board, display technology to your workplace in Pakistan. Please also explore details of other Digital Boards available contact us.
