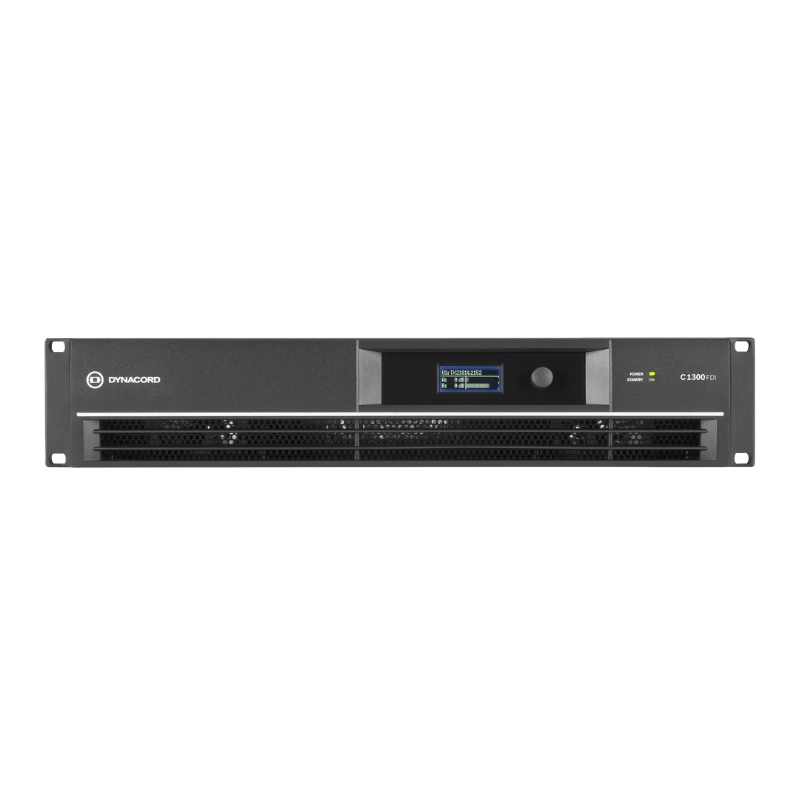

Dynacord C1300Fdi
Click to enlarge

Dynacord C1300Fdi

WhatsApp For Pricing

The Dynacord C1300Fdi is a powerhouse amplifier designed for precision and professional sound quality in various audio applications. With load impedance options spanning from 2 Ω to 8 Ω, this amplifier ensures compatibility with diverse speaker configurations. In single-channel mode, it delivers impressive maximum output powers, reaching 1100 W at 2 Ω, and in dual-channel mode, it maintains a robust performance with a maximum of 1000 W. For bridged applications, the amplifier achieves a substantial 2000 W, showcasing its versatility.

Featuring Class AB output stage topology, the C1300Fdi combines efficiency and reliability. Advanced protection mechanisms, including audio limiters, high-temperature monitoring, and peak current limiters, safeguard against potential issues. With a sleek black design measuring 483 x 88 x 462.4 mm and weighing 12.9 kg, this amplifier is not only powerful but also aesthetically pleasing. The inclusion of FIR filters, audio limiters, and various signal processing features, along with accessories like the RMK15 rear rack mount kit and Multi Amplifier Remote Control (MARC) software, make the Dynacord C1300Fdi an ideal choice for professionals seeking top-notch audio performance.

▪ Installation DSP amplifier, Euroblock connectors
▪ Fully integrated professional speaker processing
with FIR Drive technology
▪ Market leading acoustic performance and rock solid
reliability
▪ Low Z and 70/100V operation and power saving
standby mode
▪ Intuitive system control software, makes setup and
control easy

Share it:
Features

Features

Dynacord C1300Fdi
Load Impedance
2 Ω
2.6 Ω
4 Ω
8 Ω
Maximum Output Power, Single Channel
1100 W
950 W
660 W
350 W
Maximum Output Power, Dual Channel
1000 W
850 W
600 W
320 W
Maximum Output Power, Bridged
–
–
2000 W
1200 W
Direct Drive Load Capability Dual Channel Bridged
70 V Operation Not available2 1 x 625 W (0.0 dB)
100 V Operation Not available2 Not available2
Maximum RMS Voltage Swing THD = 1%, 1 kHz
55.3 V
Voltage Gain Ref.1 kHz
32.0 dB
THD at 900 W/4 Ω MBW = 80 kHz, 1 kHz
< 0.05%
IMD-SMPTE, 60 Hz, 7 kHz
< 0.1%
DIM30, 3.15 kHz, 15 kHz
< 0.05%
Maximum Input Level
+21 dBu
Crosstalk ref. 1 kHz, at 100 W/4 Ω
< -80 dB
Frequency Response, ref. 1 kHz
10 Hz to 21 kHz (±1 dB)
Input Impedance, Active Balanced
20 k Ω
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power @ 8 Ω
>104 dB
Output Noise, A-weighted
< -68 dBu
Output Stage Topology
Class AB
Power Requirements
240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption 1/8 Maximum Output Power @ 4 Ω
550 W
Mains Fuse
240 V/230 V: T15AH; 120 V/100 V: T25AH
Protection
Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
Cooling
Front-to-rear, 3-stage-fans
Ambient Temperature Limits
+5°C to +40°C (40°F to +105°F)
Safety Class
I
Color
Black
Dimensions (W x H x D), mm
483 x 88 x 462.4
Weight
12.9 kg (28.4 lb)
Remote Power ON/GPIO
Power remote via switch, delay time selectable Floating relay contacts (show protect mode) Inputs for preset selection
Signal Processing
FIR Filters, Audio Limiters Output delay per channel, 31 band GEQ per channel, PEQ per channel, Load impedance
Accessories
RMK15 (rear rack mount kit), Multi Amplifier Remote Control (MARC) software
