| Load Impedance | 2 Ω | 2.7 Ω | 4 Ω | 8 Ω |
| Maximum Output Power, Single Channel | 2300 W | 2000 W | 1400 W | 700 W |
| Maximum Output Power, Dual Channel | 2200 W | 1800 W | 1300 W | 650 W |
| Maximum Output Power, Bridged | – | – | 4400 W | 2600 W |
| Direct Drive Load Capability Dual Channel Bridged | 70 V Operation 2 x 1250 W (0.0 dB) Not recommended | 100 V Operation 2 x 1250 W (-3.0 dB) 1 x 1250 W (0.0 dB) | ||
| Maximum RMS Voltage Swing THD = 1%, 1 kHz | 78.8 V | |||
| Voltage Gain Ref.1 kHz | 32.0 dB | |||
| THD at 900 W/4 Ω MBW = 80 kHz, 1 kHz | < 0.05% | |||
| IMD-SMPTE, 60 Hz, 7 kHz | < 0.1% | |||
| DIM30, 3.15 kHz, 15 kHz | < 0.05% | |||
| Maximum Input Level | +21 dBu | |||
| Crosstalk ref. 1 kHz, at 100 W/4 Ω | < -80 dB | |||
| Frequency Response, ref. 1 kHz | 10 Hz to 21 kHz (±1 dB) | |||
| Input Impedance, Active Balanced | 20 k Ω | |||
| Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power @ 8 Ω | >107 dB | |||
| Output Noise, A-weighted | < -68 dBu | |||
| Output Stage Topology | Class H | |||
| Power Requirements | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) | |||
| Power Consumption 1/8 Maximum Output Power @ 4 Ω | 700 W | |||
| Mains Fuse | 240 V/230 V: T15AH; 120 V/100 V: T25AH | |||
| Protection | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay | |||
| Cooling | Front-to-rear, 3-stage-fans | |||
| Ambient Temperature Limits | +5°C to +40°C (40°F to +105°F) | |||
| Safety Class | I | |||
| Color | Black | |||
| Dimensions (W x H x D), mm | 483 x 88 x 462.4 | |||
| Weight | 16.2 kg (35.7 lb) | |||
| Remote Power ON/GPIO | Power remote via switch, delay time selectable Floating relay contacts (show protect mode) Inputs for preset selection | |||
| Signal Processing | FIR Filters, Audio Limiters Output delay per channel, 31 band GEQ per channel, PEQ per channel, Load impedance | |||
| Accessories | RMK15 (rear rack mount kit), Multi Amplifier Remote Control (MARC) software | |||

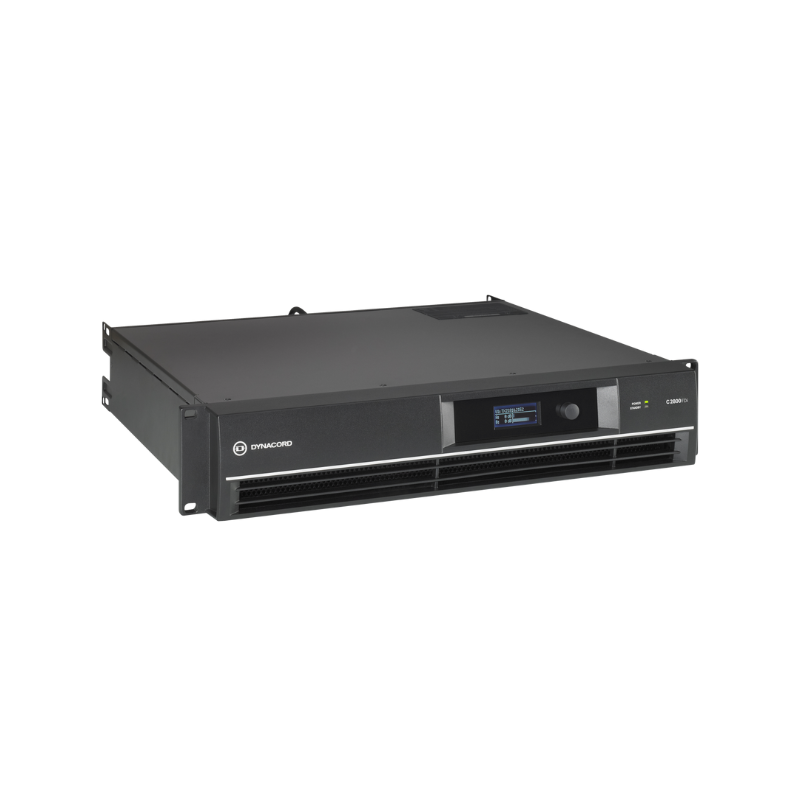

Dynacord C2800FDi
WhatsApp For Pricing
The Dynacord C2800fdi represents a pinnacle of audio engineering, meticulously crafted to meet the demands of professional sound reinforcement applications. Its versatile load impedance options, ranging from 2 Ω to 8 Ω, ensure compatibility with various speaker configurations. In single-channel mode, the amplifier delivers robust power, peaking at 2300 W at 2 Ω, while dual-channel and bridged configurations provide equally impressive performance. With a Class H output stage topology, the C2800fdi combines efficiency with reliability, offering advanced protection features such as audio limiters, temperature monitoring, and inrush current limiters.
Beyond its raw power, the amplifier incorporates thoughtful design elements. Its sleek black chassis, measuring 483 x 88 x 462.4 mm and weighing 16.2 kg, is both durable and aesthetically pleasing. The inclusion of features like remote power control, selectable delay time, and advanced signal processing capabilities, including FIR filters and graphic equalization, make the Dynacord C2800fdi a comprehensive solution for audio professionals. Whether used in live performances, installations, or other sound reinforcement scenarios, this amplifier excels in delivering high-quality, reliable audio.
▪ Installation DSP amplifier, Euroblock connectors
▪ Fully integrated professional speaker processing
with FIR Drive technology
▪ Market leading acoustic performance and rock solid
reliability
▪ Low Z and 70/100V operation and power saving
standby mode
▪ Intuitive system control software, makes setup and
control easy
