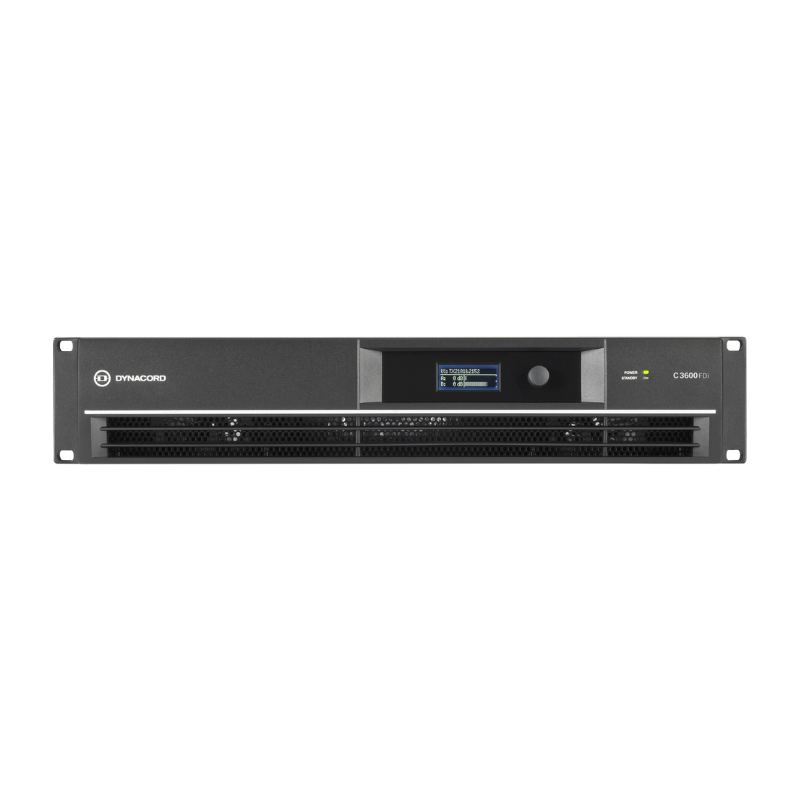

Dynacord C3600Fdi Power Amplifier
|
Load Impedance
|
2 Ω
|
2.7 Ω
|
4 Ω
|
8 Ω
|
|
Maximum Output Power, Single Channel
|
3200 W
|
2700 W
|
1800 W
|
950 W
|
|
Maximum Output Power, Dual Channel
|
3000 W
|
2500 W
|
1700 W
|
900 W
|
|
Maximum Output Power, Bridged
|
–
|
–
|
6000 W
|
3400 W
|
|
Direct Drive Load Capability Dual Channel Bridged
|
70 V Operation Not recommended3 Not recommended3
|
100 V Operation 2 x 1250 W (-1.5 dB)4 Not recommended3
|
||
|
Maximum RMS Voltage Swing THD = 1%, 1 kHz
|
90.6 V
|
|||
|
Voltage Gain Ref.1 kHz
|
32.0 dB
|
|||
|
THD at 900 W/4 Ω MBW = 80 kHz, 1 kHz
|
< 0.05%
|
|||
|
IMD-SMPTE, 60 Hz, 7 kHz
|
< 0.1%
|
|||
|
DIM30, 3.15 kHz, 15 kHz
|
< 0.05%
|
|||
|
Maximum Input Level
|
+21 dBu
|
|||
|
Crosstalk ref. 1 kHz, at 100 W/4 Ω
|
< -80 dB
|
|||
|
Frequency Response, ref. 1 kHz
|
10 Hz to 21 kHz (±1 dB)
|
|||
|
Input Impedance, Active Balanced
|
20 k Ω
|
|||
|
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power @ 8 Ω
|
>109 dB
|
|||
|
Output Noise, A-weighted
|
< -68 dBu
|
|||
|
Output Stage Topology
|
Class H
|
|||
|
Power Requirements
|
240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
|
|||
|
Power Consumption 1/8 Maximum Output Power @ 4 Ω
|
850 W
|
|||
|
Mains Fuse
|
240 V/230 V: T15AH; 120 V/100 V: T25AH
|
|||
|
Protection
|
Audio limiters, high temperature, DC, HF, BackEMF, Peak current limiters, Inrush current limiters, Turn on delay, Short-circuit
|
|||
|
Cooling
|
Front-to-rear, 3-stage-fans
|
|||
|
Ambient Temperature Limits
|
+5°C to +40°C (40°F to +105°F)
|
|||
|
Safety Class
|
I
|
|||
|
Color
|
Black
|
|||
|
Dimensions (W x H x D), mm
|
483 x 88 x 462.4
|
|||
|
Weight
|
18.2 kg (40.1 lb)
|
|||
|
Remote Power ON/GPIO
|
Power remote via switch, delay time selectable Floating relay contacts (show protect mode) Inputs for preset selection
|
|||
|
Signal Processing
|
FIR Filters, Audio Limiters Output delay per channel, PEQ per channel, Load impedance
|
|||
|
Accessories
|
RMK15 (rear rack mount kit), SONICUE Sound System software
|
|||
