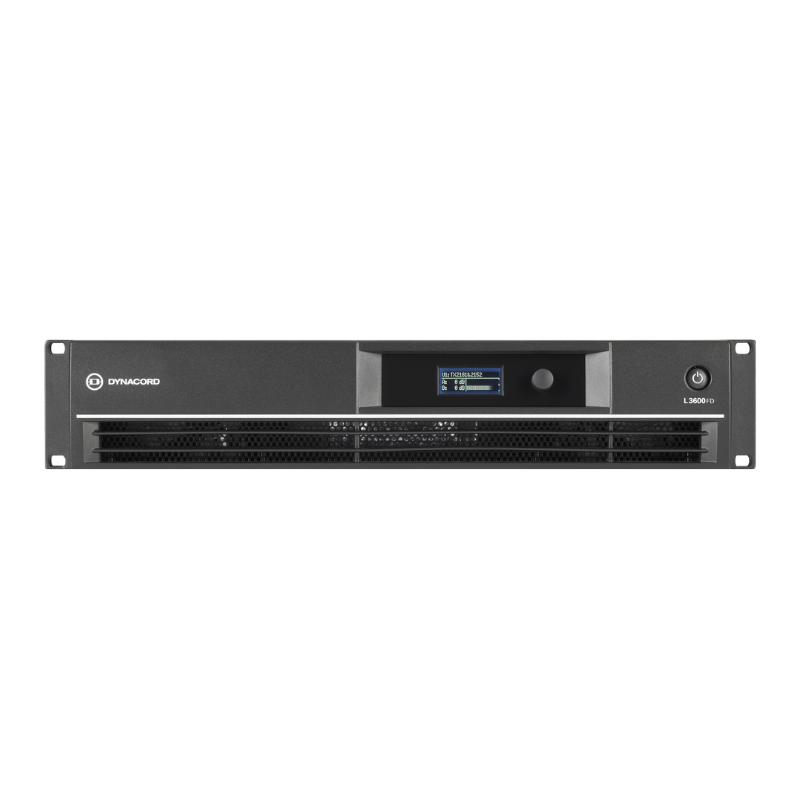

Dynacord L3600FD Power Amplifier
Click to enlarge

Dynacord L3600FD Power Amplifier

WhatsApp For Pricing

Step into the realm of professional audio excellence with the Dynacord L3600FD amplifier, a powerhouse engineered to deliver uncompromising performance. With a diverse load impedance range from 2 Ω to 8 Ω, this amplifier caters to various speaker setups, offering an impressive single-channel output of 3200 W and a dual-channel peak of 3000 W. The bridged configuration takes it to new heights, providing a staggering 6000 W of power, ensuring your sound system reaches every corner of the venue with clarity and precision. Featuring Class H output stage topology, the L3600FD incorporates advanced signal processing elements such as FIR Filters, customizable PEQ per channel, and output delay per channel.

The amplifier ensures a pristine audio experience with a low distortion level (THD < 0.05%) and a remarkable signal-to-noise ratio (>109 dB). Designed for reliability, it includes audio limiters, temperature safeguards, and protection against DC, HF, BackEMF, and short-circuits. The sleek black design, front-to-rear 3-stage fans for efficient cooling, and user-friendly features make it a versatile and indispensable tool for audio professionals. Included accessories like the RMK15 rear rack mount kit and SONICUE Sound System software enhance its usability, making the L3600FD an ideal choice for those seeking top-tier performance in a robust and user-friendly package.

▪ Live performance DSP amplifier.
▪ Fully integrated professional speaker
processing with FIR Drive technology.
▪ Market leading acoustic performance and rock
solid reliability.
▪ True 2 ohm stability.
▪ SONICUE Sound System Software*
makes setup
and control easy.

Share it:
Features
Related Products

Features

Dynacord L3600FD 2 x 1800 Power Amplifier
Load Impedance
2 Ω
2.7 Ω
4 Ω
8 Ω
Maximum Output Power, Single Channel
3200 W
2700 W
1800 W
950 W
Maximum Output Power, Dual Channel
3000 W
2500 W
1700 W
900 W
Maximum Output Power, Bridged
–
–
6000 W
3400 W
Maximum RMS Voltage Swing THD = 1%, 1 kHz
90.6 V
Voltage Gain Ref.1 kHz
32.0 dB
THD at 900 W/4 Ω MBW = 80 kHz, 1 kHz
< 0.05%
IMD-SMPTE, 60 Hz, 7 kHz
< 0.1%
DIM30, 3.15 kHz, 15 kHz
< 0.05%
Maximum Input Level
+21 dBu
Crosstalk ref. 1 kHz, at 100 W/4 Ω
< -80 dB
Frequency Response, ref. 1 kHz
10 Hz to 21 kHz (±1 dB)
Input Impedance, Active Balanced
20 k Ω
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power @ 8 Ω
>109 dB
Output Noise, A-weighted
< -68 dBu
Output Stage Topology
Class H
Power Requirements
240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption 1/8 Maximum Output Power @ 4 Ω
850 W
Mains Fuse
240 V/230 V: T15AH; 120 V/100 V: T25AH
Protection
Audio limiters, high temperature, DC, HF, BackEMF, Peak current limiters, Inrush current limiters, Turn on delay, Short-circuit
Cooling
Front-to-rear, 3-stage-fans
Ambient Temperature Limits
+5°C to +40°C (40°F to +105°F)
Safety Class
I
Color
Black
Dimensions (W x H x D), mm
483 x 88 x 462.4
Weight
18.2 kg (40.1 lb)
Signal Processing
FIR Filters, Audio Limiters Output delay per channel, PEQ per channel, Load impedance
Accessories
RMK15 (rear rack mount kit), SONICUE Sound System software
