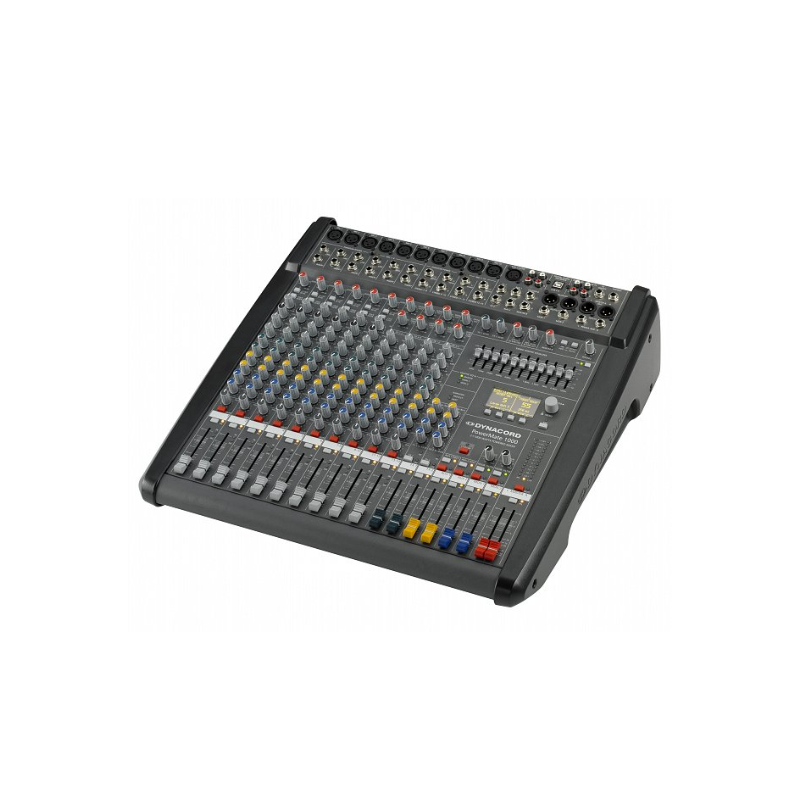

Dynacord PM-1000-3 Power Mixer

The PowerMate3 is a power mixer that offers a wide range of functionality in a very compact frame. Forget about the troubling experiences with cabling and matching mixers, amplifiers, FX units and equalizers. You
now own a device with optimally matched components. The mixer’s ergonomic console shape and clearly structured controls provide perfect overview for instant access at all times. Also during the transport you will quickly learn to appreciate the PowerMate’s superiority: recessed handleson the sides, compact dimensions and low weight, plus the sturdy cover (PowerMate 1000-3 and PowerMate 1600-3 only) that protects the controls from being damaged.

However, if you would rather like to install your PowerMate 1000 in a 19” rack shelf, no problem. The only thing you have to do is to replace the plastic side panels by a pair of metal rack mount ears. Through its multiple functions, its high dynamic capacity, and extremely low-noise design in combination with its 24-bit Dual-Stereo effect unit, 4 channel USB 2.0 DIGITAL AUDIO INTERFACE and the high-performance power amplifier, the PowerMate is best equipped for universal use.

Share it:
Features
Related Products

Features

Property
PowerMate 1000
PowerMate 1600
PowerMate 2200
Order No.
F01U131113 DC-PM1000-3-UNIV
F01U131114 DC-PM1600-3-UNIV
F01U131115 DC-PM2200-3-UNIV
Channels (Mono + Stereo)
6 + 4
12 + 4
18 + 4
Max. Single Channel Output Power, Dynamic-Headroom, IHF-A
into 2.66 Ohms
2 x 1600 W
into 4 Ohms
2 x 1250 W
into 8 Ohms
2 x 675 W
Max. Single Channel Output Power, Continuous, 1 kHz, THD = 1%
into 2.66 Ohms
2 x 1350 W
into 4 Ohms
2 x 1150 W
into 8 Ohms
2 x 650 W
Maximum Midband Output Power, 1 kHz, THD = 1%, Dual Channel
into 2.66 Ohms
2 x 1350 W
into 4 Ohms
2 x 1000 W
into 8 Ohms
2 x 600 W
Rated Output Power, 20 Hz to 20 kHz, THD < 0.5%, Single Channel
into 4 Ohms
2 x 900 W
into 8 Ohms
2 x 450 W
Maximum Output Voltage, of power amplifier, 1 kHz, no load
74 Vrms
THD, at 1 kHz, MBW = 80 kHz
MIC input to Master A L/R outputs, +16 dBu, typical
< 0.005%
POWER AMP INPUTS to Speaker L/R outputs
< 0.075%
DIM 30, power amplifier, 3.15 kHz, 15 kHz
< 0.05%
IMD-SMPTE, power amplifier, 60 Hz, 7 kHz
< 0.15%
Frequency Response, -3 dB, ref. 1 kHz
Any input to any Mixer output
15 Hz to 70 kHz
Any input to Speaker L/R output
20 Hz to 30 kHz
Crosstalk, 1 kHz
Amplifier L/R
< -85 dB
Channel to Channel
< -80 dB
Mute- and Standby-Switch attenuation
> 100 dB
Fader and FX/AUX/MON-Send attenuation
> 85 dB
CMRR, MIC input, 1 kHz
> 80 dB
Input Sensitivity, all level controls in max. position
MIC
-74 dBu (155 µV)
LINE (Mono)
-54 dBu (1.55 mV)
LINE (Stereo)
-34 dBu (15.5 mV)
CD (Stereo)
-34 dBu (15.5 mV)
POWER AMP INPUTS
+8 dBu (1.95 V)
Maximum Level, mixing desk
MIC inputs
+21 dBu
Mono Line inputs
+41 dBu
Stereo Line inputs
+30 dBu
All other inputs
+22 dBu
All other outputs
+22 dBu
Input Impedances
MIC
2 kOhms
Insert Return
3.3 kOhms
2Track Return & CD In
10 kOhms
All other inputs
> 15 kOhms
Output Impedances
Phones
47 Ohms
All other outputs
75 Ohms
Equivalent Input Noise, MIC input, A-weighted, 150 ohms
-130 dBu
Noise, Channel inputs to Master A L/R outputs, A-weighted
Master fader down
97 dBu
Master fader 0 dB, Channel fader down
-91 dBu
-89 dBu
-87 dBu
Master fader 0 dB, Channel fader 0 dB, Channel gain unity
-83 dBu
-82 dBu
81 dBu
