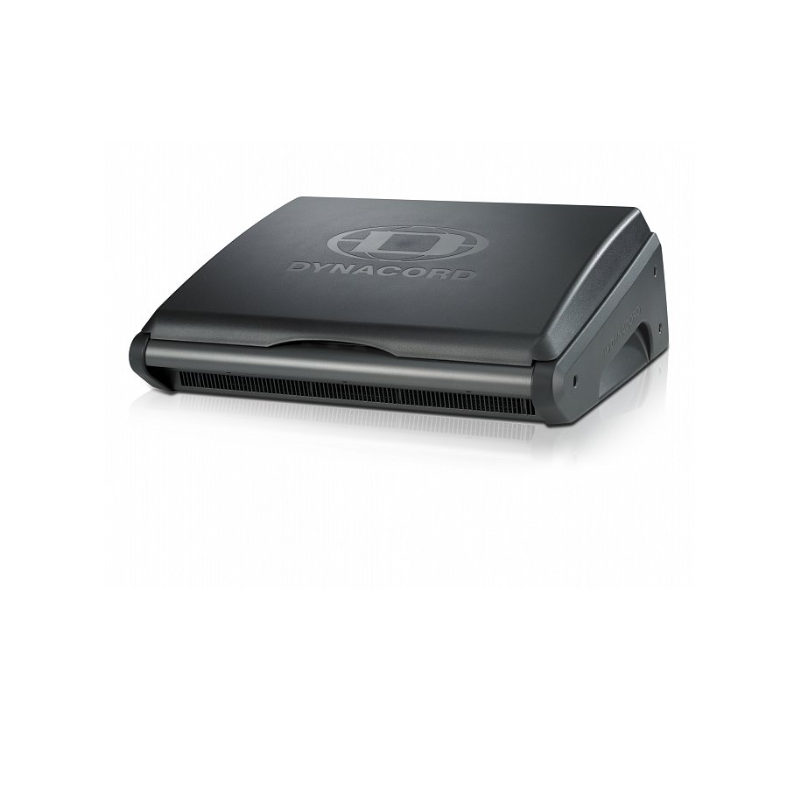

Dynacord PM-600-3
Click to enlarge

Dynacord PM-600-3

WhatsApp For Pricing

Dynacord PM-600-3 Powered Mixer

The PM 600-3 provides precision audio control, making it an ideal choice for professionals in various settings, from live performances to studio environments. Its capabilities align seamlessly with the standards set by the Dynacord Powermate 600. With multiple input channels and flexible connectivity options, the PM 600-3 accommodates a variety of audio sources, ensuring adaptability to different sound setups. This versatility is crucial for users seeking a mixer that integrates seamlessly with advanced systems like the Powermate 600.

Users can easily adjust levels, tones, and effects to achieve the desired sound with precision. PM 600-3 boasts durable construction, ensuring longevity and reliability. Its robust design guarantees that it stands up to the rigors of various audio environments. Specifically designed to complement advanced systems like the Dynacord Powermate 600, the PM 600-3 seamlessly integrates into complex audio setups, providing users with enhanced control and compatibility.



Share it:
Features

Features

Dynacord PM-600-3
Property
PowerMate 1000
PowerMate 1600
PowerMate 2200
Order No.
F01U131113 DC-PM1000-3-UNIV
F01U131114 DC-PM1600-3-UNIV
F01U131115 DC-PM2200-3-UNIV
Channels (Mono + Stereo)
6 + 4
12 + 4
18 + 4
Max. Single Channel Output Power, Dynamic-Headroom, IHF-A
into 2.66 Ohms
2 x 1600 W
into 4 Ohms
2 x 1250 W
into 8 Ohms
2 x 675 W
Max. Single Channel Output Power, Continuous, 1 kHz, THD = 1%
into 2.66 Ohms
2 x 1350 W
into 4 Ohms
2 x 1150 W
into 8 Ohms
2 x 650 W
Maximum Midband Output Power, 1 kHz, THD = 1%, Dual Channel
into 2.66 Ohms
2 x 1350 W
into 4 Ohms
2 x 1000 W
into 8 Ohms
2 x 600 W
Rated Output Power, 20 Hz to 20 kHz, THD < 0.5%, Single Channel
into 4 Ohms
2 x 900 W
into 8 Ohms
2 x 450 W
Maximum Output Voltage, of power amplifier, 1 kHz, no load
74 Vrms
THD, at 1 kHz, MBW = 80 kHz
MIC input to Master A L/R outputs, +16 dBu, typical
< 0.005%
POWER AMP INPUTS to Speaker L/R outputs
< 0.075%
DIM 30, power amplifier, 3.15 kHz, 15 kHz
< 0.05%
IMD-SMPTE, power amplifier, 60 Hz, 7 kHz
< 0.15%
Frequency Response, -3 dB, ref. 1 kHz
Any input to any Mixer output
15 Hz to 70 kHz
Any input to Speaker L/R output
20 Hz to 30 kHz
Crosstalk, 1 kHz
Amplifier L/R
< -85 dB
Channel to Channel
< -80 dB
Mute- and Standby-Switch attenuation
> 100 dB
Fader and FX/AUX/MON-Send attenuation
> 85 dB
CMRR, MIC input, 1 kHz
> 80 dB
Input Sensitivity, all level controls in max. position
MIC
-74 dBu (155 µV)
LINE (Mono)
-54 dBu (1.55 mV)
LINE (Stereo)
-34 dBu (15.5 mV)
CD (Stereo)
-34 dBu (15.5 mV)
POWER AMP INPUTS
+8 dBu (1.95 V)
Maximum Level, mixing desk
MIC inputs
+21 dBu
Mono Line inputs
+41 dBu
Stereo Line inputs
+30 dBu
All other inputs
+22 dBu
All other outputs
+22 dBu
Input Impedances
MIC
2 kOhms
Insert Return
3.3 kOhms
2Track Return & CD In
10 kOhms
All other inputs
> 15 kOhms
Output Impedances
Phones
47 Ohms
All other outputs
75 Ohms
Equivalent Input Noise, MIC input, A-weighted, 150 ohms
-130 dBu
Noise, Channel inputs to Master A L/R outputs, A-weighted
Master fader down
97 dBu
Master fader 0 dB, Channel fader down
-91 dBu
-89 dBu
-87 dBu
Master fader 0 dB, Channel fader 0 dB, Channel gain unity
-83 dBu
-82 dBu
81 dBu
