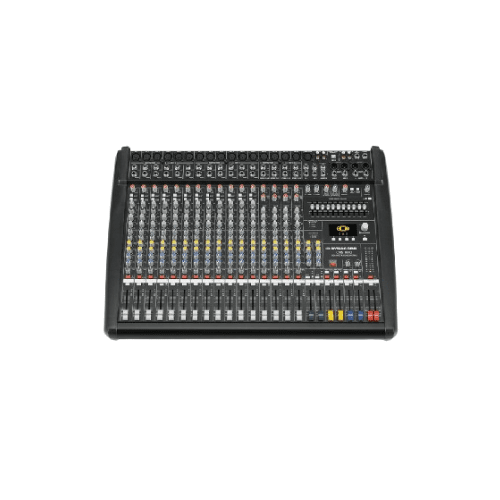

Dynacord PowerMate-1600-3

WhatsApp For Pricing

The PM 1600-3 offers precise audio control, making it the go-to choice for professionals working in dynamic environments. Its capabilities ensure a level of control that meets the highest standards of audio quality. With a multitude of input channels and flexible connectivity options, the PM 1600-3 caters to various audio sources. Whether used in live performances or studio setups, its adaptability suits a wide range of sound applications.

PM 1600-3 is built to withstand the demands of regular use. Its sturdy design ensures longevity, offering a reliable solution for professionals requiring equipment that endures the test of time. The PM 1600-3 seamlessly integrates into various sound setups, providing enhanced control and compatibility. Its versatility makes it a valuable asset, whether used as a standalone mixer or as part of a larger audio system.

Share it:
Features
Related Products

Features

Property
PowerMate 1000
PowerMate 1600
PowerMate 2200
Order No.
F01U131113 DC-PM1000-3-UNIV
F01U131114 DC-PM1600-3-UNIV
F01U131115 DC-PM2200-3-UNIV
Channels (Mono + Stereo)
6 + 4
12 + 4
18 + 4
Max. Single Channel Output Power, Dynamic-Headroom, IHF-A
into 2.66 Ohms
2 x 1600 W
into 4 Ohms
2 x 1250 W
into 8 Ohms
2 x 675 W
Max. Single Channel Output Power, Continuous, 1 kHz, THD = 1%
into 2.66 Ohms
2 x 1350 W
into 4 Ohms
2 x 1150 W
into 8 Ohms
2 x 650 W
Maximum Midband Output Power, 1 kHz, THD = 1%, Dual Channel
into 2.66 Ohms
2 x 1350 W
into 4 Ohms
2 x 1000 W
into 8 Ohms
2 x 600 W
Rated Output Power, 20 Hz to 20 kHz, THD < 0.5%, Single Channel
into 4 Ohms
2 x 900 W
into 8 Ohms
2 x 450 W
Maximum Output Voltage, of power amplifier, 1 kHz, no load
74 Vrms
THD, at 1 kHz, MBW = 80 kHz
MIC input to Master A L/R outputs, +16 dBu, typical
< 0.005%
POWER AMP INPUTS to Speaker L/R outputs
< 0.075%
DIM 30, power amplifier, 3.15 kHz, 15 kHz
< 0.05%
IMD-SMPTE, power amplifier, 60 Hz, 7 kHz
< 0.15%
Frequency Response, -3 dB, ref. 1 kHz
Any input to any Mixer output
15 Hz to 70 kHz
Any input to Speaker L/R output
20 Hz to 30 kHz
Crosstalk, 1 kHz
Amplifier L/R
< -85 dB
Channel to Channel
< -80 dB
Mute- and Standby-Switch attenuation
> 100 dB
Fader and FX/AUX/MON-Send attenuation
> 85 dB
CMRR, MIC input, 1 kHz
> 80 dB
Input Sensitivity, all level controls in max. position
MIC
-74 dBu (155 µV)
LINE (Mono)
-54 dBu (1.55 mV)
LINE (Stereo)
-34 dBu (15.5 mV)
CD (Stereo)
-34 dBu (15.5 mV)
POWER AMP INPUTS
+8 dBu (1.95 V)
Maximum Level, mixing desk
MIC inputs
+21 dBu
Mono Line inputs
+41 dBu
Stereo Line inputs
+30 dBu
All other inputs
+22 dBu
All other outputs
+22 dBu
Input Impedances
MIC
2 kOhms
Insert Return
3.3 kOhms
2Track Return & CD In
10 kOhms
All other inputs
> 15 kOhms
Output Impedances
Phones
47 Ohms
All other outputs
75 Ohms
Equivalent Input Noise, MIC input, A-weighted, 150 ohms
-130 dBu
Noise, Channel inputs to Master A L/R outputs, A-weighted
Master fader down
97 dBu
Master fader 0 dB, Channel fader down
-91 dBu
-89 dBu
-87 dBu
Master fader 0 dB, Channel fader 0 dB, Channel gain unity
-83 dBu
-82 dBu
81 dBu
