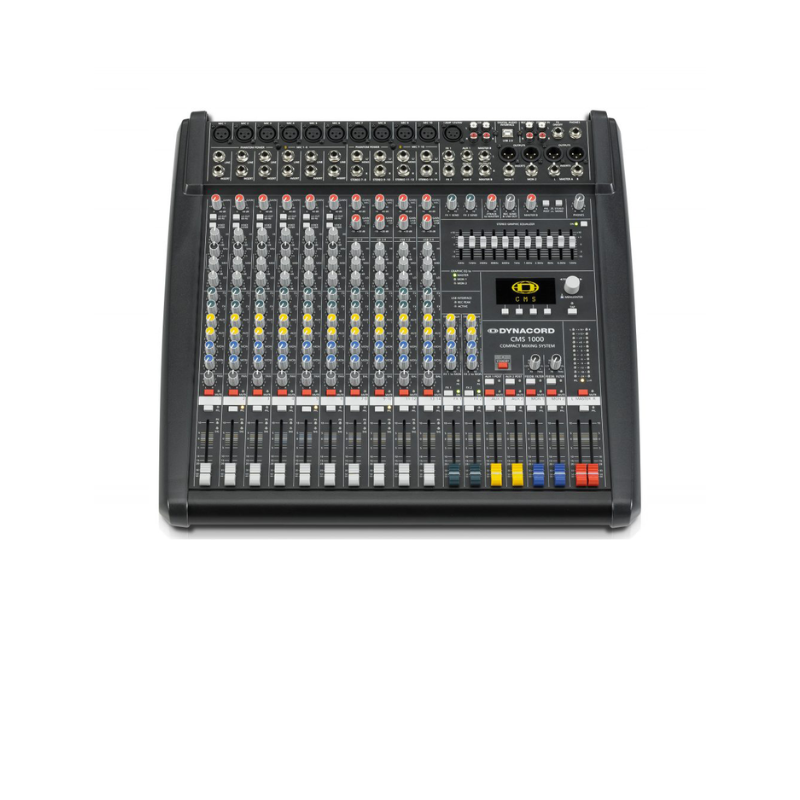

Dynacord CMS-1000-3
Click to enlarge

Dynacord CMS-1000-3 – 10-Channel Pre Mixer

WhatsApp For Pricing

The Dynacord CMS-1000-3 stands as a testament to precision audio engineering, offering an impressive combination of 6 mono and 4 stereo channels. With a maximum single channel output power of 2 x 1350W into 2.66 Ohms, this mixer is a powerhouse for delivering dynamic and continuous sound. Whether pushing boundaries with its 20 Hz to 70 kHz frequency response or ensuring minimal interference with crosstalk levels below -85 dB, the CMS-1000-3 is a versatile solution for professionals and enthusiasts alike. Its comprehensive set of features, including attenuations exceeding 100 dB and a wide range of input and output options, positions it as a top-tier choice for those who demand excellence in their audio setups.

In addition to its technical prowess, the CMS-1000-3 excels in user-centric design, boasting intuitive controls and durable construction. Its output impedances, ranging from 47 Ohms for Phones to 75 Ohms for all other outputs, ensure optimal connectivity. With noise levels meticulously controlled and input sensitivities finely tuned, the CMS-1000-3 represents a harmonious blend of technical sophistication and user-friendly operation. Whether you’re crafting a studio masterpiece or delivering a live performance, this mixer provides the precision and power needed to elevate your sound experience to new heights.

Share it:
Features

Features

Dynacord CMS-1000-3 – 10-Channel Pre Mixer
Property
CMS 1000
CMS 1600
CMS 2200
Channels (Mono + Stereo)
6 + 4
12 + 4
18 + 4
Max. Single Channel Output Power, Dynamic-Headroom, IHF-A
into 2.66 Ohms
2 x 1600 W
into 4 Ohms
2 x 1250 W
into 8 Ohms
2 x 675 W
Max. Single Channel Output Power, Continuous, 1 kHz, THD = 1%
into 2.66 Ohms
2 x 1350 W
into 4 Ohms
2 x 1150 W
into 8 Ohms
2 x 650 W
Maximum Midband Output Power, 1 kHz, THD = 1%, Dual Channel
into 2.66 Ohms
2 x 1350 W
into 4 Ohms
2 x 1000 W
into 8 Ohms
2 x 600 W
Rated Output Power, 20 Hz to 20 kHz, THD < 0.5%, Single Channel
into 4 Ohms
2 x 900 W
into 8 Ohms
2 x 450 W
Maximum Output Voltage, of power amplifier, 1 kHz, no load
74 Vrms
THD, at 1 kHz, MBW = 80 kHz
MIC input to Master A L/R outputs, +16 dBu, typical
< 0.005%
POWER AMP INPUTS to Speaker L/R outputs
< 0.075%
DIM 30, power amplifier, 3.15 kHz, 15 kHz
< 0.05%
IMD-SMPTE, power amplifier, 60 Hz, 7 kHz
< 0.15%
Frequency Response, -3 dB, ref. 1 kHz
Any input to any Mixer output
15 Hz to 70 kHz
Any input to Speaker L/R output
20 Hz to 30 kHz
Crosstalk, 1 kHz
Amplifier L/R
< -85 dB
Channel to Channel
< -80 dB
Mute- and Standby-Switch attenuation
> 100 dB
Fader and FX/AUX/MON-Send attenuation
> 85 dB
CMRR, MIC input, 1 kHz
> 80 dB
Input Sensitivity, all level controls in max. position
MIC
-74 dBu (155 µV)
LINE (Mono)
-54 dBu (1.55 mV)
LINE (Stereo)
-34 dBu (15.5 mV)
CD (Stereo)
-34 dBu (15.5 mV)
POWER AMP INPUTS
+8 dBu (1.95 V)
Maximum Level, mixing desk
MIC inputs
+21 dBu
Mono Line inputs
+41 dBu
Stereo Line inputs
+30 dBu
All other inputs
+22 dBu
All other outputs
+22 dBu
Input Impedances
MIC
2 kOhms
Insert Return
3.3 kOhms
2Track Return & CD In
10 kOhms
All other inputs
> 15 kOhms
Output Impedances
Phones
47 Ohms
All other outputs
75 Ohms
Equivalent Input Noise, MIC input, A-weighted, 150 ohms
-130 dBu
Noise, Channel inputs to Master A L/R outputs, A-weighted
Master fader down
97 dBu
Master fader 0 dB, Channel fader down
-91 dBu
-89 dBu
-87 dBu
Master fader 0 dB, Channel fader 0 dB, Channel gain unity
-83 dBu
-82 dBu
81 dBu
