Color
|
• TS 200 Black (RAL 9005, jet black)
|
• TS 200W White (RAL 9010, pure white)
|
|
|
Cabinet
|
Full-range
|
||
|
Configuration
|
Passive 2-Way
|
||
|
Nominal impedance
|
8 Ω
|
||
|
Power handling: Full-range
|
• Rated power RMS 300 W
|
• Program power 600 W
|
• Peak power 1200 W
|
|
SPL 1 W/1 m
|
97 dB
|
||
|
Max. SPL at 1 m (calculated with peak power) 128 dB
|
128 dB
|
||
|
Frequency range (-10 dB)
|
90–20000 Hz
|
||
|
Nominal coverage angle
|
90° x 40°
|
||
|
X-Over frequency
|
2200 Hz
|
||
|
Voice coil tracking protection
|
Halogen
|
||
|
Component HIGH
|
Electro-Voice DH-3
|
||
|
Component LOW
|
2 x DND 6130-16
|
||
|
Connector
|
Model 2 x NEUTRIK speakON NL4
|
• Contacts full-range 1+, 1-
|
• Contacts wired through 1+, 1-
|
|
Product dimensions (Width x Height x Depth)
|
199 x 513.5 x 239.5 mm
|
||
|
Net weight
|
10 kg
|
||
|
Enclosure material
|
Aluminum
|
||
|
Grille
|
Steel
|
||
|
Suspension
|
8 x M6
|

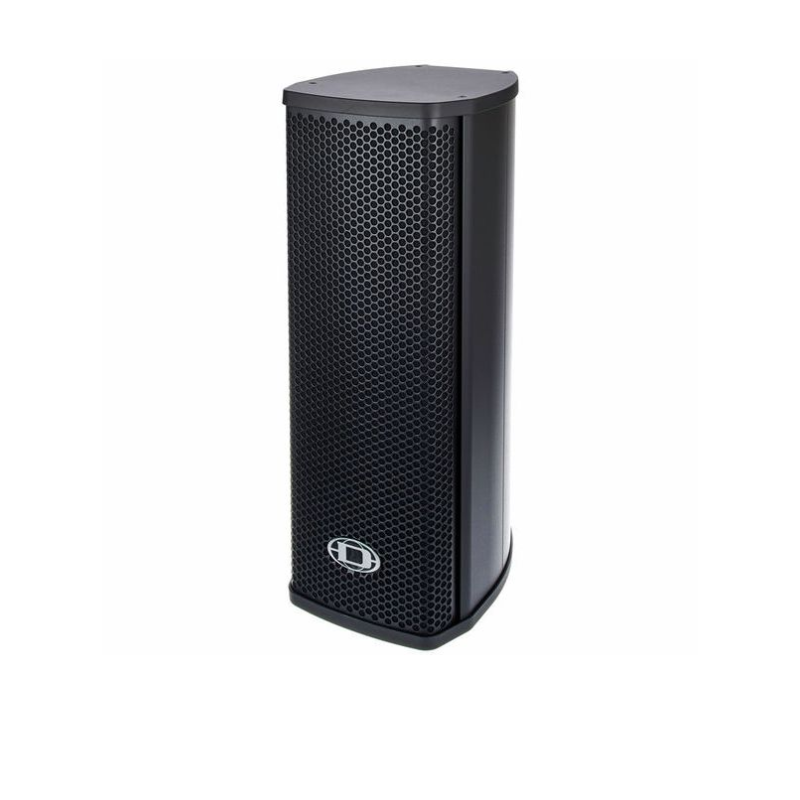

Dynacord TS-200
WhatsApp For Pricing
Dynacord TS-200
From its powerful performance to innovative features, the Dynacord TS 200 is designed to elevate your sound to new heights, whether you’re a seasoned audio professional or an enthusiast seeking premium quality. Trust AB Security Sol to bring this sonic marvel to your doorstep, ensuring you access the pinnacle of audio innovation in the heart of Pakistan
▪ High power multi-functional 2-way cabinet
▪ 300 Watts / 8 Ω
▪ DH-3 Titanium diaphragm driver
▪ Rotatable CAD optimized 90 x 40 CD horn
▪ 2 x Neodymium DND 6130-16 woofer
Share it:
Features
