Frequency response (-3 dB)1
|
: 57 Hz – 16 kHz
|
|
Frequency range (-10 dB)1
|
51 Hz – 20 kHz
|
|
Maximum SPL
|
: 130 dB
|
|
Coverage (H x V)
|
90° x 60°
|
|
Power rating
|
1200 W
|
|
LF transducer
|
EVS-12M 300 mm (12 in)
|
|
HF transduce
|
DH-1L 1-inch titanium compression driver
|
|
Crossover frequency
|
1700 Hz
|
|
Connectors
|
: (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
|
|
Enclosure
|
Polypropylene
|
|
Grille
|
18 AWG steel with powdercoat
|
|
Suspension
|
(3) M10 suspension points
|
|
Color
|
Black or white
|
|
Dimensions (H x W x D)
|
629 mm x 363 mm x 344 mm (24.8 in x 14.3 in x 13.6 in)
|
|
Net weight
|
15.6 kg (34.4 lb)
|
|
Shipping weight
|
17.7 kg (39.1 lb)
|
|
Power consumption3 :
|
100 – 240 V~, 50 – 60 Hz, 1.2 – 0.6 A
|
EV-ELX200-12P-EU
WhatsApp For Pricing

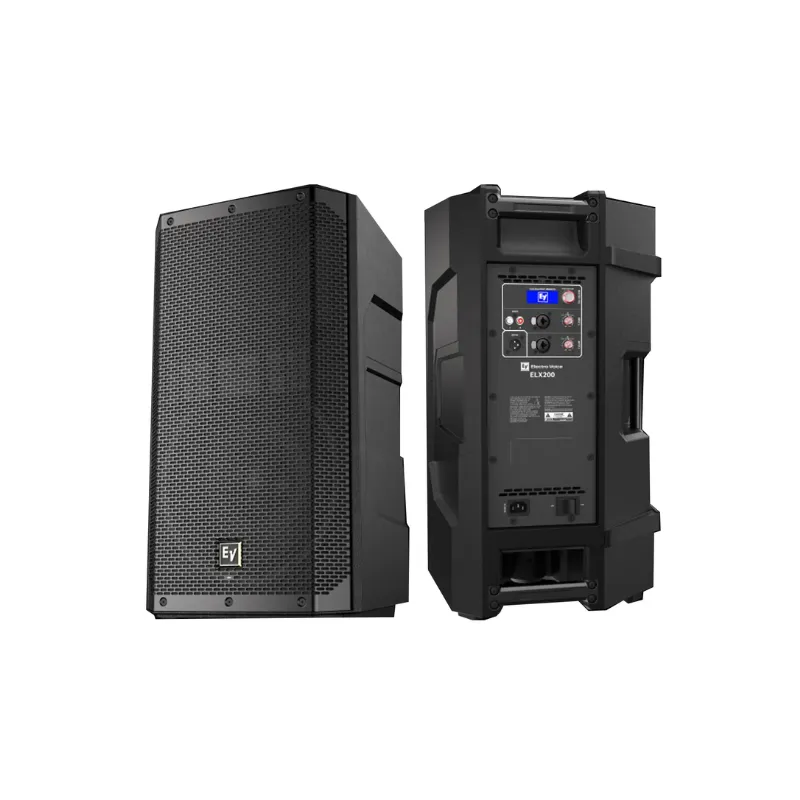

EV-ELX200-12P-EU Electro Voice Speaker
▪ EV QuickSmart Mobile application: quickly and
wirelessly configure, control and monitor up to
six ELX200 loudspeakers simultaneously, and
receive immediate notification during critical
performance conditions. Bluetooth® is available
in select countries.
▪ QuickSmartDSP features best-in-class
processing. Easy setup via four presets, sub/top
system-match, three-band EQ, five userprogrammable presets, visual monitoring of
limiter status, input level control and meters,
and master volume control to optimize gain
structure, all via LCD.
▪ High-efficiency 1200 W Class-D power amplifier
delivers up to 130 dB peak SPL utilizing
transducers designed and engineered by EV.
▪ EV-patented Signal Synchronized Transducers
(SST) waveguide design provides precise and
consistent coverage, minimal distortion, and
maximized acoustical loading.
▪ Professional-grade hardware: three M10
threaded mounting points for forged eyebolts,
integrated pole-mounts and the proven ZLX
three-handle design for easy lifting.
