Frequency response (-3 dB)
|
64 Hz – 20 kHz
|
|
Frequency range (-10 dB)
|
53 Hz – 20 kHz
|
|
Monitor Angle
|
55°
|
|
Maximum SPL
|
129 dB
|
|
Coverage (H x V)
|
90˚ x 90˚
|
|
Amplifier Rating
|
700 W
|
|
LF Channel Rating
|
500 W
|
|
HF Channel Rating
|
200 W
|
|
Crossover frequency
|
1.6 kHz
|
|
Transduce
|
CXCA2128-1NA 12” / 1.75” 2- way coaxia
|
|
Connectors
|
2x XLR/TRS combo input 1x Stereo RCA input 1x XLR THRU input 1x XLR MIXOUT output
|
|
Enclosure
|
15 mm Plywood
|
|
Grille
|
Steel with black powder coat
|
|
Color
|
Black
|
|
Dimensions (H x W x D): mm (in)
|
334 mm x 409 mm x 484 mm (13.1 in x 16.1 in x 19.0 in)
|
|
Net weight
|
13.5 kg (29.8 lb)
|
|
Shipping weight
|
15.6 kg (34.3 lb)
|
|
Power consumption
|
100 – 240 V AC, 50 – 60 Hz, 0.8 – 0.5 A
|
EV-PXM-12MP
WhatsApp For Pricing

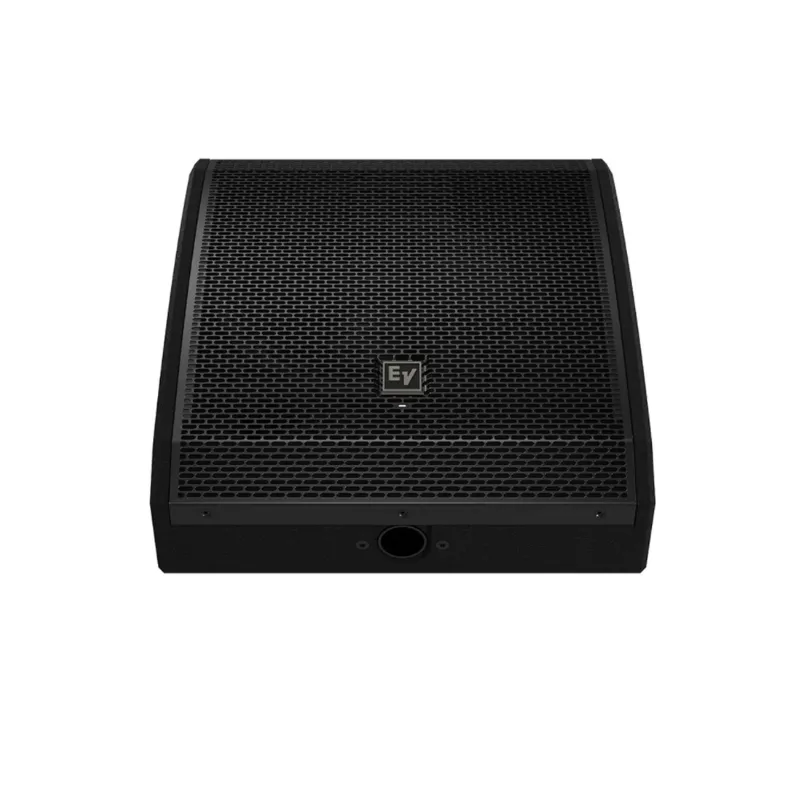

EV-PXM-12MP Electro Voice Speaker
▪ Multi-functional monitoring system that is useable
as a floor wedge or as a mains PA.
▪ QuickSmartDSP features best-in-class processing.
Easy setup via four presets, sub/top system-match,
three-band EQ, five user-programmable presets,
visual monitoring of limiter status, input level
control and meters, and master volume control to
optimize gain structure, all via LCD.
▪ 700 W Class-D power amplifier designed by
Dynacord delivers up to 129 dB peak SPL utilizing
transducers by EV.
▪ System reliability verified with over 500 hours of
abuse and endurance testing.
Share it:
Features
