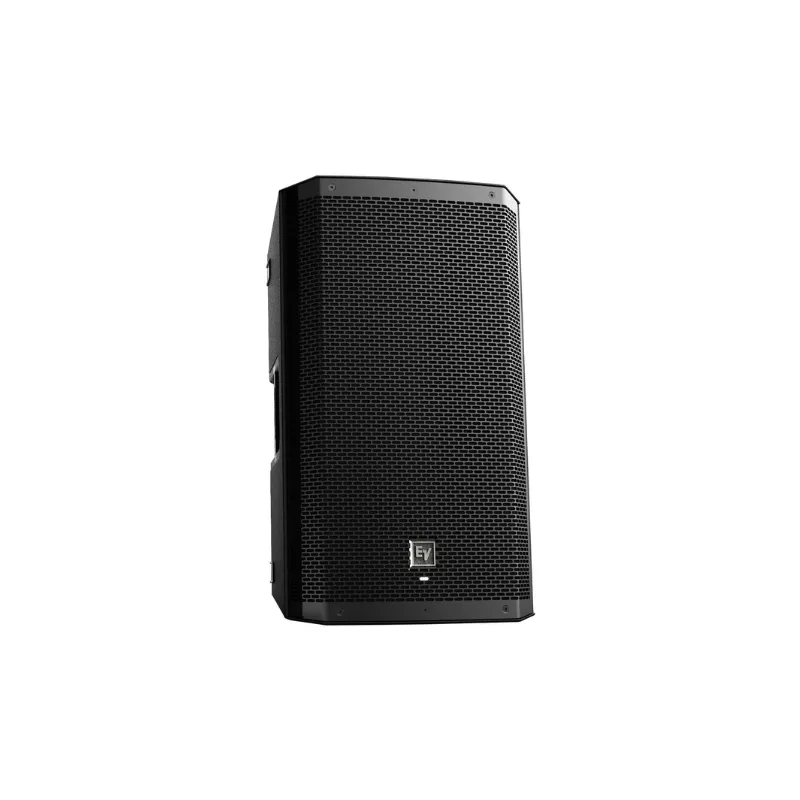

EV-ZLX-12BT Electro Voice Speaker

▪ LCD display and 1-knob DSP control with presets
for precise and speedy setup.
▪ Input level meters and independent amplifier
control to ensure optimal gain structure.
▪ Front LED for “power on” and “limit” indication.
▪ Patented split-baffle design for superior driver time
alignment.
▪ Durable composite construction with innovative
hi/lo grip design for easy pole mounting.

Share it:
Features
Related Products

Features

PA Speaker
Configuration
Active 2-Way
Total Power Capacity
1000 W
Drivers
HF Driver
1 x 1.5″ / 3.9 cm Titanium Compression Driver
LF Driver
1x 12″ / 30 cm Woofer
Performance
Frequency Range
50 Hz to 20 kHz -10 dB
Frequency Response
65 Hz to 18 kHz -3 dB (Full-Space)
Maximum SPL
126 dB
Coverage Angle
90° H x 60° V
Connectivity
Audio I/O
2x Combo XLR-1/4″ TRS Input
1x 1/8″ / 3.5 mm TRS Input
1x XLR 3-Pin Male Output
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Current Consumption
0.5 to 0.8 A (1/8 Power)
Physical
Construction Material
Metal Grille, Polypropylene
Dimensions
24 x 14 x 14″ / 61 x 35.6 x 35.6 cm
Weight
34.3 lb / 15.6 kg
Packaging Info
Package Weight
40.25 lb
Box Dimensions (LxWxH)
26 x 16 x 16″
