Coverage (Hort. x Vert.)
|
90° x 60°
|
|
|
Power Rating
|
1000 Watts
|
|
|
LF Transducer
|
EVS-12K, 300 mm (12 in) Woofer
|
EVS-15L, 380 mm (15 in) Woofer
|
|
HF Transducer
|
DH-1K
|
|
|
Connectors
|
(2) XLR/TRS Combo Jack, (1) 3.5 mm Input, and (1) XLR link Output
|
|
|
Enclosure
|
Polypropylene
|
|
|
Grille
|
18 Gauge Steel with Black Powder Coat
|
|
|
Dimensions (H x W x D)
|
610 mm x 356 mm x 356 mm (24 in x 14 in x 14 in)
|
685 mm x 423 mm x 383 mm (27 in x 17 in x 15 in)
|
|
Net Weight
|
15.6 kg (34.3 lbs)
|
17.3 kg (38.0 lbs)
|
|
Shipping Weight
|
19.0 kg (41.8 lbs)
|
23.0 kg (50.7 lbs)
|
|
Model
|
ZLX-12P
|
ZLX-15P
|
|
Frequency Response
|
65 Hz – 18 kHz1
|
55 Hz – 18 kHz1
|
|
Frequency Range
|
50 Hz – 20 kHz1
|
42 Hz – 20 kHz1
|
|
Maximum SPL
|
126 dB
|
127 dB
|
EV-ZLX-12P
WhatsApp For Pricing

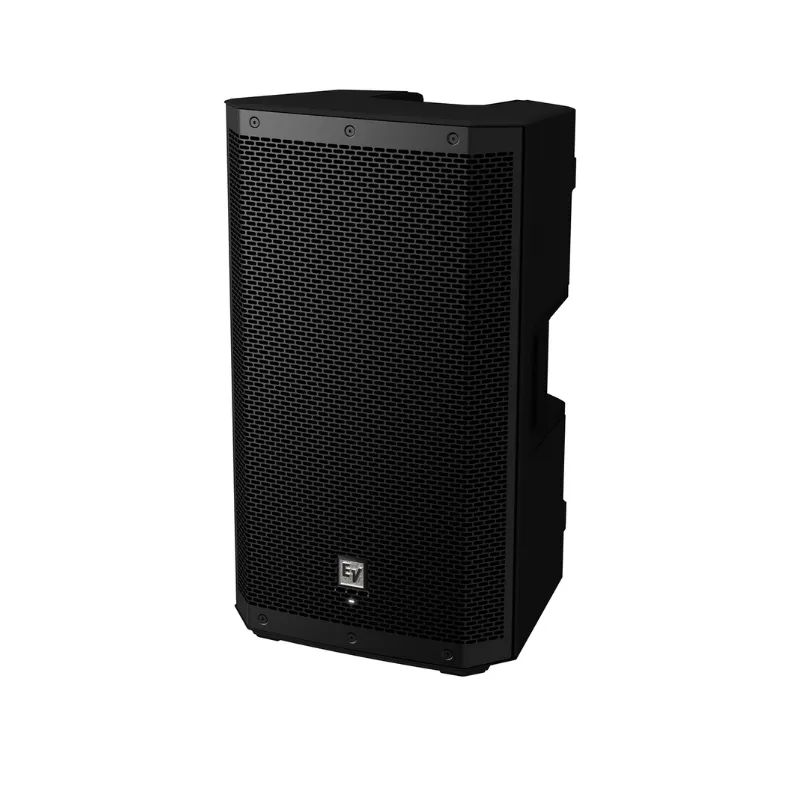

EV-ZLX-12P Electro Voice Speakers
▪ LCD display and 1-knob DSP control with presets
for precise and speedy setup.
▪ Input level meters and independent amplifier
control to ensure optimal gain structure.
▪ Front LED for “power on” and “limit” indication.
▪ Patented split-baffle design for superior driver time
alignment.
▪ Durable composite construction with innovative
hi/lo grip design for easy pole mounting.
