Frequency response (-3 dB)
|
58 Hz – 18 kHz
|
|
Frequency range (-10 dB)
|
50 Hz – 20 kHz
|
|
Max. Calculated SPL
|
133 dB
|
|
Horizontal coverage
|
90°
|
|
Vertical coverage
|
50°
|
|
LF Amplifier Power
|
1000W RMS
|
|
HF Amplifier Power
|
250W RMS
|
|
LF Transducer
|
DVX3150, 15 in (381mm) Driver
|
|
HF Transducer
|
ND2-16, 1 in (25.4mm) exit Neodymium Compression Driver
|
|
Crossover frequency
|
1.5 kHz
|
|
Input Connector
|
XLR and 1/4” TRS Combination
|
|
Output Connector
|
XLR
|
|
Power Requirement
|
110-130 VAC, 50-60 Hz, or 220-240 VAC, 50-60 Hz
|
|
Enclosure
|
Polypropylene Structural Foam
|
|
Grille
|
Polyester Powder Coated, 16GA Galvanized Steel, with Rotatable Logo
|
|
Suspension
|
Enclosure has locations for 5 Single-Stud Attachment Plates and 10 Forged Steel Eyebolts – 2 on Top, 2 on Bottom, 2 on Side, and 4 on Rear of Enclosure
|
|
Dimensions (H x W x D)
|
692mm x 446mm x 411mm (27.26” x 17.57” x 16.16”)
|
|
Net weight
|
22.9 kg (50.5 lbs)
|
|
Shipping weight
|
26.7 kg (58.9 lbs)
|
EV-ZXA5-90
WhatsApp For Pricing

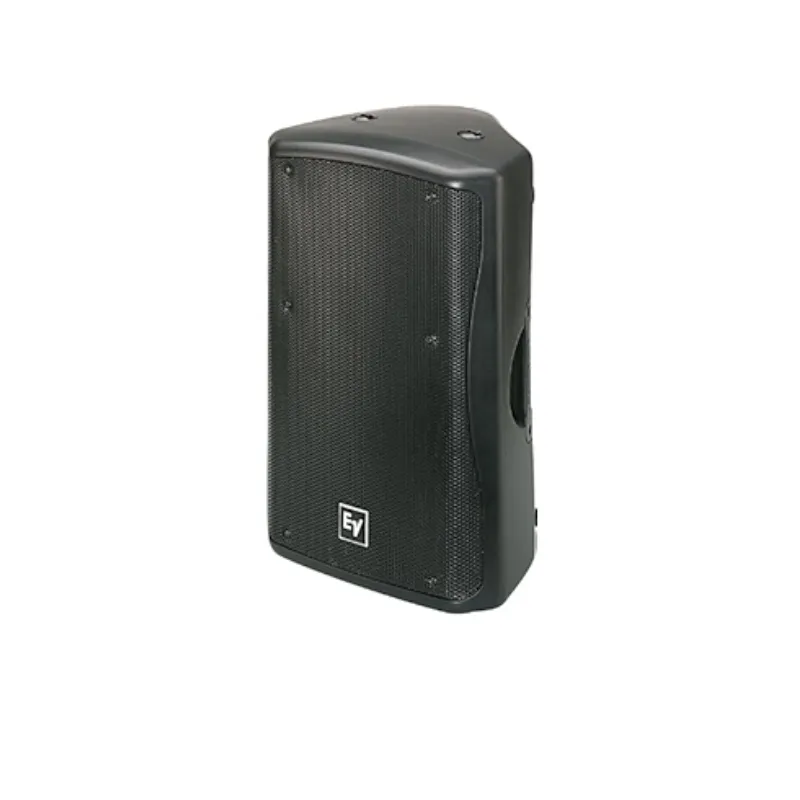

EV-ZXA5-90 Electro Voice Speaker
• Integrated Amplifier with 1000W LF, 250W HF
• Selectable 100 Hz High Pass
• DVX3150 15” LF Transducer with Forced Air
Cooling
• ND2 2” Voice Coil, 1” Exit Neodymium
Compression Driver
• 90° x 50° Coverage Pattern
• High Sensitivity, 133 dB Maximum SPL
• Adjustable Monitor Angle (45° or 55°)
• 3 Anchor Plates for Single Stud Fittings and
10 Integral Suspension Points
• Full Line of Accessories
• PowerCon Connector with Slave Through
