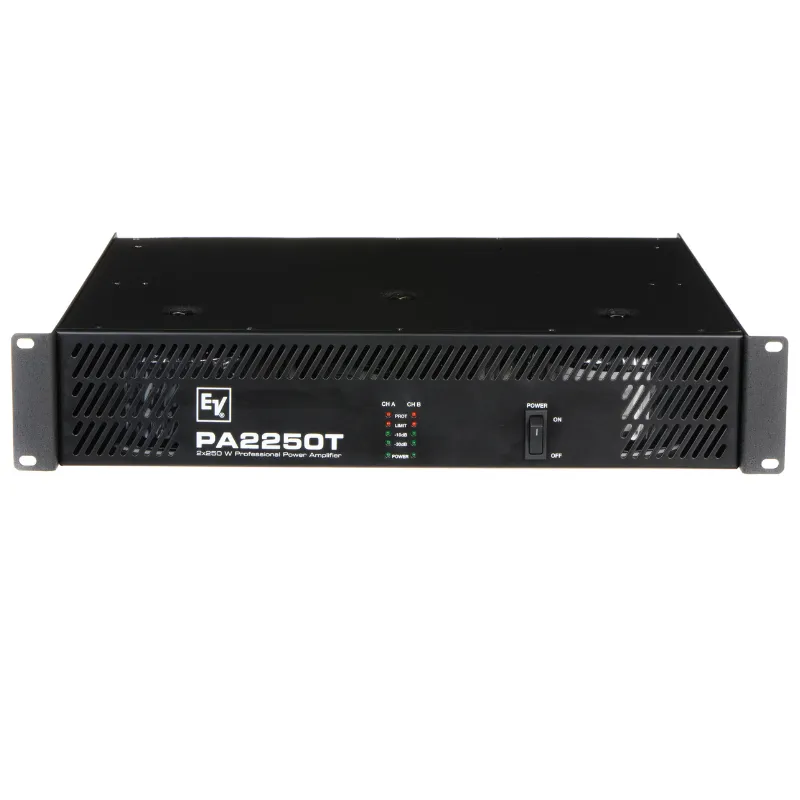

PA-2250T

WhatsApp For Pricing

• 2 x 270W at 70V or 270W at
4 Ohms
• 2 U Rack Space Chassis
• Stepped Rear Level Controls
• Bridge Mode Operation Provides
1 x 540W at 8 ohms
• Complete Protection Package
• Selectable 50Hz or 300Hz Hi-Pass
Filter for each Channel
• Phoenix Type Inputs
• Phoenix Type Outputs
• High Efficiency Circuit Design
• Front Panel Power On/Off

Share it:
Features
Related Products

Features

EV PA-2250T Dual 250 W/CH power amplifier

Number of Channels
2
Load Impedance
8 Ohm
4 Ohm
70V
Rated Output Power (*Rated Load) THD<1%, 1kHz
135W
270W
270W
Rated Output Power (*Rated Load) THD<0.2%, 20Hz. 20kHz
125W
250W
250W
Slew Rate at 1kHz.
18V/us
4 1V/ps
Frequency Response, -1dB, Ref. 1kHz
65Hz – 40kHz
|65Hz – 20kHz
Damping factor, at 100Hz / 1kHz 4 Ohm
>250
N/A
Power Bandwidth THD=1%, Ref. 1kHz, Half Power
45Hz – >20kHz
Input Impedance, 20Hz .. 20kHz, Balanced
>20kOhm
Signal-to-Noise Ratio, A-Weighted
103 dB
Input Sensitivity at Rated Output Power or Voltage, 1kHz
0dBu (775mV)
THD at rated output power, MBW=80kHz, 1kHz
<01%
IMD-SMPTE, 60Hz, 7kHz
<01%
DIM30, 3.15kHz, 15kHz
<01%
Crosstalk, Ref. 1kHz, at 10% Rated Output Power
<75d8
Power Requirements
120V or 230V, 50Hz – 60Hz
Protection
Audio Limiters High Temperature Peak Current Limiters Turn-On Delay
Cooling
Frontto-Rear
Dimensions (W x H x D), mm
483 x 88 x 406mm (2Ru) 19″x35″x 16″
Weight
23.5kg (51.76lbs)
