Frequency response (-3 dB)
|
100 Hz – 20 kHz1
|
|
Frequency response (-10 dB)
|
75 Hz – 20 kHz1
|
|
Sensitivity
|
86.5 dB2
|
|
Max SPL (calculated)
|
98.5 dB (104.5 dB Peak)
|
|
Coverage angle
|
Horizontal 110°, Vertical 110°
|
|
Power handling
|
15 W (60 W Peak) Continuous Pink Noise (100 hours)
|
|
Low Z
|
No
|
|
Recommended High-Pass
|
70 Hz (24 dB/octave)
|
|
Input transformer (70 V/100 V)
|
15 W
|
|
Transformer taps
|
70 V: 3.7 W, 7.5 W, 15 W 100 V: 7.5 W, 15 W
|
|
LF transducer
|
4 inch (102 mm)
|
|
HF transducer
|
0.75 inch (20 mm)
|
|
Connectors
|
Captive screws on wall bracket. Max. wire size 12AWG (2.5 mm).
|
|
Environmental
|
IP54 (per IEC-60529)
|
|
Color
|
Black (RAL 9004) or white (RAL 9003)
|
|
Dimensions (H x W x D)
|
193 mm x 140 mm x 118 mm (7.6 in x 5.5 in x 4.7 in)3
|
|
Net weight
|
1.8 kg (4.0 lb)
|
|
Shipping weight (pair)
|
5.4 kg (11.9 lb)
|
|
Included hardware
|
Mounting bracket and 4-mm Allen wrench
|
|
Packaged quantity
|
2
|
EV-EVID-S4.2TW
WhatsApp For Pricing

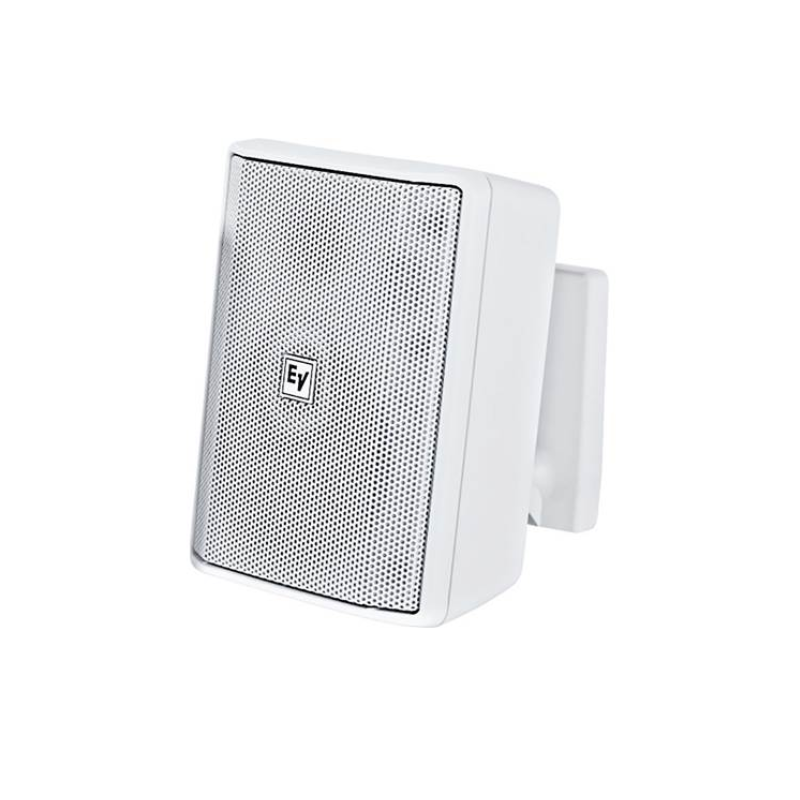

EV-EVID-S4-2TW Electro Voice Speaker
▪ Innovative mount system is included for quick,
simple, and reliable installations
▪ Carefully engineered for outdoor environments
(IP54), without compromising performance
▪ Long throw 4″ (102 mm) woofer housed in a fire
rated ABS plastic enclosure for extended LF
performance down to 75 Hz
