Frequency response (-3 dB)1
|
60 Hz – 20 kHz
|
|
Frequency response (-10 dB)1
|
48 Hz – 20 kHz
|
|
Rec. Hipass Frequency
|
40 Hz
|
|
Axial Sensitivity1
|
92 dB (1W/1m)
|
|
Axial Sensitivity1
|
80 dB (1W/4m)
|
|
Max calculated SPL (1m)1
|
121dB
|
|
Max calculated SPL (4m)1
|
109 dB
|
|
Coverage (H x V)
|
100 x 100
|
|
Rated system power
|
200 W cont.2, 400 W prog., 800 W peak
|
|
LF Transducer
|
EV8L, 203 mm (8 in) driver
|
|
HF Transducer
|
DH2005, 25 mm (1 in) exit compression driver
|
|
Crossover Frequency
|
1.7 kHz
|
|
Nominal Impedance
|
8 Ohms
|
|
Minimum impedance
|
6 Ω
|
|
“T” version transformer taps rated impedance
|
100 V: 12.5W – 800Ω 25W – 400Ω 50W – 200Ω 100W – 100Ω Bypass – 8 Ω 70V: 6.5W – 800 Ω 12.5W – 400 Ω 25W – 200 Ω 50W – 100 Ω 100W – 49 Ω Bypass – 8 Ω
|
|
Connectors
|
4-Pin Phoenix connector
|
|
Enclosure Material
|
ABS resin
|
|
Suspension
|
Integrated QuickSAM heavy-duty strong-arm mounting bracket
|
|
Grille
|
Polyester powder coated, 18GA galvanized steel
|
|
Operational Ambient Temperature Range
|
-30° C to 45° C (-22° F to 113° F)
|
|
Ingress Protection (IEC 529)
|
IP55
|
|
Color
|
Black or white
|
|
Dim (Hx W x D)
|
451 mm x 282 mm x 263 mm (18 in x 11 in x 10 in)
|
|
Net weight
|
8.4 kg (18.5 lb) without transformer 10.4 kg (23.0 lb) with transformer
|

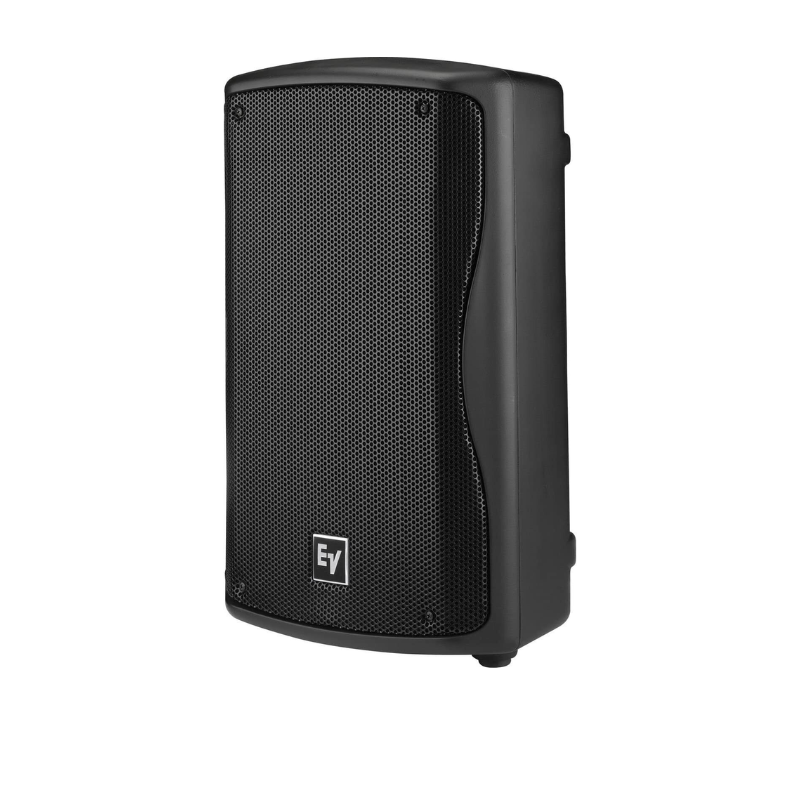

EV-ZX1i-100
WhatsApp For Pricing
EV-ZX1i-100 Electro Voice Speaker
▪ Integrated QuickSAM Heavy-Duty Strong-Arm
Mounting Bracket Included
▪ Patented ASC (Automatic Saturation
Compensation) on Transformer Versions
▪ EV8L 8 inch Weatherized Cone High-Output LF
Transducer
▪ DH2005 1 inch Exit True Compression Driver
▪ EN54-24 type B certification 1438/CPR/0323
with TC-ZX1i cover (Sold separately) installed
