Frequency response (-3 dB)
|
60 Hz – 19 kHz
|
|
|
Frequency range (-10 dB)
|
42 Hz – 20 kHz
|
|
|
Recommended high-pass frequency
|
45 Hz
|
|
|
Axial sensitivity
|
104 dB (1W/1m)
|
|
|
Max. Calculated SPL2
|
129 dB Continuous, 135 dB Peak
|
|
|
Horizontal coverage
|
90°
|
|
|
Vertical coverage
|
6°
|
|
|
Power handling
|
350W Continuous, 1400W Peak
|
|
|
LF transducer
|
(2) EVS2008, 8 in (203mm) Driver
|
|
|
HF transducer
|
(4) DH2005, 1.25 in (32mm) Diaphragm Compression Driver
|
|
|
Crossover frequency
|
1740 kHz
|
|
|
Nominal impedance
|
16 Ohm
|
|
|
Minimum impedance
|
12 Ohms
|
|
|
Connectors
|
(2) 4 Contact 10 AWG Phoenix/ EuroBlock Style Screw Terminals
|
PI Version – Gland Nut with Included Input Panel Cover
|
|
Enclosure
|
Plywood with EVCoatTM
|
|
|
Grille
|
16 GA Galvanneal, Powdercoated
|
PI Version – Stainless Steel with Hydrophobic Cloth
|
|
Suspension
|
EVA Grid (Sold Separately)
|
|
|
Environmental
|
IEC 60529 IP55 for PI and FG versions
|
|
|
Dimensions (H x W x D)
|
20.25” x 23.50” x 14.10” (514.4mm x 596.9mm x 358.2mm)
|
|
|
Net weight
|
79.1 lbs (35.9 kg)
|
|
|
Shipping weight
|
89.4 lbs (40.5 kg)
|
EV-EVA-2082S
WhatsApp For Pricing

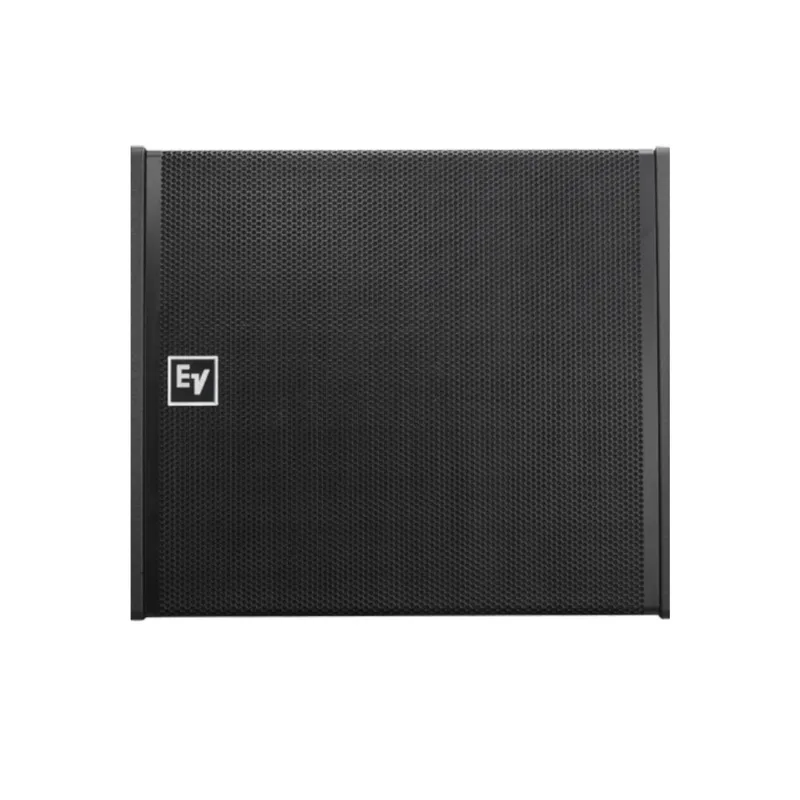

EV-EVA-2082S Electro Voice Speaker
• True Line Array Performance
• 90° Horizontal Coverage Pattern
• 6° Vertical Coverage Pattern
• 104 dB Sensitivity
• Hidden Suspension Hardware (Included) is
Architecturally Pleasing
• 3 Finishes Available – Indoor, PI, and
Fiberglass
• EVADA (EVA Design Assistant) Software Tool
• Single Amplifier Channel Drive Configuration
for Entire Array
• Advanced 6th Order Crossover Network with
HF Protection
