| Frequency response (-3 dB) | 52 Hz – 19 kHz1 |
| Horizontal coverage | 120° |
| Vertical Coverage | Array dependent |
| Recommended high-pass frequency | 50 Hz |
| Max Calculated SPL | 145 db Peak2 |
| Configuration | Bi-amp |
| LF Transducer | DVN3125, 12-in (305 mm) driver |
| LF Axial Sensitivity | 101 db (1 W/1 m)4 |
| LF Power Handling | 500 W Continuous, 2000 W Peak |
| LF Impedance | 8 Ω (nominal), 6.1 Ω (min) |
| HF Transducer | 2 x ND6A, 3-in (76.2 mm) diaphragm compression driver |
| HF Axial Sensitivity | 111 db (1 W/1 m)4 |
| HF Power Handling | 150 W Continuous, 600 W Peak3 |
| HF Impedance | 8 Ω (nominal), 6.0 Ω (min) |
| Connectors | Dual NL8 type connector |
| Enclosure | 13-ply weather resistant birch with EVCoat |
| Grille | 16 GA powder coated galvanneal |
| Suspension | IRS — Integrated Rigging System |
| Dimensions (H x W x D) | 13.5 in x 28.77 in x 12.04 in (342.9 mm x 730.8 mm x 534.4 mm) |
| Net weight | 93 lb (42.2 kg) |
| Shipping weight | 107 lb (48.5 kg) |
EV-X2-212-120
WhatsApp For Pricing

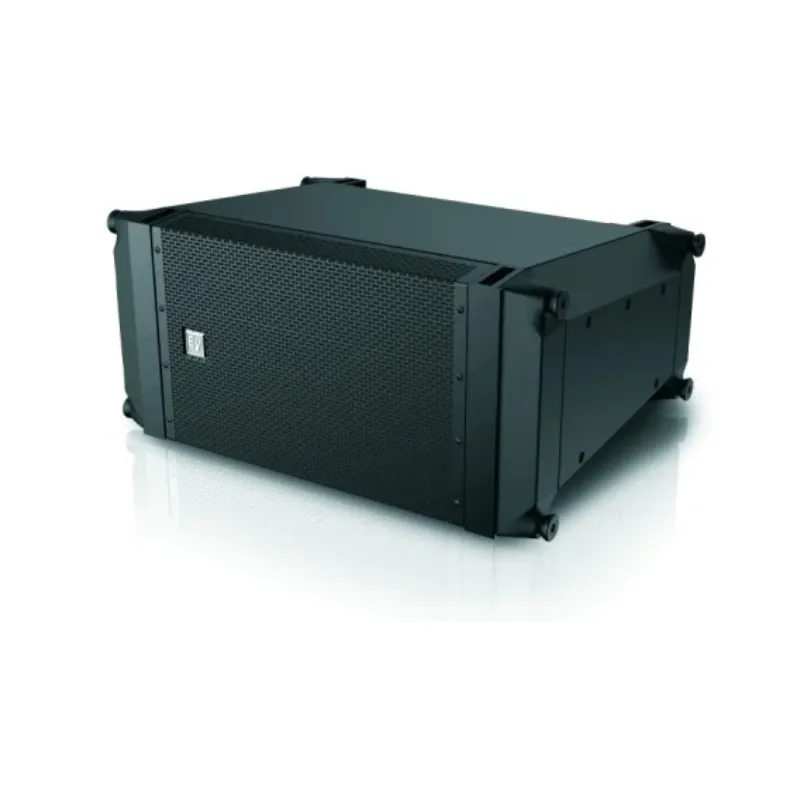

EV-X2-212-120 Electro Voice Speaker
▪ IRS — Integrated Rigging System
â–ª Proprietary EV FIR-Drive
▪ MBH — Mid-Band Hydra Line Source Technology
▪ PDH — Pin Diffraction Hydra
