Model
|
ELX112 (F01U170823)
|
ELX115 (F01U170824)
|
ELX215 (F01U170826)
|
ELX118 (F01U170825)
|
|
Freq. Response (-3 dB)
|
82 Hz – 18 kHz1
|
75 Hz – 18 kHz1
|
62 Hz – 18 kHz1
|
50 Hz – 100 Hz2
|
|
Freq. Range (-10 dB)
|
55 Hz – 20 kHz1
|
50 Hz – 20 kHz1
|
38 Hz – 20 kHz1
|
35 Hz – 200 Hz2
|
|
Axial Sensitivity: 94 dB 95 dB 96 dB 96 dB
|
94 dB
|
95 dB
|
96 dB
|
96 dB
|
|
Max. Measured SPL3
|
132 dB
|
134 dB
|
137 dB
|
134 dB
|
|
Recommended HP Freq
|
45 Hz
|
40 Hz
|
35 Hz
|
30 Hz
|
|
Coverage (Horiz. x Vert.)
|
90° x 50°
|
90° x 50°
|
90° x 50°
|
Omnidirectional
|
|
Power Handling
|
250W Continuous, 1000W Peak
|
400W Continuous, 1600W Peak
|
600W Continuous, 2400W Peak
|
400W Continuous, 1600W Peak
|
|
LF Transducer(s)
|
(1) EVS-12K, 305mm (12”) Woofer
|
(1) EVS-15K, 381mm (15”) Woofer
|
(2) EVS-15K, 381mm (15”) Woofers
|
(1) EVS-18K, 457mm (18”) Woofer
|
|
HF Transducer
|
DH-1K, 39mm (1.5”) Titanium Diaphragm Compression Driver
|
DH-1K, 39mm (1.5”) Titanium Diaphragm Compression Driver
|
DH-1K, 39mm (1.5”) Titanium Diaphragm Compression Driver
|
N/A
|
|
Crossover Frequency
|
2.1 kHz
|
1.7 kHz
|
1.7 kHz
|
N/A
|
|
Nominal Impedance
|
8 Ohms
|
8 Ohms
|
4 Ohms
|
8 Ohms
|
|
Minimum Impedance
|
7.0 Ohms
|
7.4 Ohms
|
3.7 Ohms
|
6.7 Ohms
|
|
Connectors
|
Dual NL4
|
Dual NL4
|
Dual NL4
|
Dual NL4
|
|
Enclosure Material
|
9-ply, 15mm Plywood, Internally Braced, with Texured Paint
|
9-ply, 15mm Plywood, Internally Braced, with Texured Paint
|
9-ply, 15mm Plywood, Internally Braced, with Texured Paint
|
9-ply, 15mm Plywood, Internally Braced, with Texured Paint
|
|
Grille
|
18GA Steel with Black Powdercoat
|
18GA Steel with Black Powdercoat
|
18GA Steel with Black Powdercoat
|
18GA Steel with Black Powdercoat
|
|
Dimensions (H x W x D)
|
607mm x 362mm x 340mm (23.89” x 14.25” x 13.41”)
|
708mm x 432mm x 382mm (27.89” x 17.02” x 15.05”)
|
1154mm x 432mm x 501mm (45.44” x 17.02” x 19.73”)
|
661mm x 507mm x 574mm (26.02” x 19.98” x 22.60”)
|
|
Net Weight
|
16.0 kg (35.2 lbs)
|
21.9 kg (48.2 lbs)
|
40.7 kg (89.6 lbs)
|
30.6 kg (67.4 lbs)
|
|
Shipping Weight
|
19.9 kg (43.8 lbs)
|
26.6 kg (58.6 lbs)
|
48.4 kg (106.6 lbs)
|
37.2 kg (81.9 lbs)
|
|
Accessories
|
TSS-1, Aluminum Tripod Stand TSP-1, Tripod Kit, Includes (2) Tripod Stands and Carrying Case ASP-1, Steel Subwoofer Stand
|
TSS-1, Aluminum Tripod Stand TSP-1, Tripod Kit, Includes (2) Tripod Stands and Carrying Case ASP-1, Steel Subwoofer Stand
|
N/A
|
ASP-1, Steel Subwoofer Stand
|
EV-ELX-112
WhatsApp For Pricing

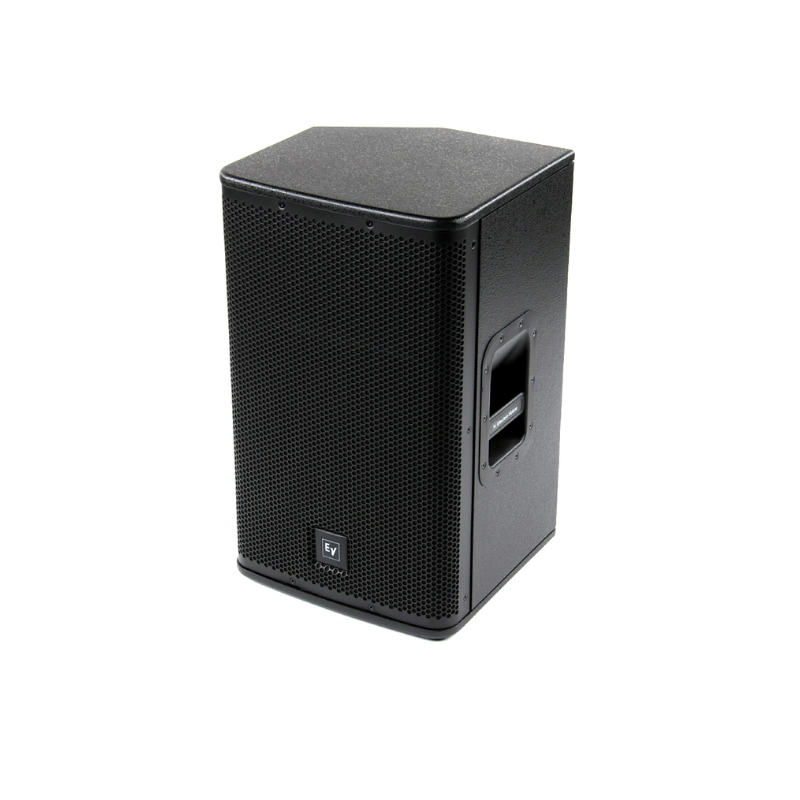

EV-ELX-112 Electro Voice Speaker
Compact power for sound reinforcement and stage monitoring
EVS-12K woofer
1.5-inch DH-1K titanium HF compression driver
55 Hz – 20 kHz frequency range
90° x 50° coverage-pattern waveguide
60° Monitor Angle
94 dB SPL sensitivity; 132 dB max SPL
Power handling: 250 W continuous, 1000 W peak
Braced 15mm plywood enclosure
Pole mount or stack with Live X Subwoofers
Black textured finish
