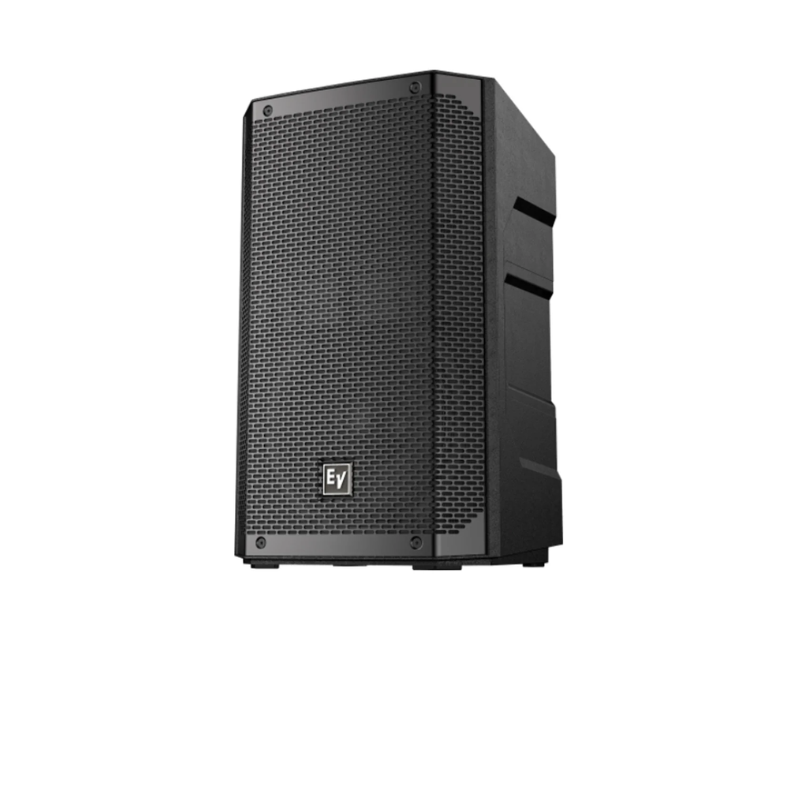

EV-ELX200-10 Electro Voice Speaker ( EV Speakers )

1200 W (Peak), 127 dB peak SPL system that is
reliability verified with over 500 hours of abuse
testing and endurance testing to 4x typical
industry practices.
▪ 1.4 inch DH-1L (1 inch exit) titanium
compression driver for extended transparent
high-frequency response.
▪ High-output EVS-10M woofer designed to
exacting specifications for superior durability
and exceptional low-frequency reproduction.
▪ EV-patented Signal Synchronized Transducers
(SST) waveguide design provides precise and
consistent coverage, minimal distortion, and
maximized acoustical loading.
▪ Professional-grade hardware: three M10
threaded mounting points for forged eyebolts,
integrated pole-mounts and the proven ZLX
two-handle design for easy lifting.

Share it:
Features
Related Products

Features

Frequency response (-3 dB)1
65 Hz – 20 kHz
Frequency range (-10 dB)1
49 Hz – 22 kHz
Axial sensitivity1
90 dB
Maximum SPL1,2
127 dB
Rec. high-pass frequency
55 Hz
Coverage (H x V)
90˚ x 60˚
Power handling
300 W Continuous, 1200 W Peak
LF transducer
EVS-10M 254 mm (10 in)
HF transducer
DH-1L 1-inch titanium compression driver
Crossover frequency
2 kHz
Nominal impedance
8 Ω
Minimum impedance
7.2 Ω
Connectors
Dual NL4
Enclosure
Polypropylene
Grille
18 AWG steel with powdercoat
Suspension
(3) M10 suspension points
Color
Black or white
Dimensions (H x W x D)
531 mm x 330 mm x 319 mm (21.0 in x 13.0 in x 12.6 in)
Net weight
13.4 kg (29.6 lb)
Shipping weight
15.3 kg (33.7 lb)
