System Configuration
|
Subwoofer (requires active electronic filtering)
|
|
Frequency Response (-10 dB)
|
31 Hz – 250 Hz
|
|
Recommended High-Pass Frequency
|
35 Hz, 12 dB/octave minimum
|
|
Axial Sensitivity, SPL
|
102 dB (1 watt@1m)
|
|
Max Calculated SPL
|
139 dB (1 watt@1m)
|
|
Long-Term Power Handling
|
1,200 watts
|
|
Short-Term Power Handling
|
4,800 watts
|
|
Transducers
|
(2) EVX180B Cast Frame 18-inch Woofer, 4-inch Voice Coil
|
|
Recommended Crossover Frequency Range
|
80 – 120 Hz, 24 dB/octave
|
|
Nominal Impedance
|
4 Ω
|
|
Enclosure Material
|
13-Ply Birch Plywood
|
|
Grille
|
Powder-Coated Steel, Fabric Backed
|
|
ecommended Controller
|
AC-One or EV Dx46
|
|
Input Connectors
|
(2) Neutrik Speakon NL4’s
|
|
Dimensions (H x W x D)
|
39.98 in x 22.05 in x 23.77 in (1015 mm x 560 mm x 603 mm)
|
|
Net Weight
|
150 lb (68 kg) (each)
|
|
Shipping Weight
|
160 lb (73 kg)
|

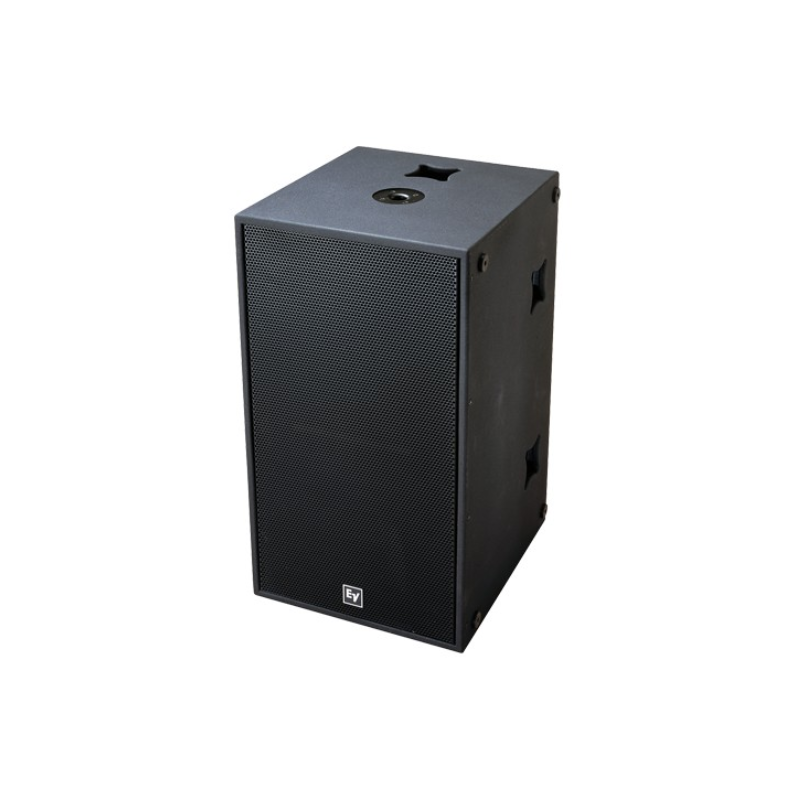

EV-QRx 218S
WhatsApp For Pricing
EV-QRx-218S Electro Voice Speaker
▪ EVX-180B woofers for superior linear excursion and
High-level extended Low Frequency
▪ Available in Standard and Riggable (L-Track)
versions
▪ Power handling: 1200 W continuous, 4800 W peak
▪ EV comfort-lift handles
▪ Integrated pole-mount receptacle and sealed pocket
wheels (Standard model only)
