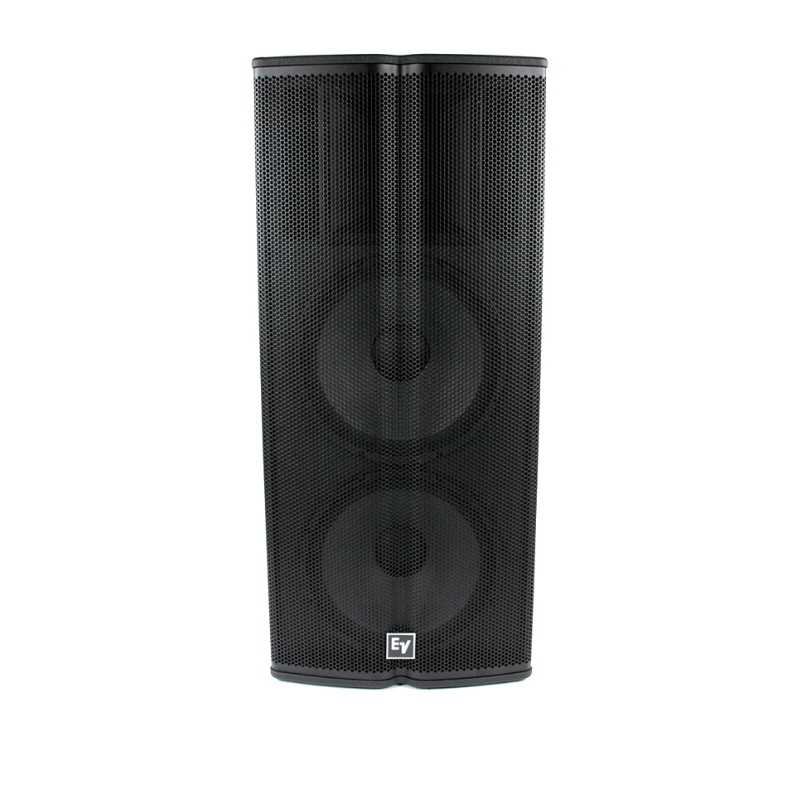

SP-4 1000 Watt EV TX-2152
|
Frequency response (-3 dB)
|
55 Hz – 13 kHz1
|
|
Frequency range (-10 dB)
|
50 Hz – 18 kHz1
|
|
Recommended high-pass frequency
|
40 Hz
|
|
Axial sensitivity
|
103 dB (1W/1m)
|
|
Max calculated SPL
|
139 dB
|
|
Horizontal coverage
|
60° or 40°
|
|
Vertical coverage
|
40° or 60°
|
|
Power handling
|
1000 W continuous, 4000 W peak
|
|
LF transducer
|
(2) SMX2151’s, 15 in (381 mm) drivers
|
|
HF transducer
|
ND2-8, 2 in (51 mm) diaphragm compression driver
|
|
Crossover frequency
|
1750 Hz
|
|
Nominal impedance
|
4 Ohm
|
|
Minimum impedance
|
3.1 Ohm
|
|
Connectors
|
(2) Neutrik Speakon NL4’s
|
|
Enclosure
|
Plywood and MDF with EVCoat
|
|
Grille
|
16 GA steel, black powdercoat, with rotatable logo
|
|
Suspension
|
(6) M10 threaded points – (2) on each side and (2) on the rear of enclosure
|
|
Color
|
Black
|
|
Dimensions (H x W x D)
|
45.4 in x 20.0 in x 18.5 in (1154 mm x 508 mm x 471 mm)
|
|
Net weight
|
94.3 lb (42.8 kg)
|
|
Shipping weight
|
105.8 lb (48.0 kg)
|
