Frequency response (-3 dB)
|
55 Hz – 20 kHz1
|
|
Frequency range (-10 dB)
|
40 Hz – 20 kHz1
|
|
Recommended high-pass frequency
|
40 Hz
|
|
Axial sensitivity
|
100 dB (1W/1m)
|
|
Max calculated SPL
|
133 dB
|
|
Horizontal coverage
|
60° or 40°
|
|
Vertical coverage
|
40° or 60°
|
|
Power handling
|
500 W continuous, 2000 W peak
|
|
LF transducer
|
SMX2151, 15 in (381 mm) driver
|
|
HF transducer
|
DH3, 1.25 in (32 mm) diaphragm compression driver
|
|
Crossover frequency
|
1650 Hz
|
|
Nominal impedance
|
8 Ohm
|
|
Minimum impedance
|
5.6 Ohm
|
|
Connectors
|
(2) Neutrik Speakon NL4’s
|
|
Enclosure
|
Plywood and MDF with EVCoat
|
|
Grille
|
16 GA steel, black powdercoat, with rotatable logo
|
|
Suspension
|
(6) M10 threaded points – (2) on each side and (2) on the rear of enclosure
|
|
Color
|
Black
|
|
Dimensions (H x W x D)
|
30.6 in x 17.5 in x 17.5 in (776 mm x 446 mm x 446 mm)
|
|
Net weight
|
61.2 lb (27.8 kg)
|
|
Shipping weight
|
68.7 lb (31.2 kg)
|
EV-TX1152
WhatsApp For Pricing

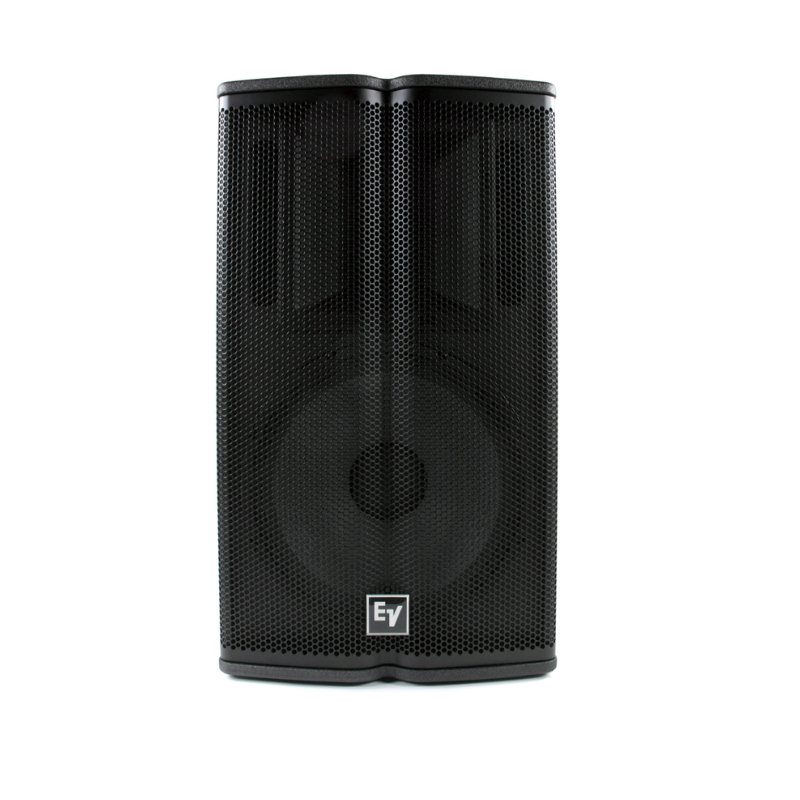

EV-TX1152 Electro Voice Speaker
▪ DH3 1.25 inch (32 mm) Diaphragm, 1 inch (25
mm) Exit Pure Titanium Compression Driver
▪ SMX2151 15 inch (381 mm) LF Transducer with
Fully Symmetric Drive
▪ 60° x 40° Rotatable Coverage Pattern
▪ 100 dB Sensitivity, 133 dB Maximum SPL
▪ 500 W Continuous (2000 W Peak) Power
Handling
