Frequency response (-3 dB)
|
58 Hz – 15 kHz
|
|
Frequency range (-10 dB)
|
48 Hz – 20 kHz
|
|
Recommended high-pass frequency
|
50 Hz
|
|
Axial sensitivity
|
97 dB (1W/1m)
|
|
Max calculated SPL
|
131 dB
|
|
Horizontal coverage
|
90° x 50°
|
|
Vertical coverage
|
90° x 50°
|
|
Power handling
|
600W Continuous, 2400W Peak
|
|
LF Power Handling (Biamp)
|
500W Continuous, 2000W Peak
|
|
HF Power Handling (Biamp)
|
40W Continuous, 160W Peak
|
|
LF transducer
|
DVX3121, 12 in (305mm) Driver
|
|
HF transducer
|
ND2, 1 in (25.4mm) exit Neodymium Compression Driver
|
|
Crossover frequency
|
2 kHz
|
|
Nominal impedance
|
8 Ohm
|
|
Minimum impedance
|
6.2 Ohm
|
|
Connectors
|
2 Conductor SJO Cable and Gland Nut
|
|
Enclosure
|
Polypropylene Structural Foam
|
|
Grille
|
Polyester Powder Coated, 16GA Galvanized Steel, with Rotatable Logo
|
|
Suspension
|
Enclosure has locations for 4 Single-Stud Attachment Plates and 7 Forged Steel Eyebolts – 2 on Top, 2 on Bottom, 2 on Side, and 1 on Rear of Enclosure
|
|
Environmental Spec
|
IEC 529 IP24 / IP44
|
|
Dimensions (H x W x D)
|
613mm x 397mm x 362mm (24.14” x 15.64” x 14.26”)
|
|
Net weight
|
19.8 kg (43.7 lbs)
|
|
Shipping weight
|
22.1 kg (48.6 lbs)
|

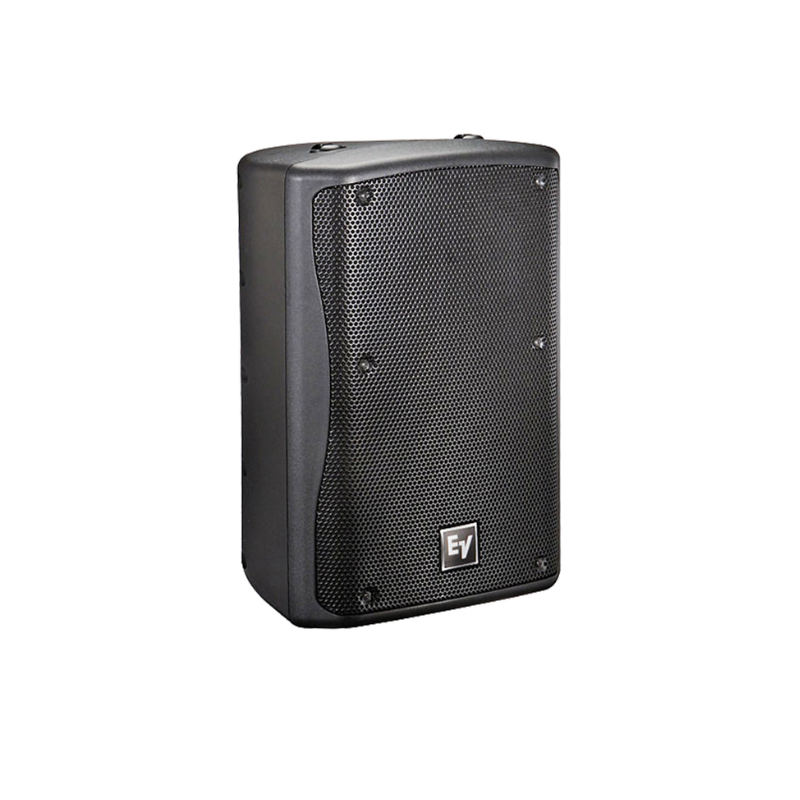

EV-ZX3-90
WhatsApp For Pricing
EV-ZX3-90 Electro Voice Speaker
• DVX3121 12” LF Transducer with Forced Air
Cooling
• ND2 2” Voice Coil, 1” Exit Neodymium
Compression Driver
• 90° x 50° Coverage Pattern
• 600W Continuous (2400W Peak) Power
Handling
• High Sensitivity, 131 dB Maximum SPL
• Adjustable Monitor Angle (45° or 55°)
• 2 Anchor Plates for Single Stud Fittings and
7 Integral Suspension Points
• Available in Black or White
• All Weather IEC 529, IP44, & MIL810
Environmental Specs
• Full Line of Accessories
