Frequency response (-3 dB)
|
58 Hz – 18 kHz
|
|
Frequency range (-10 dB)
|
39 Hz – 20 kHz
|
|
Recommended high-pass frequency
|
36 Hz
|
|
Axial sensitivity
|
98 dB (1W/1m)
|
|
Max calculated SPL
|
132 dB
|
|
Horizontal coverage
|
90°
|
|
Vertical coverage
|
50°
|
|
Power handling
|
600W Continuous, 2400W Peak
|
|
LF Power Handling (Biamp)
|
500W Continuous, 2000W Peak
|
|
HF Power Handling (Biamp)
|
40W Continuous, 160W Peak
|
|
LF transducer
|
DVX3150, 15 in (381mm) Driver
|
|
HF transducer
|
ND2, 1 in (25.4mm) exit Neodymium Compression Driver
|
|
Crossover frequency
|
1.5 kHz
|
|
Nominal impedance
|
8 Ohm
|
|
Minimum impedance
|
6.5 Ohm
|
|
Connectors
|
2 Conductor SJO Cable and Gland Nu
|
|
Enclosure
|
Polypropylene Structural Foam
|
|
Grille
|
Polyester Powder Coated, 16GA Galvanized Steel, with Rotatable Logo
|
|
Suspension
|
Enclosure has locations for 5 Single-Stud Attachment Plates and 10 Forged Steel Eyebolts – 2 on Top, 2 on Bottom, 2 on Side, and 4 on Rear of Enclosure
|
|
Environmental Spec
|
IEC 529 IP24 / IP44 (PI Version)
|
|
Dimensions (H x W x D)
|
692mm x 446mm x 411mm (27.26” x 17.57” x 16.16”)
|
|
Net weight
|
22.2 kg (49.0 lbs)
|
|
Shipping weight
|
26.0 kg (57.4 lbs)
|
EV-ZX5-90PI
WhatsApp For Pricing

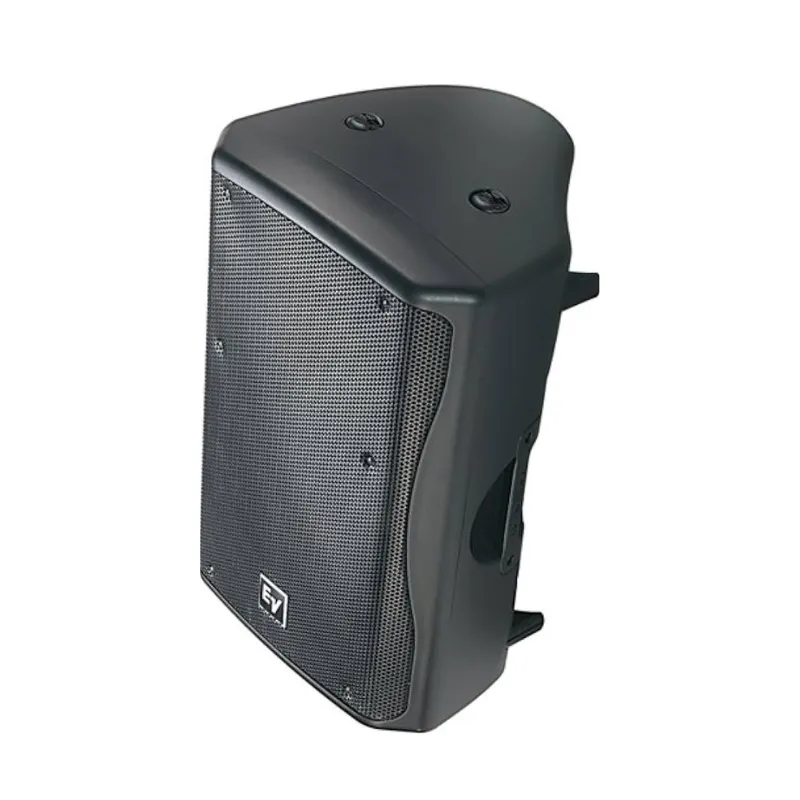

EV-ZX5-90PI Electro Voice Speaker
• All Weather IEC 529, IP44, & MIL810
Environmental Specs
• DVX3150 15” LF Transducer with Forced Air
Cooling
• ND2 2” Voice Coil, 1” Exit Neodymium
Compression Driver
• 90° x 50° Coverage Pattern
• 600W Continuous (2400W) Power Handling
• High Sensitivity, 132 dB Maximum SPL
• 3 Anchor Plates for Single Stud Fittings and
10 Integral Suspension Points
• Complete Mounting Solutions
