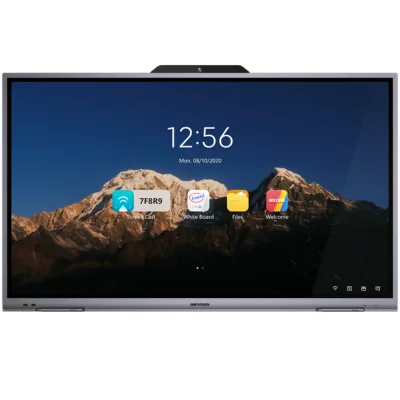

86 Inch Hikvision Interactive Display

WhatsApp For Pricing

86 inch Hikvision Interactive Display

  • 86 inch Hikvision Interactive Display, with Ultra HD display with up to 3840 × 2160 input signal resolution available.
  •  20px ultra-fine writing and 2 mm diameter are recognizable with a precision of 1 mm.
  •  Built-in Wi-Fi is miraculous without any cable connection.
  •  A built-in Hikvision Interactive Display system allows for annotating and sharing by QR code.
  •  Looping-out display available.
  •  Various audio and video interfaces for device access.
  •  Built-in network switch module saves a network switch.
  •  Built-in Android system provides kinds of applications.
  •  Compatible with OPS/OPS-C devices, realizing smooth switch between built-in systems.
  •  Ultra-thin design with aluminum profile frame
Share it:
Features
Related Products

Features

86 Inch Hikvision Interactive Display

The 86 Inch Hikvision Interactive Display conference Flat Panel integrates functions of computers, projectors, Hikvision Interactive Display, sound boxes, cameras (optional), Bluetooth remote control (optional), HDTVs, advertising machines, and so on.
The device integrates technologies like a 4K display, infrared touch, human-machine interaction, multi-media information processing, and network transmission and provides users with various features such as writing, annotating, multi-screen sharing, pen detection, and remote video call (optional). The Conference Hikvision Interactive Display is mainly used for remote video conferences, training and guidance, medical consulting, and other events in kinds of offices, meeting rooms, multi-media classrooms, exhibition halls, and so on. 4KHikvision Interactive Displays in Pakistan offer stunning visual clarity and advanced touch technology, making them ideal for enhancing learning and collaboration in classrooms and offices.

Model DS-D5B86RB/D
Screen Size 86 inch LED Backlight
Backlight DLED
Pixel Pitch 0.164 (H) × 0.493 (V) mm
Resolution 3840 x 2160@60 Hz
Brightness 350 cd/m*
Color Depth 10 bit
Contrast Ratio 1200 : l  (Typ.)
Response time 6 ms
Color Gamut 90% NTSC (CIE1931) (Typ.)
Refresh Rate 60 Hz
Viewing Angle 178° (H) / 178° (V)
Built-in System Android 11
Processor A72*2 + A53*4, 1.8 GHz
Memory 4 GB
Built-in Storage 64 GB
NIC Built-in 1000 Mbps NIC, supporting routing; IEEE 802.11 a/b/g/n/ac with 2 x 2 MIMO, supporting both 2.4 GHz and 5GHz bands
Touch Type Infrared Touch screen
Touch Glass AG Smooth glass
Touch Points Max 45 point multi-touch
Touch Response time less than 10 ms
Touch precision ± 1 mm (≥ 90% touchin
Loud speaker Built-in 2 x 16 W loudspeaker
Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version
Video and Audio Input HDMI IN x 2, MAX 4K @30 Hz, LINE IN x 1
Video and Audio Output HDMI OUT     HDMI 2.0      x 1, MAX 4K @60 Hz, LINE OUT x 1
Control Interface RS-232 x 1, Touch-USB x 1
Network Interface RJ45 (1000 Mbps port) x 2
Data Transmission Interface USB-C    1, USB-A x 2 on front panel, USB-A x 2 on rear panel
Power Consumption ≤ 490 W (full load)
Standby Consumption 0.5 W
Working temperature 0 °C to 40 °C ( 32 °F  to 104 °F)
Working humidity 10% to 90% RH
Power 100 to 240 V, AC, 50/60 Hz
Product dimension 1963 × 1159 × 87.5 mm
Package dimension (W × H × D) 2187 × 1366 × 274 mm
Net Weight 65.12 Kg
Gross Weight 86.24 kg
Life Span 50000 hours
Camera Pixel 8MP
Camera Function Smart switch between Android system and OPS
Field Angle 120°(diagonal), 110°(horizontal), 66°(vertical)
Distortion  <6%
Camera Resolution Ratio Up to 4K
Microphone type Omni-directional 6-array layout
Microphone function Echo reduction and smart noise-cancellation
Microphone Voice Distance 8 m
Sampling Rate 32 K
Microphone Sampling Ration 16 bit

Choose AB Audiovisual to bring the bestHikvision Interactive Display, display technology to your workplace in Pakistan. Please also explore other details of other Hikvision Interactive Displays available here.
