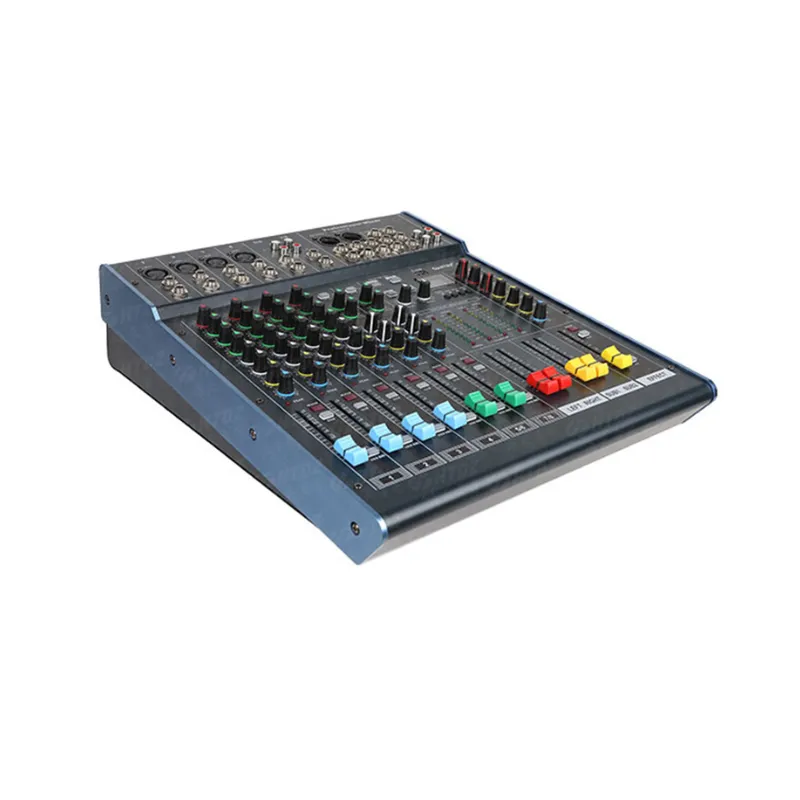

The 8-channel sound mixer HTDZ HT-KF8/2 is the 8-channel mixer, 4-channel mono, 4-channel microphone, and 2-channel stereo input Pre mixing amplifier
console with USB recording. Despite its ultra-compact and small size, the HT-KF8/pre-mixing console provides the
highest sonic quality at all output levels. It provides ultra-low noise operation and it is equipped with the same
chips as the one found in much bigger machines. It is a very affordable and ideal solution for mixing multiple
microphones in small-scale applications.
Maximum Output Level: 19dBm (1kHz, THD=0.5%)
Residual Noise: SNR -75dB
S/N Ratio: 71dB
Phones Output: 40mW (1kHz, THD-0.5%, 200 Ohm)
Mid-EQ: 2.5kHz 15dB
High EQ: 12kHz 15dB
Gain Control: Mono: -55dB~0dB / Stereo: -10dB~0dB
Frequency response: 20Hz~20kHz (+1.0dB, -3dB)
T.H.D: Less than 0.05 (1kHz, 0.775V)
Power consumption: 25W
