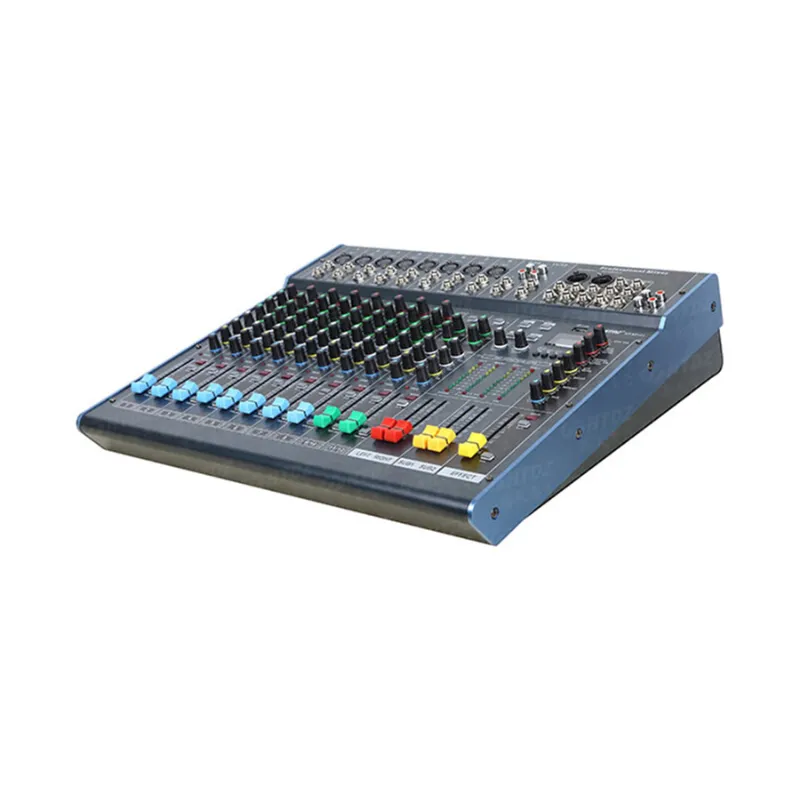

The HTDZ HT-KF12/2 is 4 channels mono, 4 channels microphone and 2 channel stereo input Pre mixing amplifier console with USB recording. Despite its ultra-compact and small size, the HT-KF12-2 pre-mixing console provides the highest sonic quality at all output levels. It provides ultra-low noise operation and it is equipped with the same chips as the ones found in much bigger machines. It is very affordable and ideal solution for mixing multiple microphones in small-scale applications.
Maximum Output level: 19dBm (1kHz, THD=0.5%)
Residual Noise: SNR -75dB
S/N Ratio: 71dB
Phones Output: 40mW (1kHz, THD-0.5%, 200 Ohm)
Mid EQ: 2.5kHz 15dB
High EQ: 12kHz 15dB
Gain Control: Mono: -55dB~0dB / Stereo: -10dB~0dB
Frequency response: 20Hz~20kHz (+1.0dB, -3dB)
T.H.D: Less than 0.05 (1kHz, 0.775V)
Power consumption: 25W
