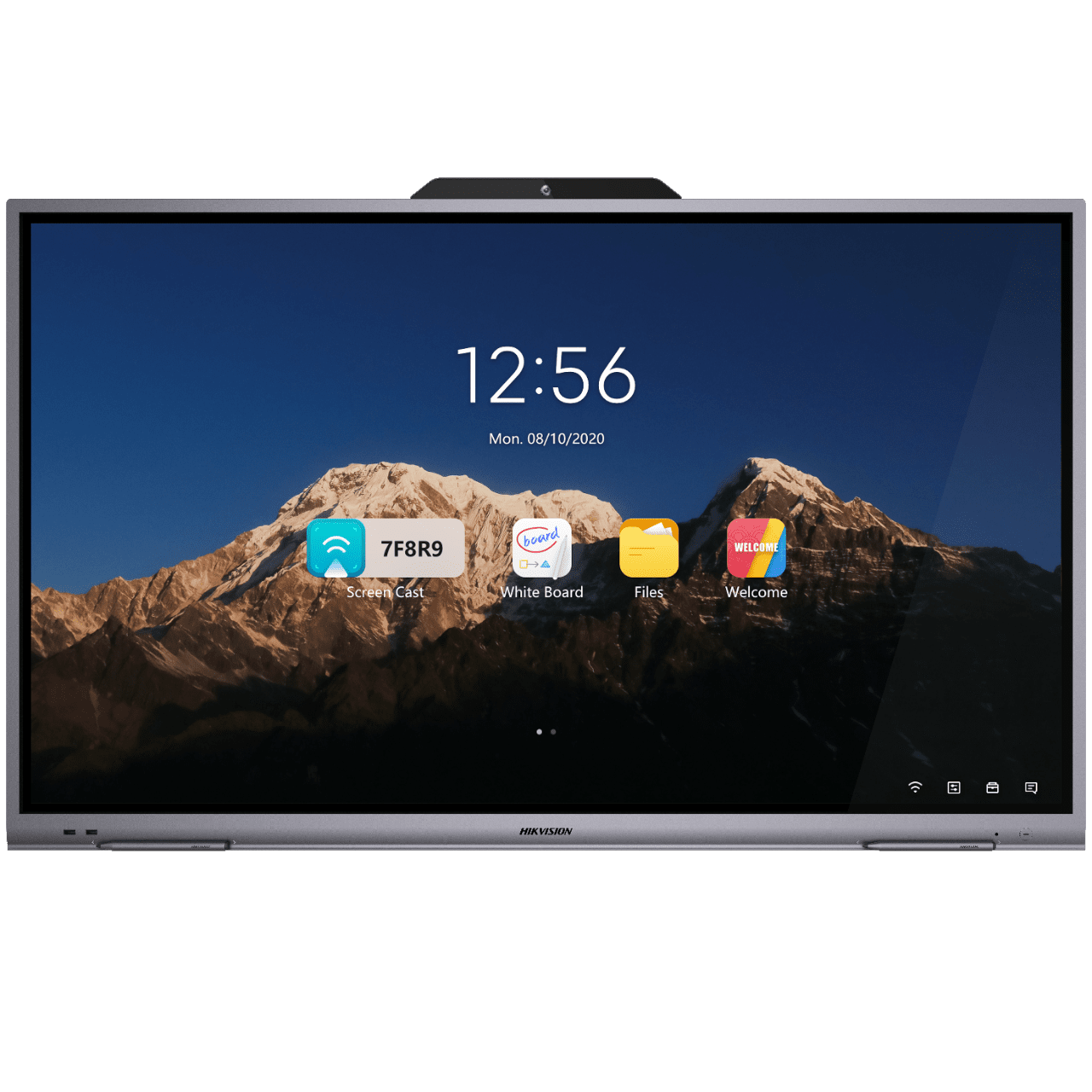

86 Inch Interactive Touch Screen
The Hikvision 86 Inch interactive touch screen conference Flat Panel integrates functions of computers, projectors, interactive whiteboards, sound boxes, cameras (optional), bluetooth remote control (optional), HDTVs, advertising machines and so on.
The device integrates technologies like 4K display, infrared touch, human-machine interaction, multi-media information processing, and network transmission and provides users with various features such as writing, annotating, multi-screen sharing, pen detection and remote video call (optional).The Conference Flat Panel is mainly used for remote video conferences, trainings and guidance, medical consulting, and other events in kinds of offices, meeting rooms, multi-media classrooms, exhibition halls and so on.
| Model | DS-D5B86RB/D |
| Screen Size | 86 inch LED Backlight |
| Backlight | DLED |
| Pixel Pitch | 0.164 (H) × 0.493 (V) mm |
| Resolution | 3840 x 2160@60 Hz |
| Brightness | 350 cd/m* |
| Color Depth | 10 bit |
| Contrast Ratio | 1200 : l (Typ.) |
| Response time | 6 ms |
| Color Gamut | 90% NTSC (CIE1931) (Typ.) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° (H) / 178° (V) |
| Built-in System | Android 11 |
| Processor | A72*2 + A53*4, 1.8 GHz |
| Memory | 4 GB |
| Built-in Storage | 64 GB |
| NIC | Built-in 1000 Mbps NIC, supporting routing; IEEE 802.11 a/b/g/n/ac with 2 x 2 MIMO, supporting both 2.4 GHz and 5GHz bands |
| Touch Type | Infrared Touch screen |
| Touch Glass | AG Smooth glass |
| Touch Points | Max 45 point multi-touch |
| Touch Response time | less than 10 ms |
| Touch precision | ± 1 mm (≥ 90% touchin |
| Loud speaker | Built-in 2 x 16 W loudspeaker |
| Bluetooth | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version |
| Video and Audio Input | HDMI IN x 2, MAX 4K @30 Hz, LINE IN x 1 |
| Video and Audio Output | HDMI OUT HDMI 2.0 x 1, MAX 4K @60 Hz, LINE OUT x 1 |
| Control Interface | RS-232 x 1, Touch-USB x 1 |
| Network Interface | RJ45 (1000 Mbps port) x 2 |
| Data Transmission Interface | USB-C 1, USB-A x 2 on front panel, USB-A x 2 on rear panel |
| Power Consumption | ≤ 490 W (full load) |
| Standby Consumption | 0.5 W |
| Working temperature | 0 °C to 40 °C ( 32 °F to 104 °F) |
| Working humidity | 10% to 90% RH |
| Power | 100 to 240 V, AC, 50/60 Hz |
| Product dimension | 1963 × 1159 × 87.5 mm |
| Package dimension (W × H × D) | 2187 × 1366 × 274 mm |
| Net Weight | 65.12 Kg |
| Gross Weight | 86.24 kg |
| Life Span | 50000 hours |
| Camera Pixel | 8MP |
| Camera Function | Smart switch between Android system and OPS |
| Field Angle | 120°(diagonal), 110°(horizontal), 66°(vertical) |
| Distortion | <6% |
| Camera Resolution Ratio | Up to 4K |
| Microphone type | Omni-directional 6-array layout |
| Microphone function | Echo reduction and smart noise-cancellation |
| Microphone Voice Distance | 8 m |
| Sampling Rate | 32 K |
| Microphone Sampling Ration | 16 bit |
Choose AB Audiovisual to bring the best interactive touch screen display technology to your workplace in Pakistan. Please also explore other details of other interactive touch screen displays available with us.
- 65 Inch Interactive touch Screen Model Hikvision DS-D5B65RB D
- 75 Inch Interactive touch Screen Model Hikvision DS-D5B75RB_D
- 86 Inch Interactive touch Screen Model Hikvision DS-D5B86RB D
- 98 Inch Interactive touch Screen Model Hikvision DS-D5C98RB A
