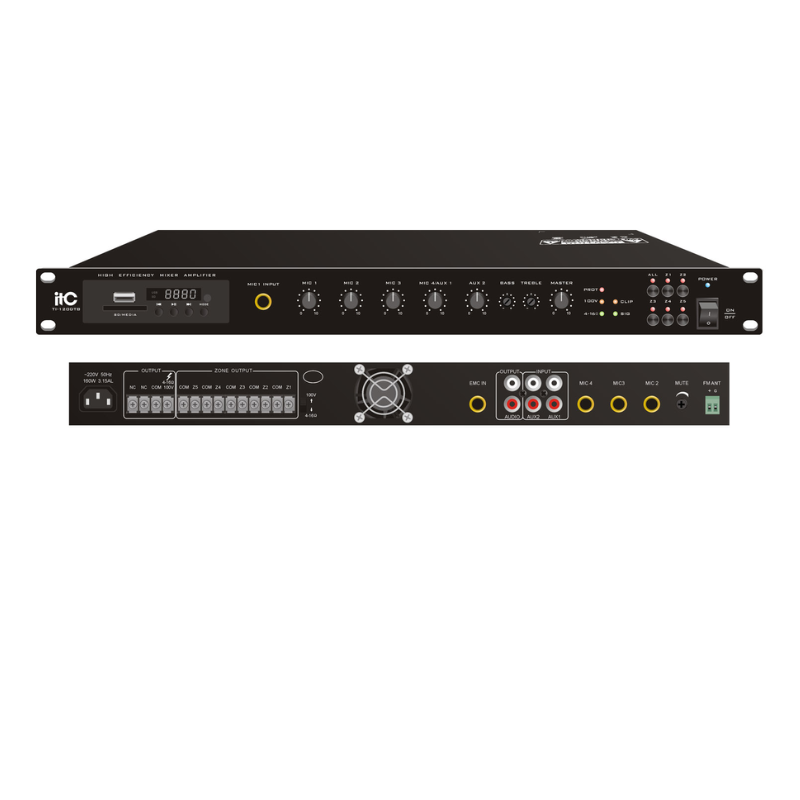

ITC T-240DTB Digital Mixer Amplifier
| Model | T-60DTB | T-120DTB | T-240DTB | T-350DTB | T-500DTB | T-650DTB | |
| Output | 4-16Ω, 100V | ||||||
| RMS Power | 60W | 120W | 240W | 350W | 500W | 650W | |
| Input Sensitivity And
Impedance |
MIC1,2,3,4 input: 5mV / 600Ω unbalanced 6.3 connection terminal; | ||||||
| AUX1,2 input: 350mV / 10KΩ unbalanced RCA connection terminal; | |||||||
| EMC input: 775mv / 10KΩ unbalanced 6.3 connection terminal | |||||||
| Output Sensitivity & Source Impedance | MIX OUT: 1000mV / 470Ω unbalanced RCA connection terminal | ||||||
| Tone | Bass: ± 10dB at 100Hz; | ||||||
| Treble: ± 10dB at 10KHz | |||||||
| Frequency Response | 50Hz ~16KHz (+ 1dB, -3dB) | ||||||
| SNR | MIC1,2,3: 66dB; AUX1,2: 80dB | ||||||
| THD | < 0.5% (at 1KHz, 1/3 rated power) | ||||||
| Mute Function | MIC 1 is prior to MIC2-4, AUX1-2 audio input; EMC is prior to all audio inputs | ||||||
| Channel Crosstalk Attenuation | ≥50dB | ||||||
| Heat Dissipation | Side-in and rear-out forced fan cooling; fan starts automatically when the device is turned on; infinitely variable speed | ||||||
| Protection | Overheat protection, overcurrent protection, short circuit protection | ||||||
| Power Supply | ~ 220 -240V/ 50Hz | ||||||
| Power Consumption | 120W | 180W | 300W | 500W | 650W | 850W | |
| Dimension | 484 ×300 × 44mm | ||||||
| Weight | 3.5Kg | 3.7Kg | 3.8Kg | 4.0Kg | 4.1Kg | 4.3kg | |
