ITC TI-500DTB 5 Zones Digital Mixer Amplifier with Mp3/Tuner/Bluetooth(Phone Jack Mic Input)

WhatsApp For Pricing

• 500 Watt rated power and 5 Speaker Zones
• Standard rack mounted design(1U) with delicate SMT technology
• Support mp3
• Tuner
• Bluetooth remote control function
• Remote control distance can reach 8 meters

Share it:

Features

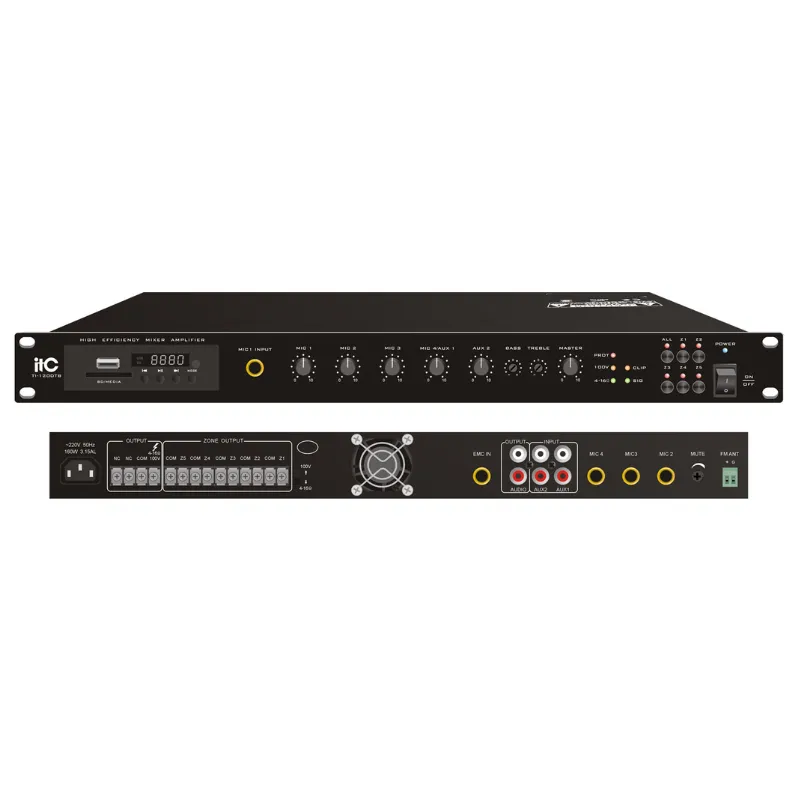

ITC TI-500DTB 5 Zones Digital Mixer Amplifier

Model	TI-120DTB	TI-240DTB		TI-350DTB		TI-500DTB
Output	4-16Ω, 100V
Output Power	120W	240W		350W			500W
Input Sensitivity & Impedance	MIC1, 2, 3, 4 Input:5mV/600Ω Unbalanced 6.3 connector
	AUX1, 2 Input: 350mV/10KΩ Unbalanced RCA connector
	EMC Input: 775mV/10KΩ Unbalanced 6.3 connector
Output Sensitivity & Soure Impedance	MIX OUT:1000mV/470Ω Unbalanced RCA connector

Tone	Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz
Frequency Response	50~16KHz(+1dB,-3dB)
S/N Rate	MIC1, 2, 3: 66dB; AUX1, 2: 80dB
THD	Less than 0.5%(at 1KHz,1/3 Rated Power)
Mute Function	EMC>MIC1>MIC2, MIC3, AUX1, AUX2
Capacity	5 Zones
Channel Crosstalk	≥50dB
Attenuation
Heat Dissipation	The fan starts work when powered on. Winds flank in and out
	from the back, can lead to strong cooling effect.
	with infinitely variable speed.
Protection	Short circuit, overload and overheat
Power Supply	~220-240V /50Hz
Power Consumption	160W		300W		450W			630W
Dimension	484×260×44mm
Weight	3.7Kg		3.8Kg		4.0Kg			4.1Kg
