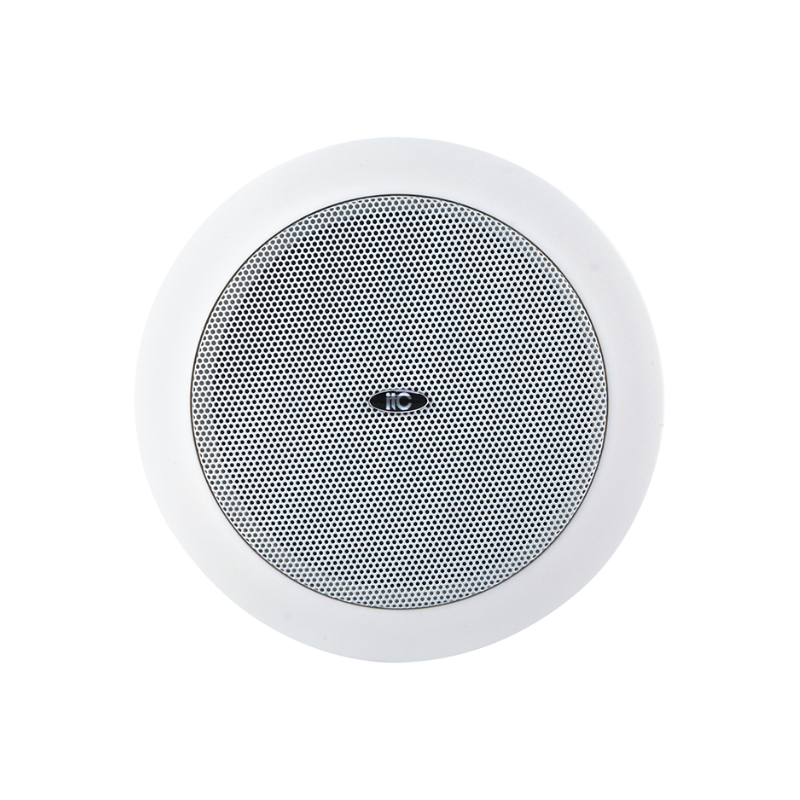

ITC T-106U Ceiling Speaker System
|
Power taps @100V
|
3W, 6W, 9W
|
|
Power taps @70V
|
1.5W, 3W, 4.5W
|
|
Impedance
|
Black: Com Red:3.3KΩ Green:1.7KΩ White:1.1KΩ |
|
SPL(1W/1M)
|
91dB
|
|
Frequency response (-10dB)
|
(-10dB) 80-18KHz
|
|
Speaker driver
|
6″ x 1
|
|
Cutout size
|
170mm
|
|
Dimensions
|
200 x 86mm
|
|
Weight
|
0.9Kg
|
|
Max. SPL (Rated W/1M)
|
101dB
|
|
Finish
|
Baffle: ABS, White Grille: Steel, White
|
|
Mounting
|
ConteSpring-clip
|
