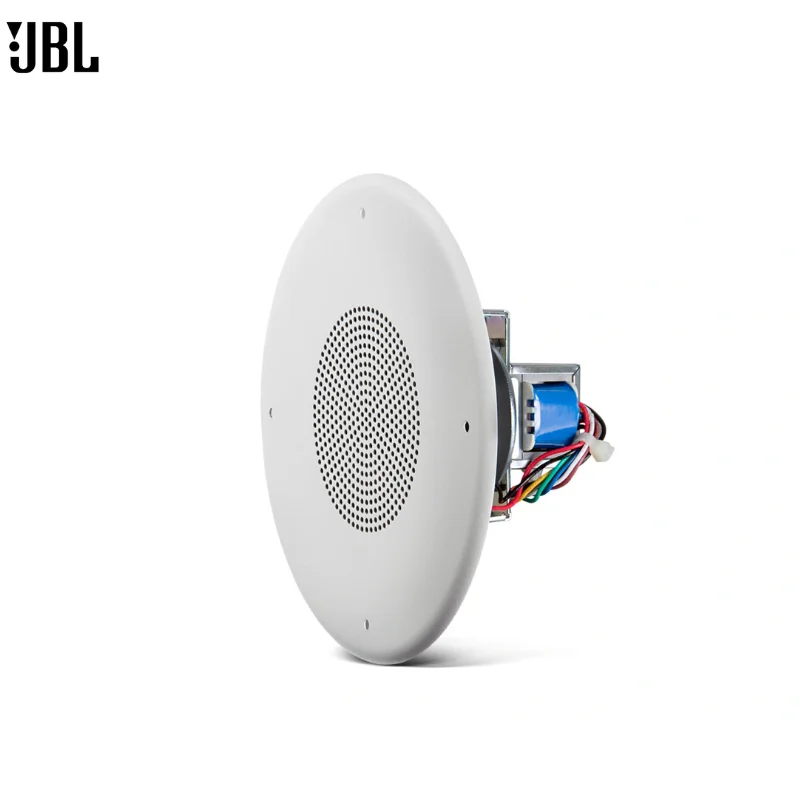

JBL CSS8004 Ceiling Speaker Price in Pakistan
The JBL CSS8004 ceiling speaker is designed for clear background music and paging in commercial venues. Offering high 90 dB sensitivity, wide 175° coverage, and a 5W multi-tap transformer for 100V/70V systems, it delivers excellent performance in restaurants, retail stores, offices, and public spaces. AB Audio Visual Pakistan deals in JBL speakers. Send an email to sales@abaudiovisual.pk and get a free quote!
| Specifications | Details |
|---|---|
| Driver Size | 100 mm (4 in) |
| Sensitivity | 90 dB (2 – 6 kHz) |
| Frequency Range (-10 dB) | 85 Hz – 18 kHz (driver/grille), 130 Hz – 18 kHz (installed in backcan) |
| Coverage Angle | 175° conical |
| Continuous Power Handling | 15 Watts |
| Transformer Taps | 100V: 5W, 2.5W, 1.3W / 70V: 5W, 2.5W, 1.3W, 0.7W / 25V: 5W, 2.5W, 1.3W, 0.7W |
| Maximum SPL (1m) | 97 dB |
| Input Connector | Bare wire |
| Enclosure Material | Formed steel backcan (optional accessory) |
| Baffle / Rim | Metal |
| Ceiling Cutout Size | 125 mm (5.0 in) |
| Depth (behind grille) | 94 mm (3.7 in) |
| Grille Diameter | 198 mm (7.8 in) |
| Net Weight | 0.90 kg (1.0 lb) |
| Shipping Weight | 1.26 kg (2.8 lb) |
| Color | White |
