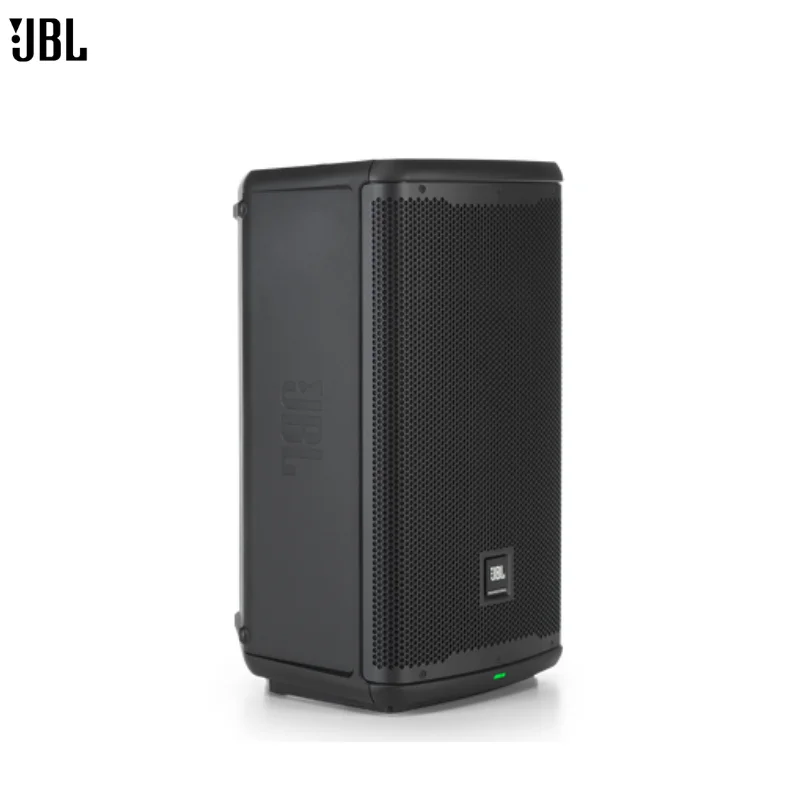

JBL EON710 10-Inch Powered PA Speaker
The JBL EON710 is a compact yet powerful 10-inch powered PA speaker designed for professional performance and portability. Delivering 1,300W of peak power, Bluetooth 5.0 streaming, advanced dbx DSP, and app-based control, it provides clean, consistent sound for events, DJs, schools, and small venues. Get a free quote for JBL PA speakers price in Pakistan.
| Specifications | Details |
|---|---|
| System Type | 10″ Powered Loudspeaker |
| Woofer Model | 710G |
| Woofer Size | 10″ |
| Woofer Magnet | Ferrite |
| Woofer Voice Coil | 2″ |
| Tweeter Model | 2414H Compression Driver |
| Tweeter Size | 1″ |
| Tweeter Magnet | Neodymium |
| Transducer Impedance | LF 4Ω, HF 8Ω rated |
| Max SPL | 125 dB @1m/4Pi |
| Frequency Range (-10dB) | 52 Hz – 20 kHz |
| Frequency Range (-3dB) | 65 Hz – 20 kHz |
| Horizontal Dispersion | 110° |
| Vertical Dispersion | 60° |
| Power Rating | 1300W Peak / 650W RMS |
| AC Power Input | 100V-120V or 220V-240V |
| Cooling | Passive |
| LED Indicators | Power, Limit, Front, Signal LEDs |
| Input Impedance | 50kΩ unbalanced / 100kΩ balanced |
| Input Gain | -∞ to +36 dB |
| Crossover Frequency | 2 kHz |
| I/O | 2 × XLR Combo Inputs, Bluetooth / 1 × XLR Thru |
| Cabinet | PP + 10% Talc |
| Grille | 16GA perforated steel with cloth backing |
| Suspension / Mounting | 4 M10 points, 36mm pole socket, yoke bracket holes |
| Handles | 1 handle, cable channel on bottom |
| Net Weight | 12 kg (26.46 lbs) |
| Gross Weight | 15.2 kg (33.51 lbs) |
| Product Dimensions (H × W × D) | 587 × 332 × 305 mm (23.11″ × 13.07″ × 12″) |
| Shipping Dimensions (H × W × D) | 606 × 439 × 407 mm (23.86″ × 17.28″ × 16.02″) |
