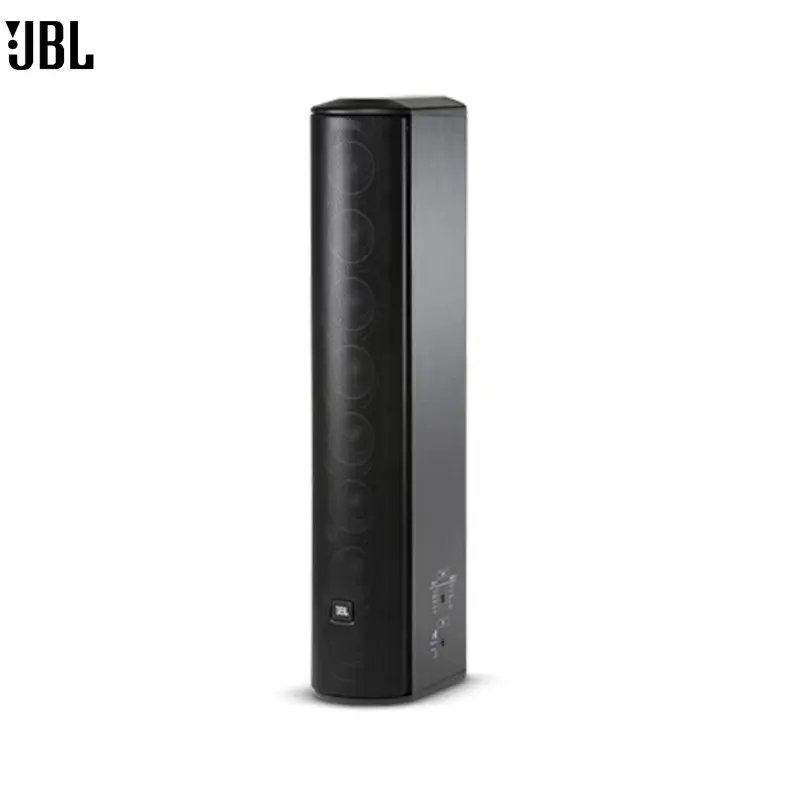

JBL CBT 50 Line Array Speaker
The JBL CBT 50 Line Array Speaker is engineered with Constant Beamwidth Technology™ to deliver clear sound across any venue. AB Audio Visual Pakistan proudly offers this powerful speaker system, ensuring unmatched performance for speech and music. Visit us today and get a free quote!
| Specifications | Details |
|---|---|
| Drivers | Eight 50 mm (2 in) Full-Range |
| Frequency Range (-10 dB) | 80 Hz – 20 kHz |
| Coverage Angle | Vertical 20° (1.5 kHz – 16 kHz, ±10°) Horizontal 150° (1 kHz – 4 kHz, ±20°) |
| Sensitivity | 93 dB (speech mode, 2 kHz – 14 kHz) 89 dB (music mode, 300 Hz – 18 kHz) |
| Impedance | 8 ohms |
| Power Rating | 150 W (600 W peak), 2 hrs 100 W (400 W peak), 100 hrs |
| Maximum SPL (1m) | Speech: 115 dB cont (121 peak) Music: 111 dB cont (117 peak) |
| Transformer Taps | 60W, 30W, 15W, (7.5W at 70V only), and 8Ω thru |
| Enclosure | Fiberglass reinforced ABS cabinet, painted aluminum grille |
| Outdoor Capability | IP-55 rated, UV, moisture & salt-spray resistant (with optional MTC-PC2) |
| Color | Black or White (-WH) |
| Insert Points | Ten M6 insert points on back panel |
| Mounting | Swivel (pan)/tilt bracket ±80° swivel, ±15° tilt; Compatible with OmniMount® 30.0 |
| Dimensions (H x W x D) | 528 × 99 × 153 mm (20.8 × 3.9 × 6.0 in) |
| Net Weight | 4.1 kg (9.0 lb) |
| Included Accessories | Swivel pan/tilt wall bracket |
| Optional Accessories | MTC-PC2 panel cover, MTC-CBT-FM1 flush bracket, MTC-CBT-SMB1 stand mount |
