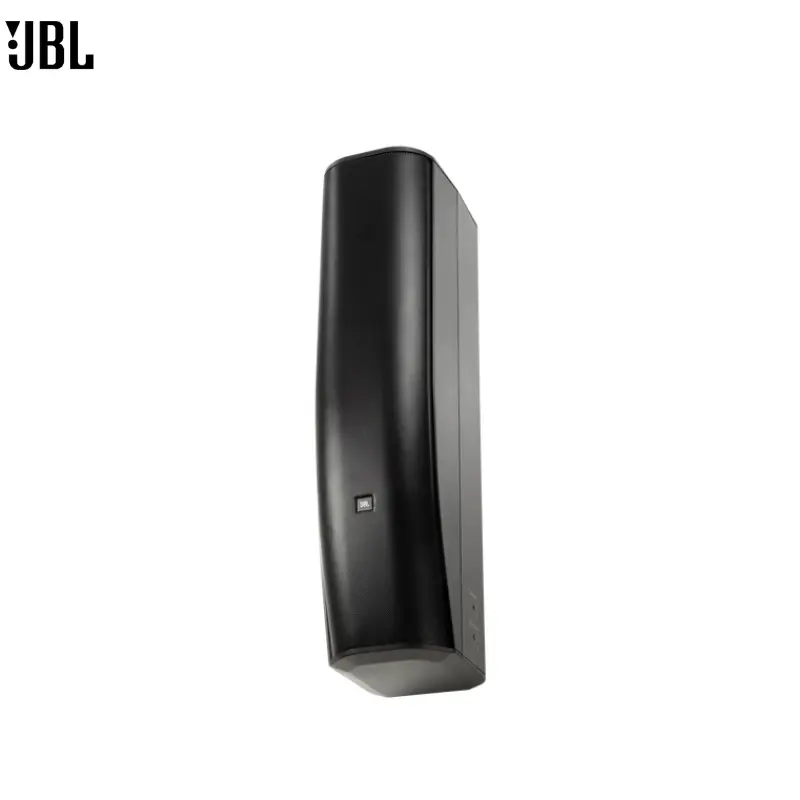

JBL CBT 70J Line Array Speaker Price in Pakistan
The JBL CBT 70J Line Array Speaker delivers powerful, focused sound using Constant Beamwidth Technology and asymmetrical coverage for even front-to-back sound levels. Available at AB Audio Visual Pakistan, the leading dealer of JBL speakers. Contact us for more details and a free quote!
| Specifications | Details |
|---|---|
| Drivers | Four 130 mm (5 in) LF, Sixteen 25 mm (1 in) HF |
| Frequency Range (-10dB) | 60 Hz – 20 kHz |
| Coverage Angle | Vertical: 25° / 45° switchable (±10°), Horizontal: 150° (±20°) |
| Sensitivity | Narrow: 98 dB speech / 93 dB music Broad: 96 dB speech / 92 dB music |
| Impedance | 8 ohms |
| Power Rating | 500W (2000W peak), 2 hrs; 350W (1400W peak), 100 hrs |
| Maximum SPL (1m) | Narrow: 125 dB (131 peak) speech / 120 dB (126 peak) music Broad: 123 dB (129 peak) speech / 119 dB (125 peak) music |
| Low Frequency Drivers | 4 × 130 mm dual magnet neodymium, coated diaphragm |
| High Frequency Drivers | 16 × 25 mm dual magnet neodymium, coated diaphragm |
| Enclosure | Fiberglass reinforced ABS cabinet, aluminum grille |
| Outdoor Capability | IP-55 rated (with optional MTC-PC2) – UV, moisture, and salt-resistant |
| Color | Black or White (-WH) |
| Insert Points | 10 × M6 swivel/tilt insert points |
| Mounting | Swivel (pan)/tilt wall bracket ±80° swivel, ±15° tilt; compatible with OmniMount® 60.0 |
| Dimensions (H × W × D) | 694 × 170 × 237 mm (27.4 × 6.7 × 9.3 in) |
| Net Weight | 9.5 kg (21 lb) |
| Included Accessories | Swivel (pan)/tilt wall bracket |
| Optional Accessories | MTC-PC2 panel cover, MTC-CBT-SMB1 stand-mount bracket, MTC-CBT-FM2 flush-mount bracket |
