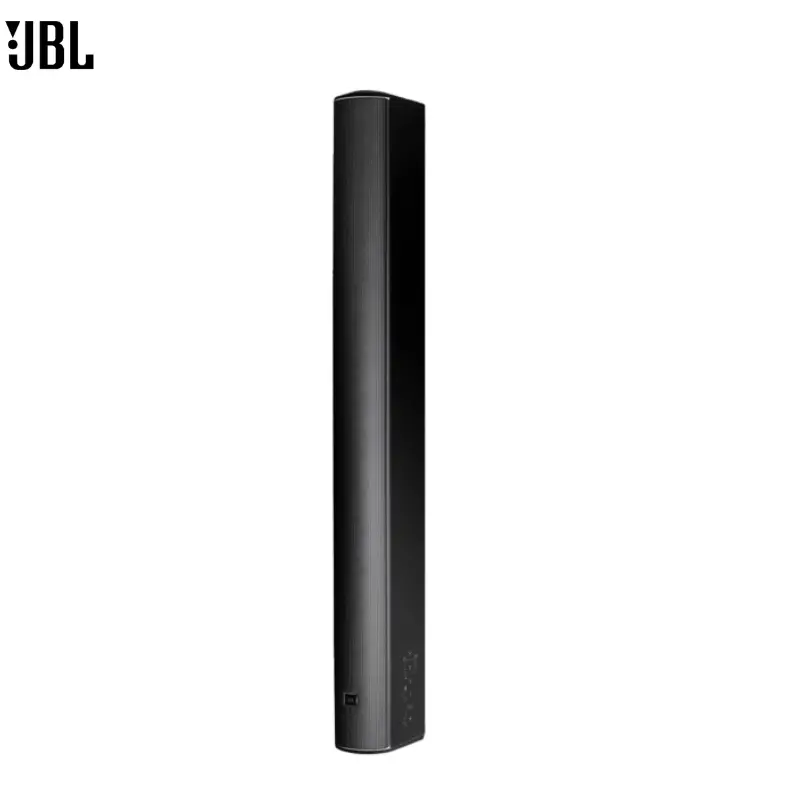

JBL CBT100LA Line Array Speaker
The best quality and world’s top brand JBL CBT100LA Line Array Speaker delivers powerful, evenly distributed sound using Constant Beamwidth Technology™ and flexible vertical coverage for crystal-clear audio projection. Available at AB Audio Visual Pakistan – your trusted dealer for genuine JBL speakers. Get a free quote today!
| Specifications | Details |
|---|---|
| Drivers | Sixteen 50 mm (2 in) Full-Range |
| Frequency Range (-10dB) | 80 Hz – 20 kHz |
| Coverage Angle | Vertical: 15° / 40° switchable (±10°), Horizontal: 150° (±20°) |
| Sensitivity | Narrow: 96 dB speech / 93 dB music Broad: 93 dB speech / 90 dB music |
| Impedance | 8 ohms (Thru mode) |
| Power Rating | 325W (1300W peak), 2 hrs; 200W (800W peak), 100 hrs |
| Maximum SPL (1m) | Narrow: 121 dB (127 peak) speech / 118 dB (124 peak) music Broad: 118 dB (124 peak) speech / 115 dB (121 peak) music |
| Transformer Taps | 120W, 60W, 30W (15W at 70V only), and 8Ω thru |
| Enclosure | Fiberglass reinforced ABS cabinet, aluminum grille |
| Outdoor Capability | IP-55 rated (with optional MTC-PC2) – UV, moisture, and salt resistant |
| Color | Black or White (-WH) |
| Insert Points | 18 × M6 insert points on back panel |
| Mounting | Swivel (pan)/tilt wall bracket ±80° swivel, ±15° tilt; OmniMount® 30.0 compatible |
| Dimensions (H × W × D) | 1000 × 98.5 × 153 mm (39.4 × 3.8 × 6.0 in) |
| Net Weight | 7.2 kg (15.8 lb) |
| Included Accessories | Swivel (pan) / tilt wall bracket |
| Optional Accessories | MTC-PC2 panel cover, MTC-CBT-FM1 flush mount bracket, MTC-CBT-SMB1 stand mount |
