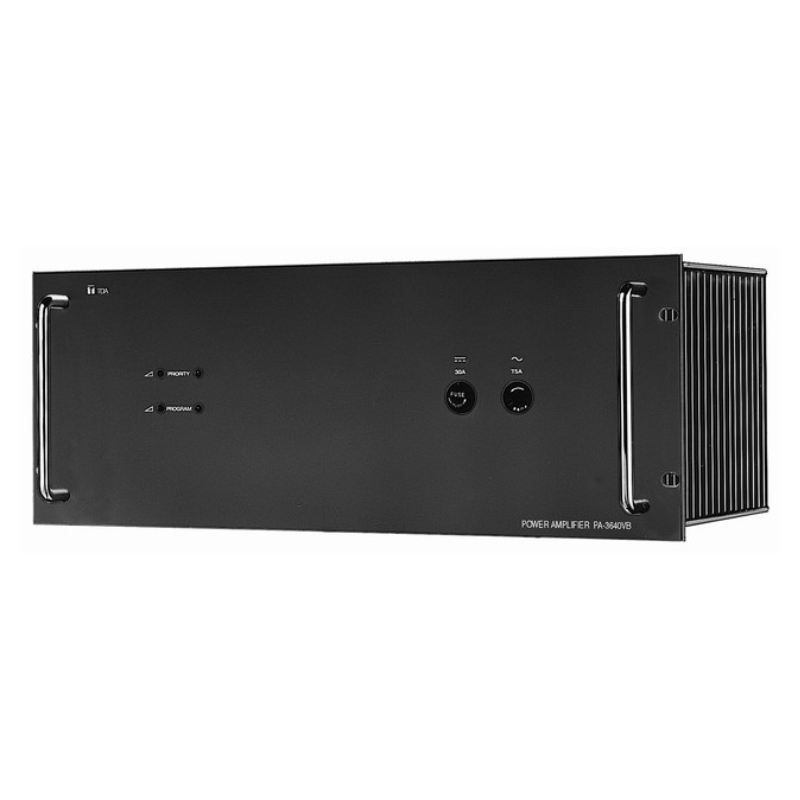

TOA PA-3640 Power Amplifier
Click to enlarge

PA-3640 360 Watt

WhatsApp For Pricing

PA-3640 360 Watt Power Amplifier

The PA-3640VB is a rack-mount Power Amplifier having Priority input/output and Program input/output.
Shorting the Priority control terminal allows the Priority input to take precedence over the Program input and
the rear-mounted Priority control output to be activated. In this case, the front-mounted Priority indicator lights
red to indicate the priority circuit is activated. The input and output for each of Priority and Program are
internally connected in parallel, permitting multiple power amplifiers to be bridge-connected to have the same
input sources.
The unit can operate on either 220 V AC or 24 V DC. The rear panel includes provision for mounting an
optional YA-1000A Fault Detection Circuit Module that functions to detect power amplifier failures.

Share it:
Features

Features

PA-3640 360 Watt Power Amplifier

Output Power 360W RMS
Frequency Response 40 ~ 16,000Hz ± 3dB (at rated 1 / 3 output)
Distortion Less than 1% at rated output, f=1kHz
Inputs 2 program inputs (parallel), 0dB, 100k Ω, balanced / 2 priority inputs (parallel), 0dB, 100k Ω, balanced.
S/N Ratio Better than 80dB
Output and Load Impedance 100V / 27.8 Ω, 50V / 6-9 Ω, (70V / 13.9 Ω)
Indicators Green LED lamp for Power / Red LED lamp for Priority.
Power Consumption 780VA at rated output.
Power Requirements 230/240V AC, 50/60Hz, 24V DC
Dimensions (W x H x D) 483 x 177 x 315.5mm
Weight 22.2kg
Color Black
