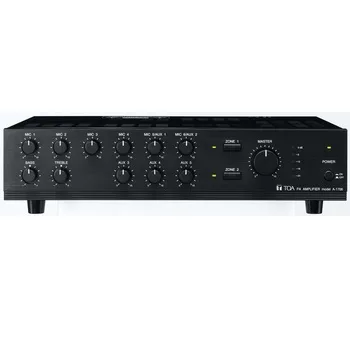

TOA A-1712 Mixer Power Amplifier

Equipped with 6 Microphone in puts and 5 AUX inputs (simultaneous use of 9 inputs possible), the TOA A-1712P Amplifier of 120W is designed to suit the following PA system applications: announcements, BGM, and broad casting in mosques, churches, large rooms, and factories.

Share it:
Features
Related Products

Features

TOA A-1712 Mixer Power Amplifier

A-1712
Power source 220 – 230 V AC, 50 / 60 Hz
Rated output 120 W
Frequency response 50 Hz – 20 kHz (±3 dB)
Distortion < 2 % (at 1 kHz, rated power)
Power / current consumption 258 W
Current consumption or less
S/N ratio 100 dB(A) (Master volume: min

)

Number of channels 1
Connectable microphones 6
Inputs Mic 1-6 -60 dBV, 600 Ohm, electronically-balanced, combined type of XLR-3-31

equivalent and phone jack
AUX 1 – 2: -20 dBV, 600 Ohm, electronically-balanced, combined type of XLR-3-31

equivalent and phone jack .
Either MIC 5 or AUX 1, and either MIC 6 or AUX 2 selectable.
AUX 3 – 4: -20 dBV, 10 kOhm, unbalanced, RCA pin jack
AUX 5: -20 dBV, 10 kOhm, unbalanced, combined type of XLR-3-31 equivalent and phone jack
PWR AMP IN: 0 dBV, 600 Ohm, unbalanced, RCA pin jack (An equalizer or other signal processor connectable between LlNE OUT and PWR AMP IN terminals)

Outputs REC: 0 dBV, 600 Ω, unbalanced, RCA pin jack
SPEAKER: 100 V (83 Ω), 4 – 16 Ω
Dimensions. 420 x 107.7 x 367 mm (W x H x D)
Finish. Steel plate, ABS resin, hairline, black
Accessory (included) Power cord x1, Terminal block cover x1, Terminal block cover mounting screw x2
