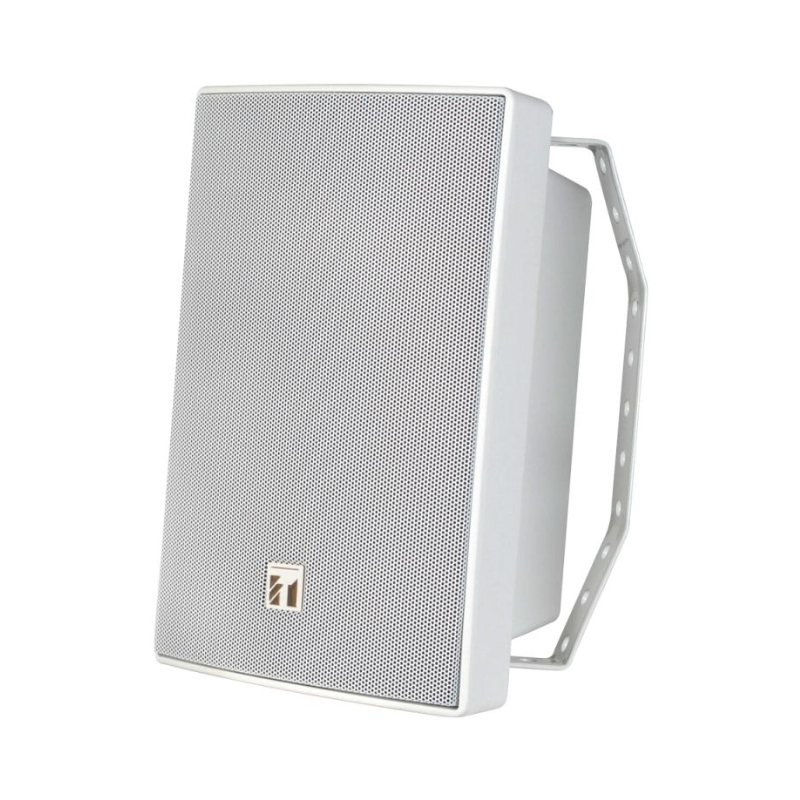

Toa BS-1030W Universal Wall Mount Speaker

WhatsApp For Pricing

TOA BS-1030W Universal Speaker

• 2-way bass reflex speaker
• Cost-effective high power PA box speaker
• Various installation options
• Low impedance (8Ω) or high impedance (100V) selectable by rotary switch
• Splashproof construction in compliance with IPX4

Share it:
Features
Related Products

Features

Enclosure
2-way bass-reflex type
Rated Input
30 W
Rated Impedance

8 Ω 100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)

70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)

Frequency response
80 Hz – 20 kHz
Speaker component
12 cm cone-type + dome-type
Option
Mounting bracket: SP-420 Applicable bracket: WCB-13W, SP-410 Applicable stand: ST-16A
Dimensions
196 (W) × 290 (H) × 150 (D) mm (unit only)
Finish

Enclosure: ABS resin, white (RAL9010 PURE WHITE),

paint Net: Surface treated steel plate, white (RAL9010 PURE WHITE),

powder coating Bracket: Surface treated steel plate,

white equivalent to RAL9010 PURE WHITE, powder coating

Sound Pressure Level
90 dB (1 W, 1 m)
Speaker Cord
2-core cabtyre cord with diameter of 6 mm
Operating Temperature
-10 ℃ to +50 ℃
Water Protection
IPX4 (can be installed vertically or horizontally.*)
Weight
2.5 kg (unit only)
Accessory
Bracket…1, Bracket mounting screw…2, Bracket mounting washer…2
