Rated input
|
6 W (100 V line), 3 W (70 V line)
|
|
Rated impedance
|
100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W)
|
|
Applicable Cable
|
600 V vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 – φ1.6 mm (equivalent to AWG 20 – 14) 7-core twisted copper wire: 0.75 – 1.25 m㎡ (equivalent to AWG 18 – 16) |
|
Frequency response
|
120 – 15,000 Hz (-20 dB)
|
|
Speaker component
|
12 cm (5″) cone-type
|
|
Wall Mounting Dimensions
|
Case front mount: 184 mm (7.24″) Fixing hole mount: 120 mm (4.72″)
|
|
Dimensions
|
173 (W) × 195 (H) × 101 (D) mm (6.81″ × 7.68″ × 3.98″) (excluding volume control)
|
|
Finish
|
Case: ABS resin, off-white Rear board: Hard board
|
|
Sensitivity
|
91 dB (1 W, 1 m)
|
|
Connection
|
Push-in connector (bridging terminal)
|
|
Attenuation Level
|
3 W: OFF, 1 (-12 dB), 2 (-6 dB), 3 (0 dB) 6 W: OFF, 1 (-13 dB), 2 (-7 dB), 3 (0 dB)
|
|
Operating Temperature
|
-10℃ to +50℃ (14゜F to 122゜F)
|
|
Weight
|
810 g (1.79 lb)
|
|
Accessory
|
Speaker mounting screw (4 × 35 (0.16″ × 1.38″)) … 2, Speaker mounting screw (4 × 16 (0.16″ × 0.63″)) … 2
|

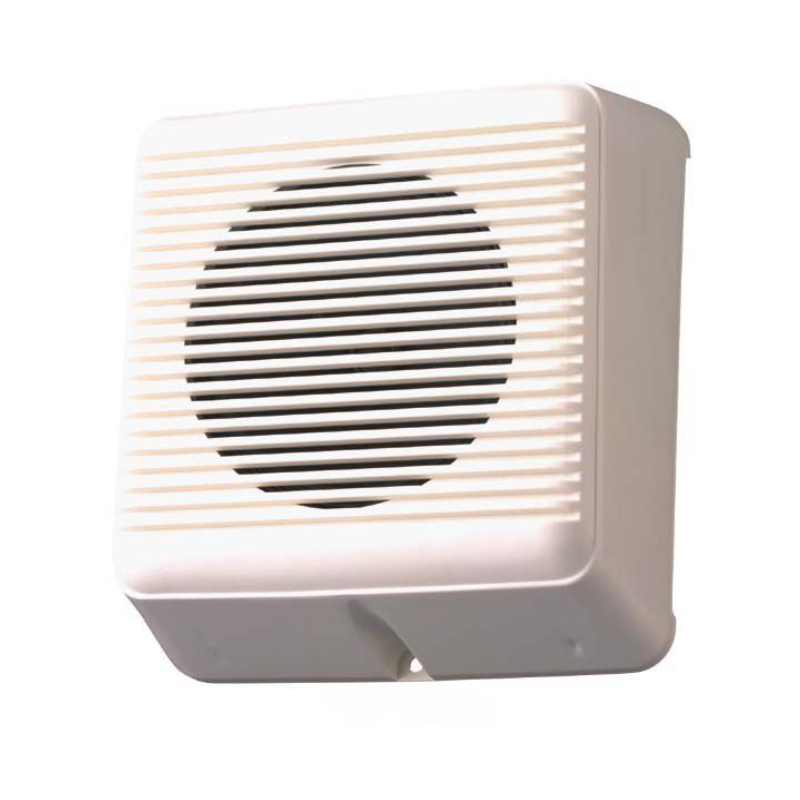

Toa BS-633AT Wall Mount Speaker
WhatsApp For Pricing
Toa BS-633AT Wall Mound Speakers
• Ideally suited for BGM and announcements
• Compact design
• Quick and easy installation
• High cost-effectiveness
• A push-in terminal allows easy cable connections and bridge wiring
• Built-in attenuator
